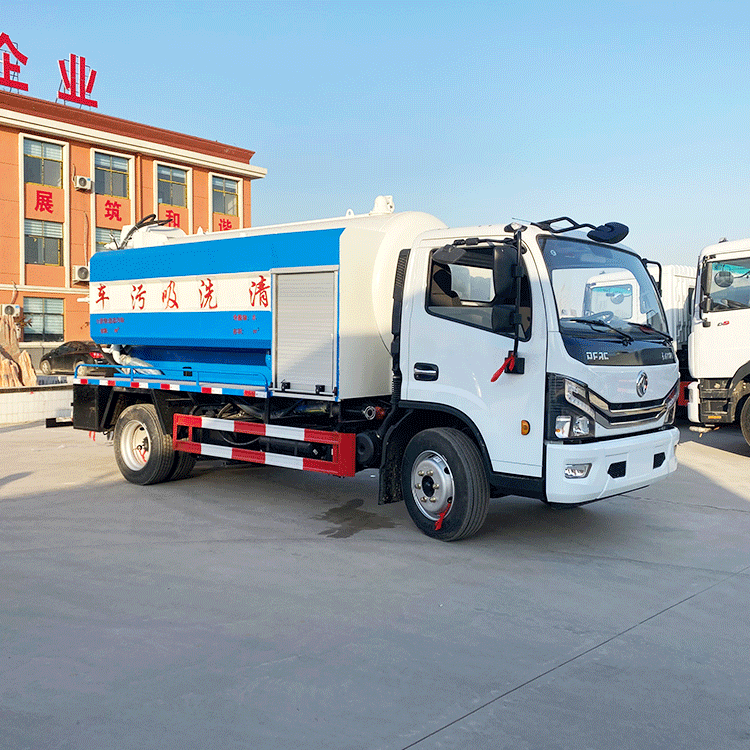

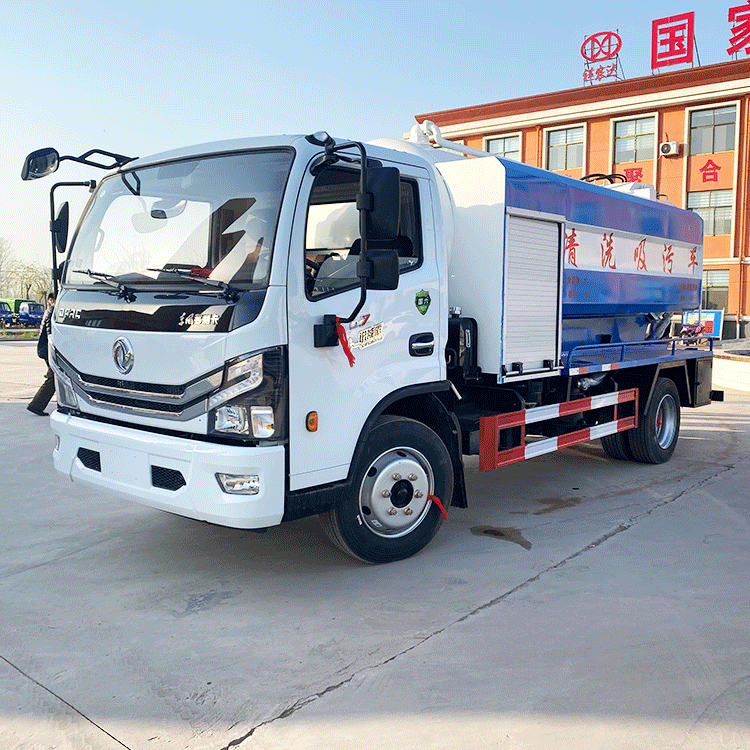

Multi Functional Cleaning And Suction Truck
Multi functional cleaning and suction truck, supporting customization, customer service available 24 hours a day！
Main products of the company: sprinkler trucks, fecal suction trucks, sewage suction
trucks, garbage trucks, high-pressure cleaning trucks,fire trucks, electric road
sweepers, garbage bins and other large and small electric sanitation equipment and
accessories, supporting customized sanitation vehicles. Welcome to visit and guide.

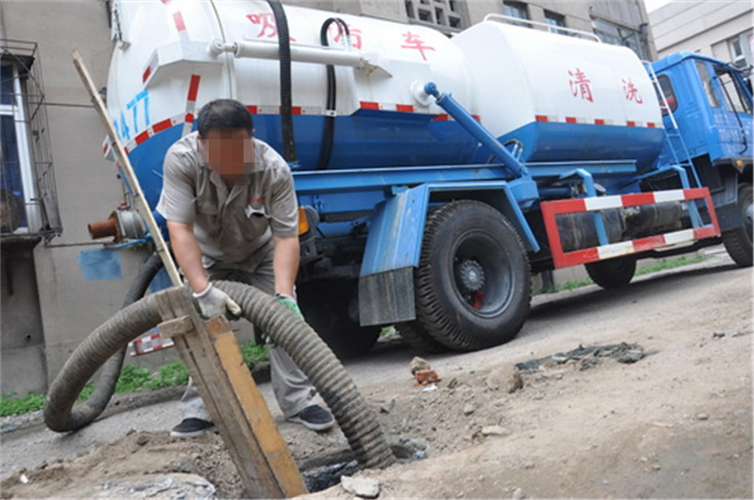

The cleaning and suction truck integrates flushing, dredging, suction, and reverse
discharge functions. Its suction part is used for the suction, transportation, and
discharge of various liquid and semi liquid media (such as septic tanks, sewers,
rainwater wells, inspection wells, sedimentation wells, sludge and stones of about
10mm), as well as sludge, feces, wastewater and other media under various ditches
and channels.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement batch | 347 (Extended) |
Product Name | cleaning and suction truck | Product model | SGW5125GQWF |
Total mass (Kg) | 11995 | Tank volume (m3) | 6.5 |
Rated load capacity (Kg) | 5500,5280 | External dimensions (mm) | 6900,7030×2200×2900,3050 |
Curb weight (Kg) | 6300,6520 | Cargo size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 3 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 21/14 | Front/rear suspension (mm) | 1130/1970,1317/1913 |
Axle load (Kg) | 4350/7645 | Maximum speed (km/h) | 103 |
remarks | This vehicle is mainly used for sewage discharge and dredging, with the main devices being tanks and pumps. The effective volume of the sewage tank is 6.5 cubic meters, the medium is suspended sewage, the density is 850 kg/cubic meter, and the external dimensions of the tank body (straight section length x diameter) (mm) are 4000 × 1400. The effective volume of the clean water tank body is 2.49 cubic meters, the transport medium is water, the density is 1000 kg/cubic meter, the load capacity is 2490 (kg), and the cross-section of the clean water tank is composed of arcs and polygons. The external dimensions (length x width x height) (mm) are 2900 × 640 × 1000. The sewage tank and the clean water tank cannot be loaded and transported at the same time. The cab is optional with the chassis. Only a 3800mm wheelbase is selected. The side rear protection is welded with Q235 material, and the rear protection is connected at the Protective section size (mm): 50 × 120, rear protective height above ground (mm): 450. ABS system manufacturer, model: Xiangyang Dongfeng Longcheng Machinery Co., Ltd, ABS/ASR-24V-4S/4M. Optional fuel tank position with chassis, optional rear dedicated device layout | ||
【Chassis Technical Parameters】 | |||
Chassis Model | EQ1125SJ8CDC | Chassis name | Truck chassis |
Trademark name | Dongfeng brand | manufacturing enterprise | Dongfeng Motor Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 3800,3950,4050,4100,4400,3600 | ||
Tire specifications | 245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR | ||
Number of steel plate springs | 8/10+7,12/12+9 | Front wheel base (mm) | 1745,1802,1820,1842,1765,1890 |
Fuel type | diesel oil | Rear wheel base (mm) | 1630,1650,1800,1720 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
YCY30165-60 Q28-130E60 D30TCIF1 CY4SK361 NV30-C6D ZD30D16-6N D25TCIF1 YCY24140-60 CY4SK161 CY4SK261 NV30-C6G D4.0NS6B185 CA4DD2-18E6-30 YCS04190-68 D40TCIF1 D4.0NS6B195 D4.0NS6B170 CY4BK261 H30-165E60 D45TCIF1 D4.0NS6B160 NV30-C6C Q28-156E60 | Guangxi Yuchai Machinery Co., Ltd Anhui Quanchai Power Co., Ltd Kunming Yunnei Power Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Light Engine Co., Ltd Kunming Yunnei Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Cummins Engine Co., Ltd China FAW Group Co., Ltd Guangxi Yuchai Machinery Co., Ltd Kunming Yunnei Power Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Anhui Quanchai Power Co., Ltd Kunming Yunnei Power Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Anhui Quanchai Power Co., Ltd | 2970 2800 2977 3856 2968 2953 2499 2360 3856 3856 2968 4000 3230 4156 4052 4000 4000 3707 3000 4461 4000 3093 2800 | 121 96 125 125 120 120 110 103 135 125 115 136 132 140 135 143 125 100 120 162 118 120 115 |
