High pressure cleaning suction truck
Cleaning and suction trucks are specialized sanitation vehicles used for collecting, transferring, and transporting sludge and sewage, which can effectively avoid secondary pollution. Its working principle is to use the vacuum negative pressure principle to suck feces and liquid waste into the vehicle storage container through the vehicle mounted vacuum pump, realizing the containerization of feces collection and reducing secondary pollution.
Cleaning and suction trucks are suitable for various scenarios, including:

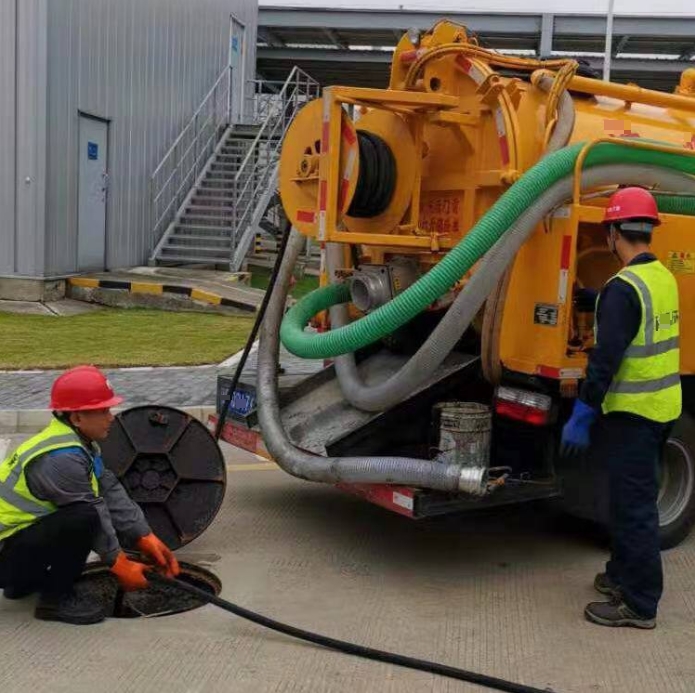

Sewer cleaning: The cleaning the suction truck is particularly suitable for the suction, transportation, and discharge of sediment in the sewer, especially for larger objects such as mud, silt, stones, bricks, etc.
Industrial application: The cleaning and suction truck is suitable for collecting and transporting sludge and wastewater in industrial plants, ports, docks, and other places.
Emergency response: Cleaning the suction truck can be used for emergency response to sudden environmental pollution accidents.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 389 |
Product Name | cleaning the suction truck | Product model | SGW5161GQWBJ6 |
Total mass (Kg) | 1600 | Tank volume (m3) | 12 |
Rated load capacity (Kg) | 7325 | Dimensions (mm) | 7600,7550,8050×2500,2450×3450,3300 |
Curb weight (Kg) | 8480 | Cargo compartment size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 3 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 20/12,20/10 | Front suspension/rear suspension (mm) | 1235/2165,1260/2140 1235/2115,1260/2090 |
Axle load (Kg) | 5400/10600 | Maximum speed (Km/h) | 80 |
remarks | This vehicle is mainly used for sewage discharge and dredging, with the main devices being tanks and pumps There are a total of 3 tanks, including a sewage tank in the middle and clear water tanks on both sides The total volume of the sewage tank body is 8.5 cubic meters, the effective volume of the sewage tank body is 8.1 cubic meters, the medium is liquid waste, the density is 900 kg/cubic meter, and the external dimensions of the tank body (straight section length x diameter) (mm) are 4200 × 16004650 × 1600; The total volume of the clean water tank is 4.23 cubic meters, the effective volume of the clean water tank is 4.2 cubic meters, the medium is water, the density is 1000 kg/cubic meter, the cross-section of the clean water tank is composed of arcs and polygons, and the external dimensions (length × width × height) (mm) are 3850 × 700 × 1100, 4300 × 650 × 1100. Sewage tanks and clean water tanks cannot be loaded and transported at the same time The ABS model is CM4XL-4S/4M, and the manufacturer is Guangzhou Ruili Kemi Automotive Electronics Co., Ltd Only 4200mm wheelbase modification is used Only WP3NQ160E61 and WP4.1NQ190E61 engines are available as options The side protection material is Q235, and the connection method is welding connection The rear protection material is Q235, and the connection method is bolt connection. The height of the rear protection from the ground is 460mm, and the cross-sectional size is 120mm × 60mm New front grille and front logo are optional with the chassis Optional appearance structure style. | ||
【Chassis Technical Parameters】 | |||
Chassis Model | BJ5164JQZHPDD-01 | Chassis name | Truck chassis |
Trademark name | Futian brand | manufacturing enterprise | Beiqi Foton Motor Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 4200,4500,3700,3900 | ||
Tire specifications | 10.00R20 18PR,9.00R20 16PR | ||
Number of steel plate springs | 10/12+9 | Front wheel base (mm) | 1728,1740,1760,1780 |
Fuel type | diesel oil | Rear wheel base (mm) | 1760,1780,1728,1740 |
Emission standards | GB17691-2018国Ⅵ | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
WP3NQ160E61 WP4.1NQ190E61 D30TCIF1 | Weichai power company limited Weichai power company limited Kunming Yunnei Power Co., Ltd | 4088 | 190 |
