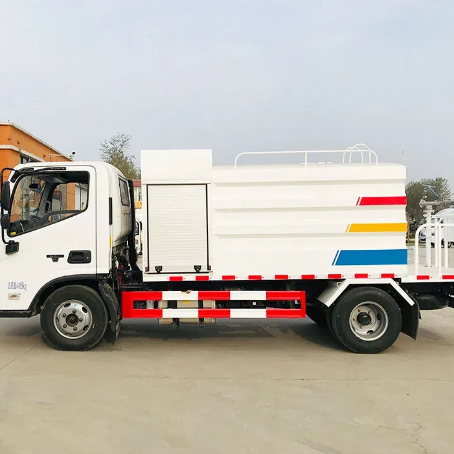

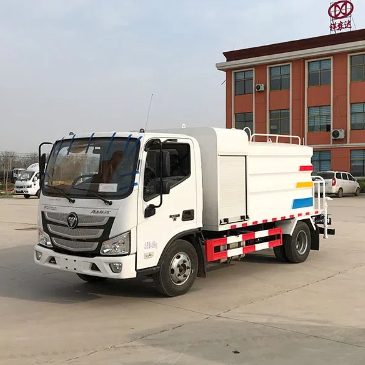

Garden Greening Sprinkler Truck

The whole vehicle of the garden greening sprinkler truck is designed to be lightweight and has reliable load-bearing performance. The tank has a large capacity and can operate continuously for a long time.

Contact Now E-Mail Telephone
Product Details

All functional devices of the garden greening sprinkler can be operated and used

independently, without affecting the use of other sprinkler devices.

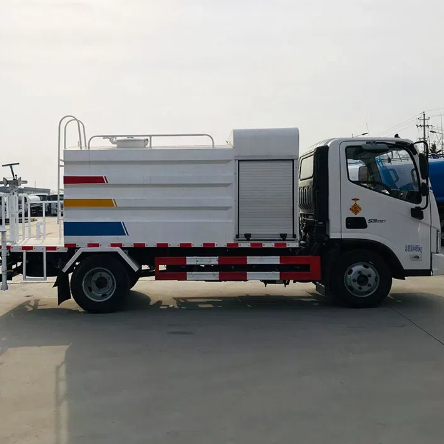

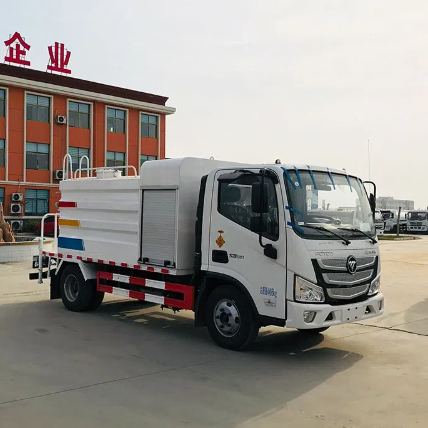

Garden Greening Sprinkler Truck.jpgGarden Greening Sprinkler Truck.jpg

Garden Greening Sprinkler Truck.jpgGarden Greening Sprinkler Truck.jpg


【Technical parameters of the entire vehicle】

Product trademark

Xiangnongda brand

Announcement batch

344 (Change)

Product Name

multifunctional dust suppression vehicle

Product model

SGW5120TDYF

Total mass (Kg)

11995

Tank volume (m3)


Rated load capacity (Kg)

6050

External dimensions (mm)

7050×2180×2800

Curb weight (Kg)

5750

Cargo size (mm)

××

Rated passenger capacity (person)


Total mass of quasi trailer (Kg)


Cab capacity (persons)

3

Maximum load capacity of saddle (Kg)


Approach Angle/Departure Angle (degrees)

20/11

Front/rear suspension (mm)

1130/2120

Axle load (Kg)

3535/8460

Maximum speed (km/h)

105

remarks

The main specialized devices of this vehicle are dust suppression device, installed power device and operating system, used for urban environmental cleaning operations. The vehicle only uses wheelbase mm of 3800. ABS system controller model/manufacturer: ABS-E/WABCO Automotive Control System (China) Co., Ltd., ABS-VI · E/Guangzhou Ruili Kemi Automotive Electronics Co., Ltd. The side and rear protective materials are all Q235, and the connection method with the vehicle is welding. Rear protection: the ground clearance height is 400mm, and the section is 120mmX50mm

【Chassis Technical Parameters】

Chassis Model

BJ1128VGJEA-FK

Chassis name

Truck chassis

Trademark name

Futian brand

manufacturing enterprise

Beiqi Foton Motor Co., Ltd

Number of axes

2

Number of tires

6

Wheelbase (mm)

3360,3800

Tire specifications

8.25R20 16PR,9R22.5 14PR

Number of steel plate springs

9/8+6,3/4+3

Front wheel base (mm)

1705,1710,1730,1770,1790

Fuel type

diesel oil

Rear wheel base (mm)

1615,1630,1800

Emission standards

GB3847-2005,GB17691-2018 National VI

Engine model

Engine manufacturing enterprises

Emissions(ml)

Power (Kw)

F3.8NS6B156

D30TCIF1

Beijing Futian Cummins Engine Co., Ltd

Kunming Yunnei Power Co., Ltd

3800

2977

115

125

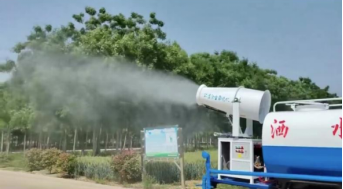

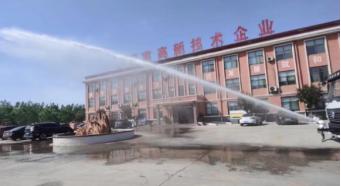

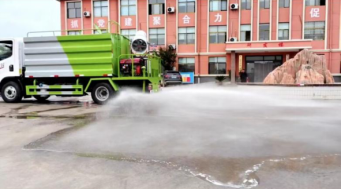

Usage scenarios.pngUsage scenarios.png

Usage scenarios.pngUsage scenarios.png

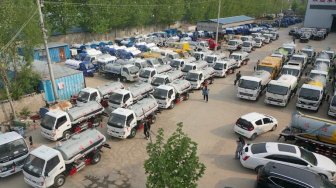

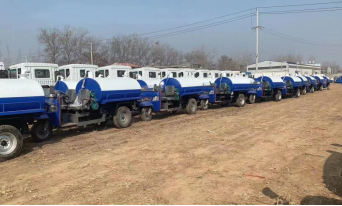

Factory photos.pngFactory photos.png

Factory photos.pngFactory photos.png

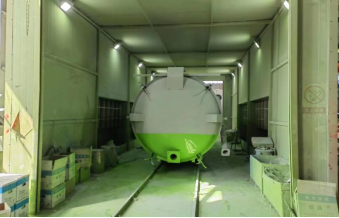

Workshop photos.pngWorkshop photos.png

Workshop photos.pngWorkshop photos.png
