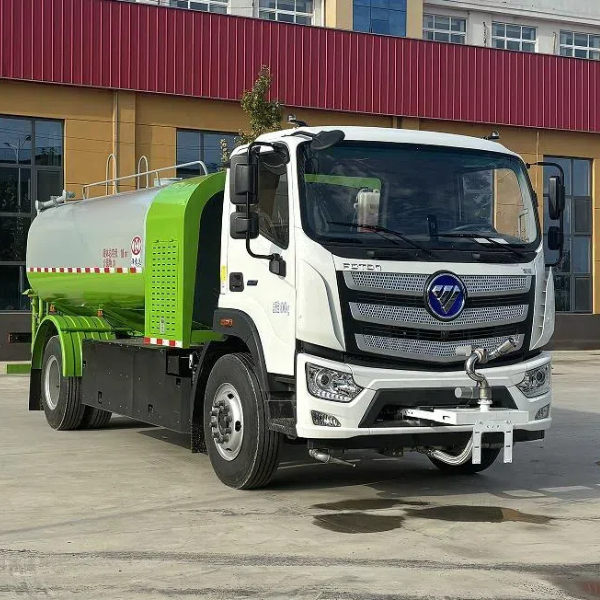

New Energy Pure Electric Green Spraying Vehicle
1. Pure electric drive, energy-saving and environmentally friendly, reliable battery.
2. The elliptical water tank, combined with the vehicle's curved flow line, is simple and elegant
3. The industry leading spray assembly has a long range and is produced by a large factory with guaranteed quality.
4. Install a low water level alarm and automatic waterless shutdown protection function on the vehicle.
5. Dual mode homework and reverse monitoring, keeping track of the vehicle's rear status at all times.
6. The vehicle is equipped with functions such as low-pressure cleaning.
New energy electric green sprinkler truck:
1. Pure electric drive, energy-saving and environmentally friendly, reliable battery. The chassis and upper part are both driven by electric motors, which comply with the new energy vehicle announcement, recommended catalog, and tax exemption preferential policies. All dedicated devices are driven by motors, with high efficiency, fast power response, and low operating noise.

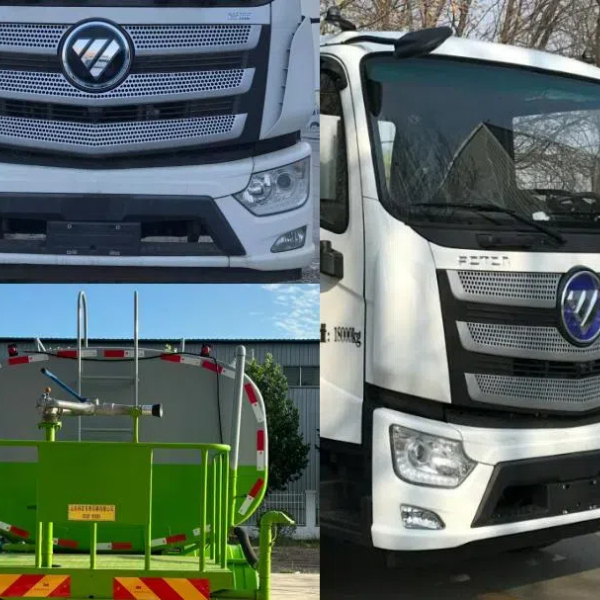

2. The elliptical water tank, combined with the vehicle's curved flow line, is simple and elegant. The elliptical tank body fits the overall design of the vehicle, simple, smooth, elegant and generous. The tank body is made of low-alloy steel, with a large capacity and durability.
3. The dedicated device adopts a vehicle grade intelligent motion controller and an efficient liquid cooled three in one motor control controller. Installing a CAN bus intelligent motion controller achieves miniaturization, intelligent control, simple wiring, and high protection level. The three in one motor control controller adopts CAN bus control, integrating complete protection mechanisms such as over temperature protection, over-current protection, abnormal speed protection, voltage overload and undervoltage protection, leakage protection, fault alarm, etc., to ensure the safe use of the entire vehicle.
4. The industry leading spray assembly is produced by a large factory with quality assurance. The spray adopts the industry leading brand, and its workmanship quality and product performance are at the industry benchmark level, with beautiful appearance. The product has been verified by the industry for many years, and is stable in use, which is trusted by users. The spray sprays 20-250 μ m fine water mist. The light fine water mist, together with the powerful fan, can achieve high shooting height and long range. It can effectively neutralize the fine dust in the haze and achieve effective haze reduction.
5. Install a low water level alarm and automatic waterless shutdown protection function on the vehicle.
The water tank is equipped with a water shortage alarm function. When the water quantity is insufficient, the cab will give an alarm, and the functions of the spray can be automatically turned off to prevent the water pump from being damaged due to water shortage; The spray is equipped with emergency stop, low pressure protection and other safety functions.
6. Dual mode homework and reverse monitoring, keeping track of the vehicle's rear status at all times.
The rear monitoring screen of the vehicle is equipped with dual cameras, which can be switched by an electric AV button during operation. The fog cannon is displayed in the working state during operation, and it automatically switches to the reverse state when reversing, displaying the rear image of the vehicle to increase driving comfort. The monitoring screen adopts a slanted design towards the driver's direction.
7. The vehicle is equipped with functions such as low-pressure cleaning.

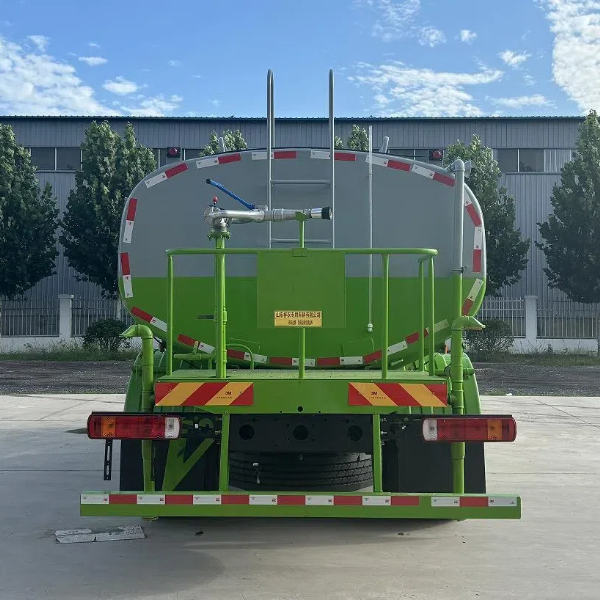

The vehicle is also equipped with a low-pressure water pump, which has cleaning functions such as front duckbill watering, rear hedge watering, and rear lump watering, with a wide range of usage modes.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Announcement batch | CB038683100 | |
Product Name | 18000 | Product model | 386 |
Total mass (Kg) | 9590,9525 | Tank volume (m3) | 8050,8350,8500,8650,8670,8970x2550x3200,3250 |
Rated load capacity (Kg) | 8280 | External dimensions (mm) | ×× |
Curb weight (Kg) | Cargo size (mm) | ||
Rated passenger capacity (person) | 2,3 | Total mass of quasi trailer (Kg) | |
Cab capacity (persons) | 14/11,14/10,17/10,17/9 | Maximum load capacity of saddle (Kg) | ×× |
Approach Angle/Departure Angle (degrees) | 1270/2280,1270/2580,1270/2730,1270/2880 | Front/rear suspension (mm) | 90 |
Axle load (Kg) | This vehicle is mainly used for urban and rural landscaping and road spraying; The main devices are tanks and spraying devices Total tank capacity: 10 cubic meters; The effective volume of the tank is 9.5 cubic meters; Dimensions of the tank body (length x long axis x short axis) (mm): 4000x2450x1500. The side protection is replaced by a battery cover made of Q235 carbon steel and bolted together; The rear protection material is Q235 carbon steel, and the connection method is bolt connection. The cross-sectional size of the rear protection (mm) is 120x60, and the height of the rear protection above the ground (mm) is 470; ABS model/manufacturer: ABS-E/ZF Commercial Vehicle Systems (Qingdao) Co., Ltd; Battery type: lithium iron phosphate battery, energy storage device individual production enterprise: CATL New Energy Technology Co., Ltd., energy storage device assembly production enterprise: CATL New Energy Technology Technology Co., Ltd; Motor model/manufacturer: TZ375XSSF-SZF611/Shaanxi Fast Gear Co., Ltd., rated power: 105kW, peak power: 175kW The corresponding relationship between length extension/front and rear suspension is (mm): 8050/0/1270/22808350/0/1270/25808500/0/1270/2730. Optional direct power supply ETC on-board device Optional front electronic water cannon, optional front without electronic water cannon, optional cab logo with chassis, optional rear platform style. | ||
【Chassis Technical Parameters】 | |||
Chassis Model | BJ1186EVJA5 | Chassis name | Truck chassis |
Trademark name | Futian brand | manufacturing enterprise | Foton Motor Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 4500 | ||
Tire specifications | 10.00R20 18PR | ||
Number of steel plate springs | 10/8+8 | Front wheel base (mm) | 2008 |
Fuel type | Pure electric | Rear wheel base (mm) | 1860 |
Emission standards | Pure electric | ||
Engine model | Emissions(ml) | Power (Kw) | |
TZ375XSSF-SZF611 | 175 |
