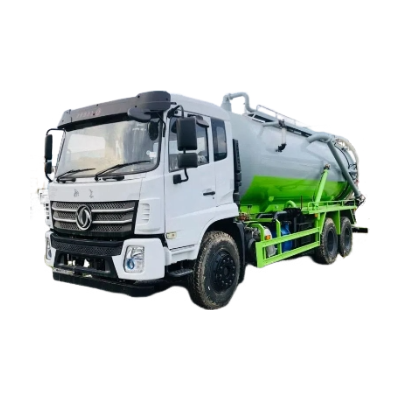

12 Cubic Meter Sewage Suction Truck
The tank can be opened backwards and self dumping on both sides. The dirt inside the tank can be directly dumped through the back cover, which has the characteristics of high vacuum degree (greater suction than the suction truck), large tonnage, high efficiency, and wider application.
This 12 cubic meter sewage suction truck is mainly used to clean urban sewers, sediment in pipelines, and
dredge dead corners of mud ditches. It can also be used to clean industrial drainage pipelines, walls, etc. It can
also be used for watering, transporting water, and flushing highways. In emergency situations, it can be used
for firefighting. Using an external power source saves costs, reduces vehicle wear and tear, and eliminates
exhaust emissions during use, which is beneficial for environmental protection. High safety level, over 90% of
the cleaning work is completed by machinery, with minimal manual labor. Scientific process control ensures
the safety of the work site and personnel.
The upper tank has a capacity of 11.16 square meters and is made of high-quality carbon steel with anti-corrosion
treatment inside. The cylindrical tank is resistant to pressure and deformation, with a self flowing port at the tail.
The tank can be lifted by hydraulic pressure, and the back cover can be opened by hydraulic pressure. It is
equipped with a pollution window, hand washing device, well-known brand vacuum pump side mounted power
take-off, water vapor separator, anti overflow valve, etc. The configuration inside the driver's cab is also good.
The steering wheel adopts a four pair structure, and many function keys are integrated on it. This makes it much
more convenient for the driver to operate the function keys while driving, and also improves driving safety.
The driver's cabin is also equipped with a driving recorder as standard. We all know that porcelain collision occurs
frequently during driving, so with a driving recorder, there is no need to worry about porcelain collision. The
driver's seat is also a highlight, and airbag shock absorption is currently the most comfortable form of driver's
seat, which can reduce the driver's fatigue during driving and protect driving safety.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 337 |
Product Name | Sewage suction truck | Product model | SGW5185GXWF |
Total mass (Kg) | 18000 | Tank volume (m3) | 12.28 |
Rated load capacity (Kg) | 9605,9540 | Dimensions (mm) | 8250×2500×3550 |
Curb weight (Kg) | 8265 | Cargo compartment size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 2,3 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 23/15 | Front suspension/rear suspension (mm) | 1475/2075,1515/2035,1320/2230 |
Axle load (Kg) | 6500/11500 | Maximum speed (Km/h) | 89 |
remarks | Special functions and device description: The vehicle's dedicated device includes a tank and pump, mainly used for sewage sludge suction, cleaning, etc; Optional component name and related description: Optional cab installed with chassis; Other instructions: This car only selects a wheelbase of 4700mm; ABS production enterprises: Dongke Knorr Bremse Commercial Vehicle Braking System (Shiyan) Co., Ltd., Zhejiang Wan'an Technology Co., Ltd; The material used, connection method, and main dimensional parameters of the rear protective device (cross-sectional dimensions and ground clearance): Q235 is used for the side rear protective material, and the connection method with the vehicle is welding The height of the rear defense above the ground is 450mm, and the cross-section is 120mm x 50mm; ABS model: 3631010-C2000, VIE ABS-II; Effective volume of tank body (cubic meter), external dimensions of tank body (mm): Effective volume of tank body: 12.28 cubic meters, dimensions of tank body: (straight section length x diameter) (mm): 4600 x 1800; | ||
【Chassis Technical Parameters】 | |||
Chassis Model | EQ1180GSZ6DJ | Chassis name | Truck chassis |
Trademark name | Dongfeng brand | manufacturing enterprise | Dongfeng Commercial Vehicle Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 3950,4500,4700,5100,3600,5600,6250,3800,4200 | ||
Tire specifications | 10.00-20 18PR,10.00R20 18PR,275/80R22.5 18PR,11.00R20 18PR | ||
Number of steel plate springs | 8/10+8,11/11+10 | Front wheel base (mm) | 1800,1860,1910,1940,1965,1985 |
Fuel type | diesel oil | Rear wheel base (mm) | 1700,1750,1800,1860,1880 |
Emission standards | GB3847-2005,GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
B6.2NS6B210 YCS06200-60 YCS06220-60 D4.0NS6B195 WP4.6NQ220E61 B6.2NS6B230 DDi50E220-60 WP6H245E61 YCS04180-68 WP3NQ160E61 YCS04200-68 | Dongfeng Cummins Engine Co., Ltd Guangxi Yuchai Machinery Co., Ltd Guangxi Yuchai Machinery Co., Ltd Dongfeng Cummins Engine Co., Ltd Weichai power company limited Dongfeng Cummins Engine Co., Ltd Dongfeng Commercial Vehicle Co., Ltd Weichai power company limited Guangxi Yuchai Machinery Co., Ltd Weichai power company limited Guangxi Yuchai Machinery Co., Ltd | 6200 6234 6234 4000 4580 6200 5000 6220 4156 2970 4156 | 154 147 162 143 162 169 162 180 132 118 147 |
Accompanying accessories:
1. One volume of cargo truck manual.
2. A set of tools accompanying the vehicle.
3. One ball valve booster rod (convenient for drivers to operate normally).
