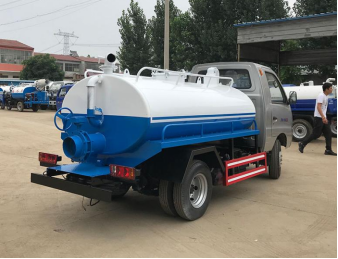

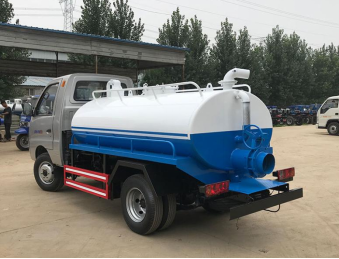

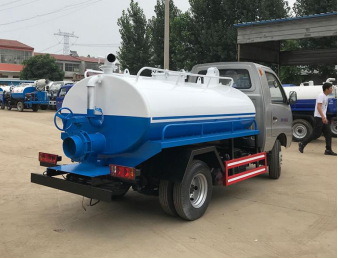

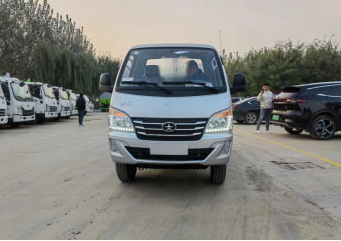

Light Fecal Suction Truck
It is suitable for municipal sanitation, large, medium, and small industrial and mining enterprises, residential areas, schools, septic tanks, livestock farms, urban pipeline cleaning and drainage, factory sludge cleaning, etc. In emergency situations, it can transport clean water for firefighting.

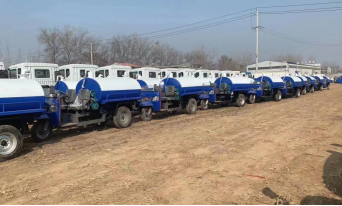

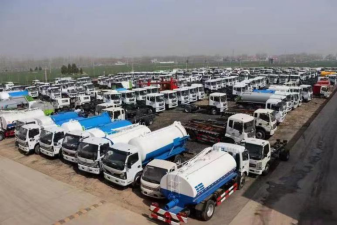

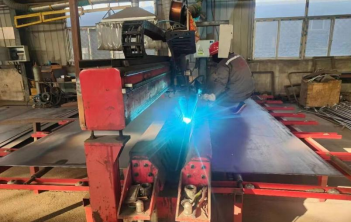

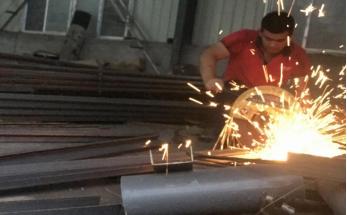

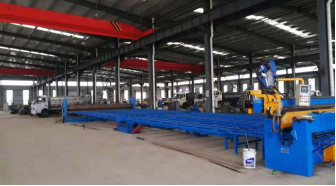

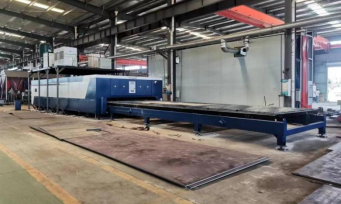

Every step from material selection to factory production of light fecal suction
trucks is strictly controlled.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement batch | 371 |
Product Name | Product model | SGW5030GXEYT6 | |
Total mass (Kg) | 3495 | Tank volume (m3) | 2.17 |
Rated load capacity (Kg) | 1655 | External dimensions (mm) | 4950×1780×1940 |
Curb weight (Kg) | 1710 | Cargo size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 2 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 29/28 | Front/rear suspension (mm) | 925/1325 |
Axle load (Kg) | 1230/2265 | Maximum speed (km/h) | 110 |

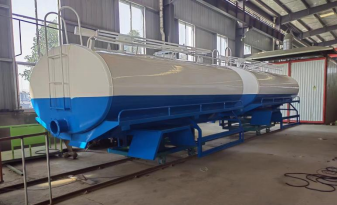

remarks | The purpose of this vehicle is to suck feces, with the main equipment being a tank and a pump. Transport medium: liquid waste, density: 800 kg/cubic meter. Total tank volume: 2.17 cubic meters, effective tank volume: 2.06 cubic meters, tank dimensions (length x long axis x short axis) (mm): 2580 × 1340 × 940. The ABS system model is YF9, and the manufacturer is Shandong Yuanfeng Automotive Electronic Control System Co., Ltd. Only the 2700mm wheelbase chassis modification is used. | ||
【Chassis Technical Parameters】 | |||
Chassis Model | YTQ1031WHQ301 | Chassis name | Truck chassis |
Trademark name | Black Panther Brand | manufacturing enterprise | Weichai New Energy Commercial Vehicle Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 2700,3030 | ||
Tire specifications | 185R14LT 6PR,175R14LT 8PR | ||
Number of steel plate springs | 3/5 | Front wheel base (mm) | 1285 |
Fuel type | gasoline | Rear wheel base (mm) | 1244,1444 |
Emission standards | GB18352.6-2016 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
DAM16KL
| Harbin Dong'an Automotive Power Co., Ltd | 1597
| 90 |
