Small Fecal Suction Truck
Small Fecal Suction Truck, mainly used as a specialized vehicle for cleaning and cleaning in environments such as septic tanks, sewage ditches, and sewers.
Small Fecal Suction Truck

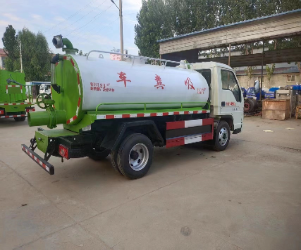

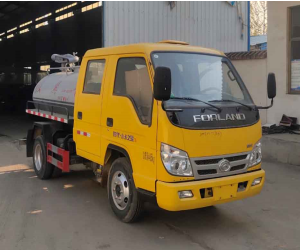

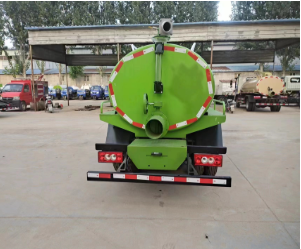

The whole vehicle picture is shown below
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement batch | 331 |
Product Name | Fecal suction truck | Product model | SGW5047GXEF |
Total mass (Kg) | 4495 | Tank volume (m3) | 2.06 |
Rated load capacity (Kg) | 1570 | External dimensions (mm) | 5650×1900×2300 |
Curb weight (Kg) | 2600 | Cargo size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 2+3 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 20/14 | Front/rear suspension (mm) | 1130/1670 |
Axle load (Kg) | 1617/2878 | Maximum speed (km/h) | 105 |
remarks | This vehicle is used for suction and transportation of feces. The main devices are a tank and a pump. The effective volume of the tank is 2.06 cubic meters, the medium is liquid waste, the density is 800 kg/cubic meter, and the external dimensions of the tank (mm) are long axis X short axis X tank length (1300X950X2480). The side rear protection is welded and connected with Q235 material, and the cross-sectional size of the rear protection is 50 × 100. The height of the rear protection above the ground is 420 mm. The ABS model is CM4XL-4S/4M, and the manufacturer is Guangzhou Ruili Kemi Automotive Electronics Co., Ltd. Only a 2850mm wheelbase is selected. A new front grille and logo are optional with the chassis, and a new front bumper is optional | ||
【Chassis Technical Parameters】 | |||
Chassis Model | BJ1045V9AB5-54 | Chassis name | Truck chassis |
Trademark name | Futian brand | manufacturing enterprise | Beiqi Foton Motor Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 2850,3050,3360 | ||
Tire specifications | 6.50R16LT 10PR | ||
Number of steel plate springs | 7/7+5,7/4+3,7/5+2,3/5+2,2/3+2 | Front wheel base (mm) | 1495,1415 |
Fuel type | diesel oil | Rear wheel base (mm) | 1435 |
Emission standards | GB3847-2005,GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions(ml) | Power (Kw) |
Q23-115E60 Q23-115C60 | Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd | 2300 2300 | 85 85 |
