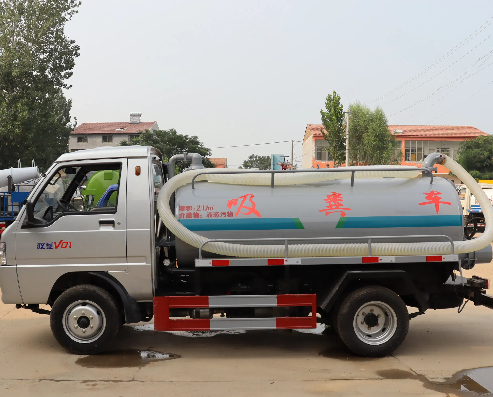

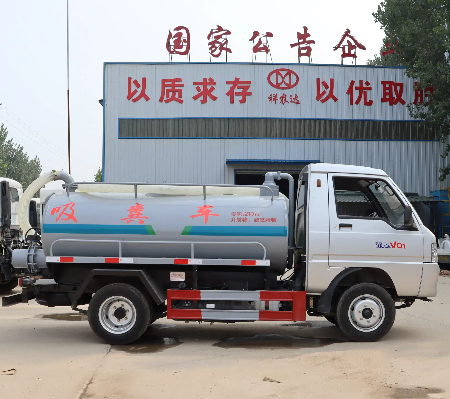

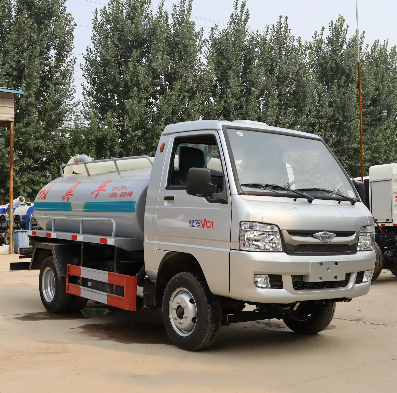

Small Gasoline Suction Truck
The vacuum pump has a compact structure, reliable working balance, and uniform flow rate,
Strong suction, stable and reliable operation, simple operation, and easy maintenance.
The main features of small fecal suction trucks are:
1、Strong suction: The vacuum pump can generate strong suction and easily suck up sewage and
substances. A well matched vehicle can basically fill a can in 3-8 minutes.
2、Not picky about food: When the vacuum pump is suctioning, sewage and dirt do not pass through
the pump body, and debris with a diameter less than 80 millimeters can be suctioned. As long as it is a
flowable liquid, such as mud, sewage, and manure, it can be suctioned by a suction truck.

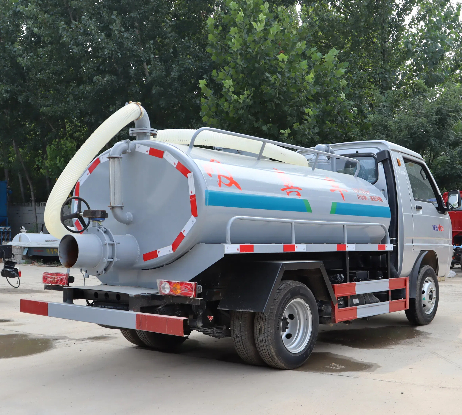

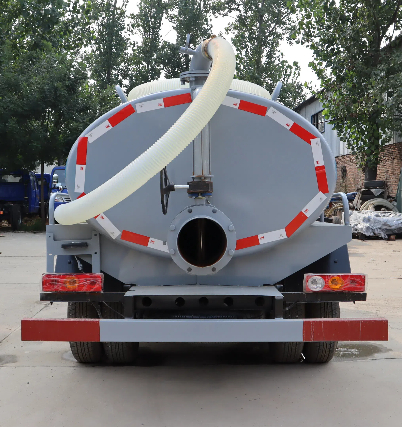

3、Fast discharge: The tail is equipped with a large-diameter self flow valve, with a typical discharge
diameter of 100-200 millimeters. It can also be pressurized with gas for faster discharge.
4、Easy to operate: Simply turn on the vacuum pump to pump, close the three-way valve to stop, and
open the discharge valve to discharge. The operation is simple, convenient, and reliable.
5、Easy maintenance: Just regularly check the airtightness of the tank body, valve body, and pipeline.
Technical guidance parameters (for reference only)：
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement batch | 347 (Extended) |
Product Name | Product model | SGW5030GXEBJ6 | |
Total mass (Kg) | 3495 | Tank volume (m3) | 2.17 |
Rated load capacity (Kg) | 1660 | External dimensions (mm) | 4750×1780×1900,1845 |
Curb weight (Kg) | 1705 | Cargo size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 2 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 24/20 | Front/rear suspension (mm) | 895/1289 |
Axle load (Kg) | 1330/2165 | Maximum speed (km/h) | 100,110 |
remarks | The engine DAM15KL and DAM16KL correspond to a maximum speed of 100km/h and 110km/h. The vehicle is used for suction and transportation of feces. The main devices are tanks and pumps. The effective volume of the tank is 2.17 cubic meters, the medium is liquid waste, and the density is 800 kg/cubic meter. The external dimensions of the tank are (mm): long axis X short axis X tank length (1400X900X2580) The ABS control method is dual parameter control, and the ABS model is YF9. The ABS manufacturer is Wuhan Yuanfeng Automotive Electronic Control System Co., Ltd. The front panel cover is optionally installed with the chassis. | ||
【Chassis Technical Parameters】 | |||
Chassis Model | BJ1030V5JV3-51 | Chassis name | Truck chassis |
Trademark name | Futian brand | manufacturing enterprise | Beiqi Foton Motor Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 2566 | ||
Tire specifications | 175R14LT 8PR | ||
Number of steel plate springs | 3/5 | Front wheel base (mm) | 1290 |
Fuel type | gasoline | Rear wheel base (mm) | 1225,1245 |
Emission standards | GB18352.6-2016 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
DAM15KL DAM16KL | Harbin Dong'an Automotive Power Co., Ltd Harbin Dong'an Automotive Power Co., Ltd | 1498 1597 | 85 90 |

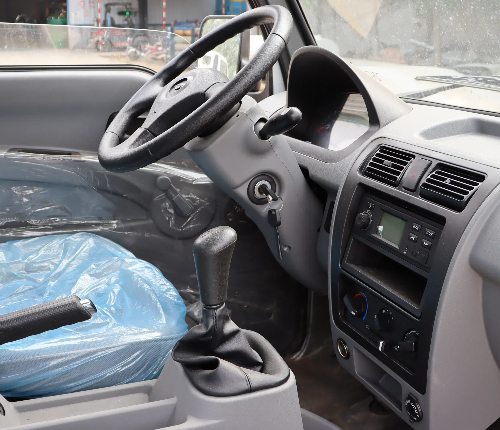

Spacious driver's cabin:
Small gasoline suction truck, high-end cab, can be customized according to your needs.
Clever fecal suction port design：

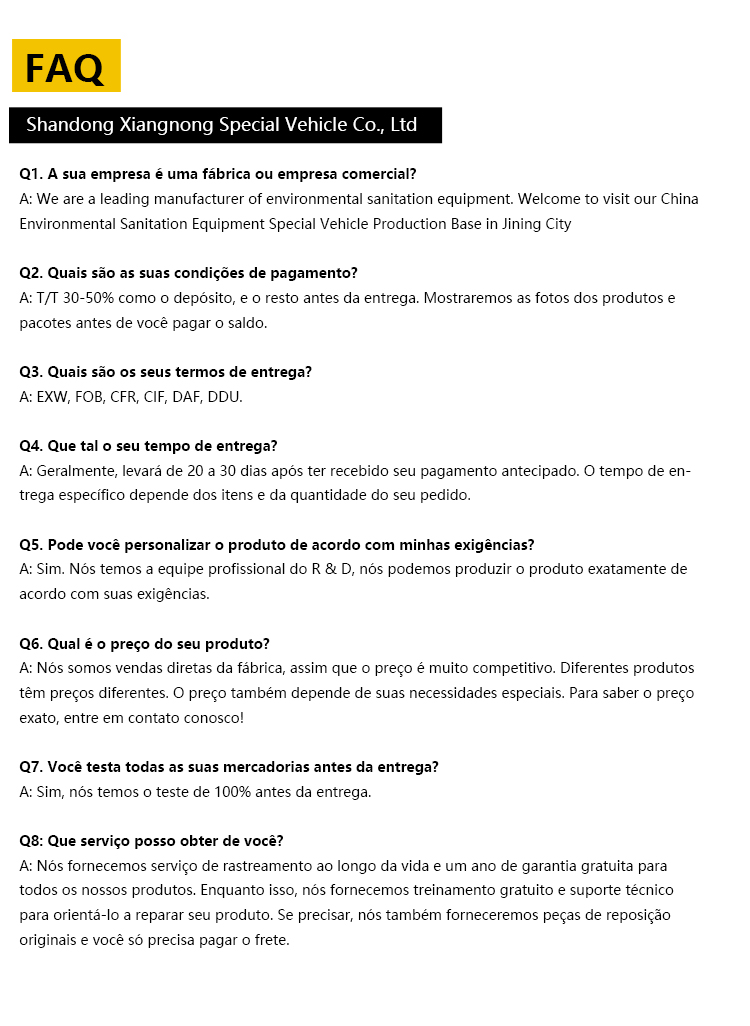

Our common questions:
