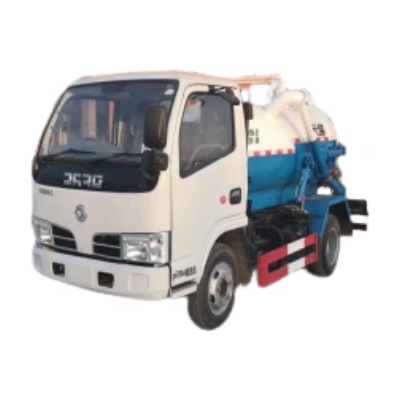

Small And Powerful Sewage Suction Truck

Small and powerful sewage suction vehicles can not only improve work efficiency, but also reduce cleaning costs and time. If you need to clean up sewage and sludge, it is your best choice.

Contact Now E-Mail Telephone
Product Details

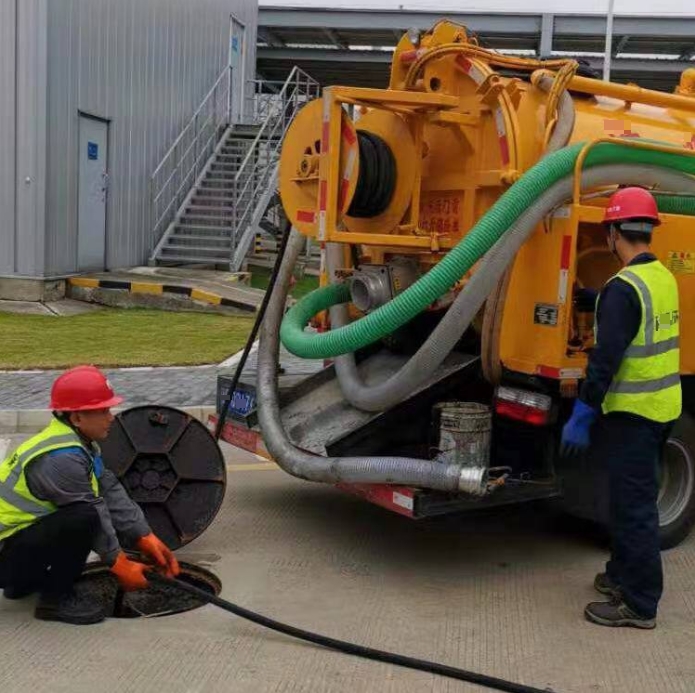

Small and powerful sewage suction trucks can easily suck, transport,

and discharge sludge, silt, stones, etc. from sewers, and can also be

used to clean sediment in sewers.




【Technical parameters of the entire vehicle】

Product trademark

Xiangnongda brand

Announcement Batch

347 (Extended)

Product Name

sewage suction truck

Product model

SGW5040GXWF

Total mass (Kg)

4495

Tank volume (m3)

1.98

Rated load capacity (Kg)

1575,1510

Dimensions (mm)

5350,5600×1950×2450

Curb weight (Kg)

2790

Cargo compartment size (mm)

××

Rated passenger capacity (person)


Total mass of quasi trailer (Kg)


Cab capacity (persons)

2,3

Maximum load capacity of saddle (Kg)


Approach Angle/Departure Angle (degrees)

21/13

Front suspension/rear suspension (mm)

1040/1610

Axle load (Kg)

1800/2695

Maximum speed (Km/h)

103

remarks

This vehicle is mainly used for sewage discharge and dredging, with the main devices being tanks and pumps. The effective volume of the tank is 1.98 cubic meters, the medium is liquid sewage, the density is 800 kg/cubic meter, and the external dimensions of the tank body (straight section length x diameter) (mm) are 2600 × 1000, 2750 × 1000. The side rear protection is welded and connected with Q235 material, and the rear protection section size (mm) is 50 × 100. The height of the rear protection above the ground (mm) is 350. ABS manufacturer and model: Xiangyang Dongfeng Longcheng Machinery Co., Ltd./ABS/ASR-24V-4S/4M. The cab is optional with the chassis. Only 2700mm and 2950mm wheelbase are installed

【Chassis Technical Parameters】

Chassis Model

EQ1041S3CDF

Chassis name

Truck chassis

Trademark name

Dongfeng brand

manufacturing enterprise

Dongfeng Motor Corporation Limited

Number of axes

2

Number of tires

6

Wheelbase (mm)

2700,2950,3308,3050

Tire specifications

6.50R16 10PR,7.00R16 8PR,7.50R16LT 8PR,6.50R16LT 10PR,7.00R16LT 8PR,6.00R15LT 10PR

Number of steel plate springs

6/6+5,5/7+3,3/3+3,2/3+2,3/6+5,3/3+2,2/2,5/4+3,6/4+3,6/5+2,6/3+3

Front wheel base (mm)

1521,1613,1503,1472

Fuel type

diesel oil

Rear wheel base (mm)

1494,1586,1670,1650,1458

Emission standards

GB17691-2018 National VI

Engine model

Engine manufacturing enterprises

Emissions(ml)

Power (Kw)

M9T-600

ZD30D16-6N

YCY24140-60

Q28-130E60

CA4DB1-13E6

D20TCIF1

CA4DB1-11E6

H20-120E60

Q23-115E60

D20TCIF11

H20-130E60

Q23-136E60

Q25-152E60

ZD25D16-6N

D25TCIF1

Dongfeng Light Engine Co., Ltd

Dongfeng Light Engine Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Anhui Quanchai Power Co., Ltd

China FAW Group Co., Ltd

Kunming Yunnei Power Co., Ltd

China FAW Group Co., Ltd

Anhui Quanchai Power Co., Ltd

Anhui Quanchai Power Co., Ltd

Kunming Yunnei Power Co., Ltd

Anhui Quanchai Power Co., Ltd

Anhui Quanchai Power Co., Ltd

Anhui Quanchai Power Co., Ltd

Dongfeng Light Engine Co., Ltd

Kunming Yunnei Power Co., Ltd

2298

2953

2360

2800

2207

1999

2207

2000

2300

1999

2000

2300

2493

2499

2499

105

120

103

96

95

93

81

90

85

93

93

100

112

120

110
