Small Sewage Suction Truck

The Small Sewage Extraction Truck is mainly used for the suction, transportation, loading and unloading of sewage, sludge, etc. from various underground sewage pipelines, rainwater wells, and manholes.

Contact Now E-Mail Telephone
Product Details

Small Sewage Success Truck dual action single top front lifting unloading system,

low center of gravity and high safety of the entire vehicle.

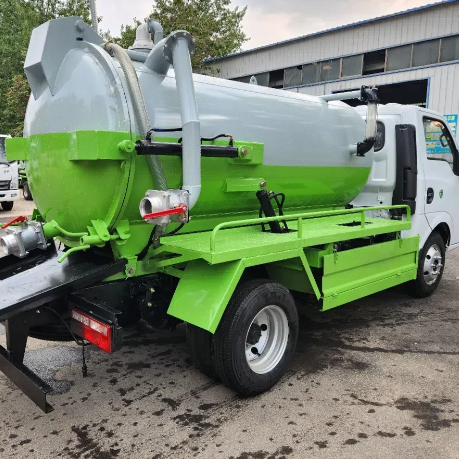

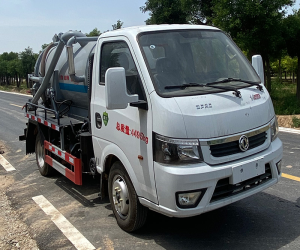

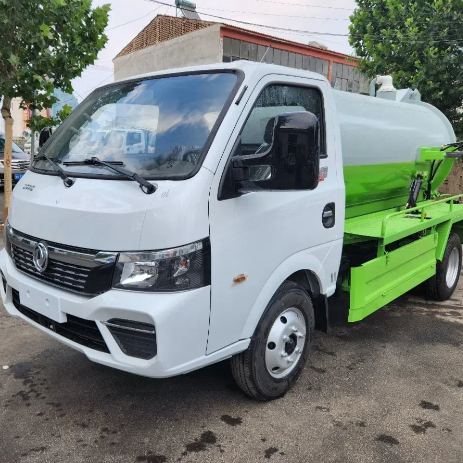

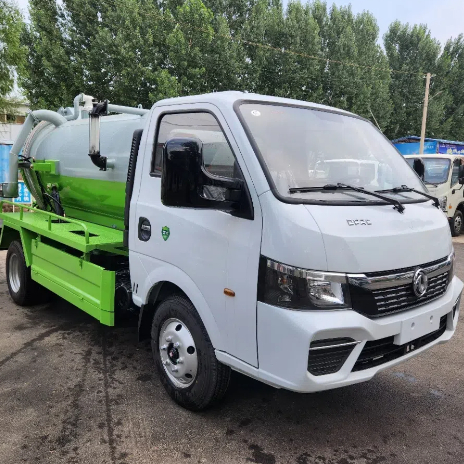

Small Sewage Suction Truck.pngSmall Sewage Suction Truck.jpg

Small Sewage Suction Truck.jpgSmall Sewage Suction Truck.jpg


【Technical parameters of the entire vehicle】

Product trademark

Xiangnongda brand

Announcement Batch

345

Product Name

sewage suction truck

Product model

SGW5045GXWD

Total mass (Kg)

4495

Tank volume (m3)

2.25

Rated load capacity (Kg)

1750

Dimensions (mm)

5470×1850×2250

Curb weight (Kg)

2615

Cargo compartment size (mm)

××

Rated passenger capacity (person)


Total mass of quasi trailer (Kg)


Cab capacity (persons)

2

Maximum load capacity of saddle (Kg)


Approach Angle/Departure Angle (degrees)

21/17

Front suspension/rear suspension (mm)

1190/1480

Axle load (Kg)

1650/2845

Maximum speed (Km/h)

80,110

remarks

Special functions and device description: The vehicle's dedicated device is a tank and pump, mainly used for sewage discharge and dredging; Only use chassis with a wheelbase of 2800mm; ABS model/manufacturer: APG3550500A/Zhejiang Asia Pacific Electromechanical Co., Ltd., optional ABS manufacturer and model: Xiangyang Dongfeng Longcheng Machinery Co., Ltd./ABS/ASR-12V-4S/4M; The side rear protection is welded with Q235 material, and the cross-sectional size of the rear protection (mm) is 50 × 100. The height of the rear protection above the ground (mm) is 400; Effective volume of tank: 2.25 cubic meters, external dimensions of tank: total length of tank (including head): 2990mm, straight section length: 2500mm, tank diameter: 1100mm; Optional speed limit device with chassis, with a speed limit of 80km/h.

【Chassis Technical Parameters】

Chassis Model

EQ1045SJ16DC

Chassis name

Truck chassis

Trademark name

Dongfeng brand

manufacturing enterprise

Dongfeng Motor Group Co., Ltd

Number of axes

2

Number of tires

6

Wheelbase (mm)

2800,3000,3200,3400

Tire specifications

185R15LT 8PR,6.00R15 10PR,6.00R15LT 10PR

Number of steel plate springs

3/5

Front wheel base (mm)

1369,1387

Fuel type

diesel oil

Rear wheel base (mm)

1242,1342

Emission standards

GB17691-2018  National VI

Engine model

Engine manufacturing enterprises

Emissions(ml)

Power (Kw)

Q23-95E60



Anhui Quanchai Power Co., Ltd

2300



70

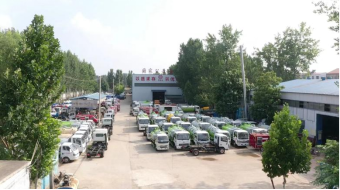

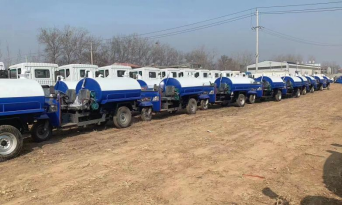

Factory photos.pngFactory photos.png

Factory photos.pngFactory photos.png

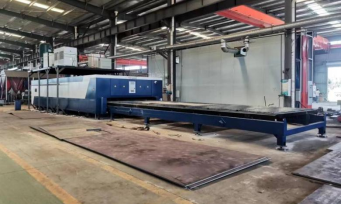

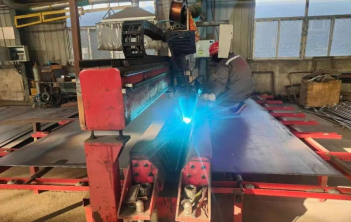

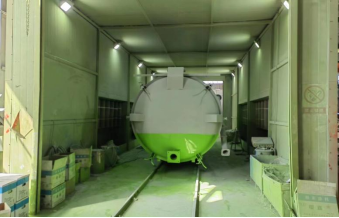

Workshop photos.pngWorkshop photos.png

Workshop photos.pngWorkshop photos.png

Workshop photos.pngWorkshop photos.png
