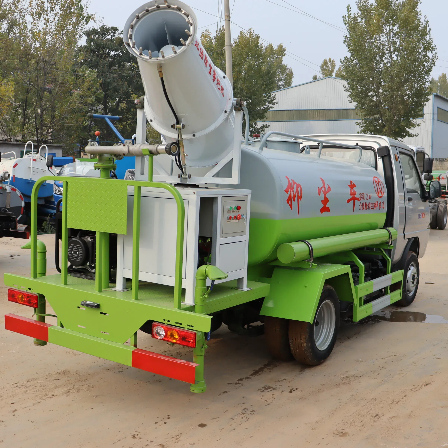

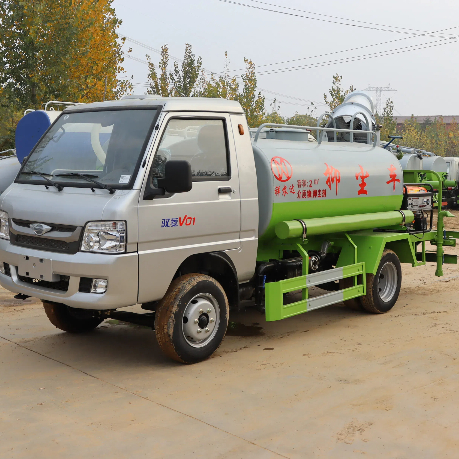

Spot Supply Of Sprinkler Trucks

Spot supply of sprinkler trucks:

Using branded water pumps with high flow rate, even spraying, and long lifting range.

One click control of power take-off, convenient and efficient operation.

All components are made of well-known domestic brands, precision parts, reliable quality, sturdy and durable.


Contact Now E-Mail Telephone
Product Details

Spot supply of sprinkler trucks, with customer satisfaction as the principle,

providing customers with 24-hour and comprehensive after-sales service.

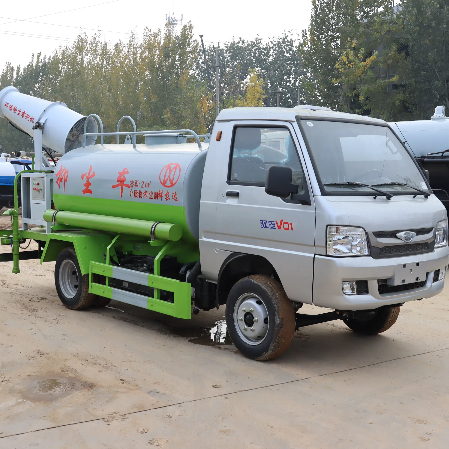

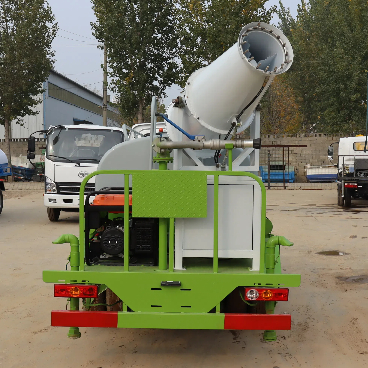

Sprinkler Truck.jpgSprinkler Truck.jpg

Sprinkler Truck.jpgSprinkler Truck.jpg


【Technical parameters of the entire vehicle】

Product trademark

Xiangnongda brand

Announcement batch

323

Product Name

watering lorry

Product model

SGW5032GPSF

Total mass (Kg)

3495

Tank volume (m3)

1.88

Rated load capacity (Kg)

1795

External dimensions (mm)

5450×1750×2300

Curb weight (Kg)

1570

Cargo size (mm)

××

Rated passenger capacity (person)


Total mass of quasi trailer (Kg)


Cab capacity (persons)

2

Maximum load capacity of saddle (Kg)


Approach Angle/Departure Angle (degrees)

40/13

Front/rear suspension (mm)

725/1735

Axle load (Kg)

1365/2130

Maximum speed (km/h)

100

remarks

This vehicle is mainly used for road trees, green belts, and road washing. The main devices are water tanks and pumps. The medium is water, with a density of 1000 kg/cubic meter. The tank volume is 1.88 cubic meters. The external dimensions of the tank (length x long axis x short axis) are (mm): 2400 × 1300 × 900. A rear spray device can be optionally installed. A driver's cab can be optionally installed with the chassis ABS control system model/manufacturer/control method: YF8/Wuhan Yuanfeng Automotive Electronic Control System Co., Ltd./four channel type

【Chassis Technical Parameters】

Chassis Model

SC1031XDD65

Chassis name

Truck chassis

Trademark name

Chang'an brand

manufacturing enterprise

Chongqing Changan Automobile Co., Ltd

Number of axes

2

Number of tires

6

Wheelbase (mm)

2990

Tire specifications

165R14LT 8PR,175R14LT 8PR

Number of steel plate springs

4/5+3,4/5+4

Front wheel base (mm)

1330

Fuel type

gasoline

Rear wheel base (mm)

1210

Emission standards

GB18352.6-2016 National VI

Engine model

Engine manufacturing enterprises

Emissions(ml)

Power (Kw)

DK15C

DAM16KR

Chongqing Yu'an Huaihai Power Co., Ltd

Harbin Dong'an Automotive Power Co., Ltd

1498

1597

82

90

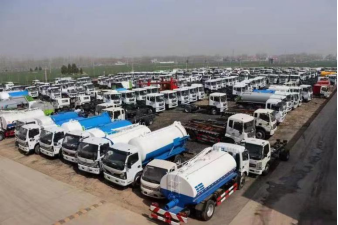

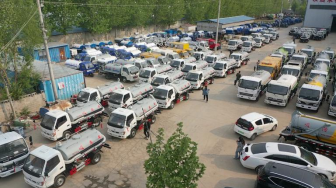

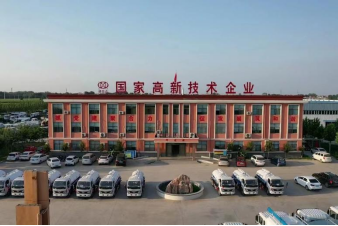

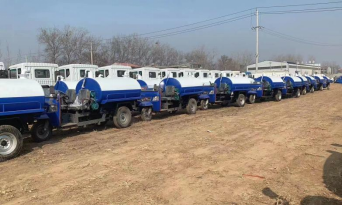

Factory photos.pngFactory photos.png

Factory photos.pngFactory photos.png

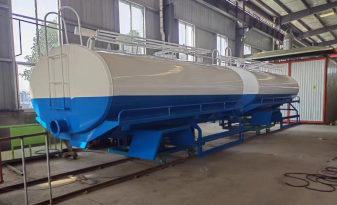

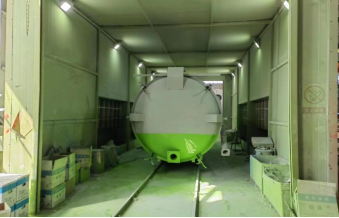

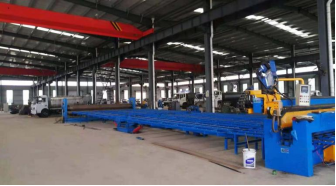

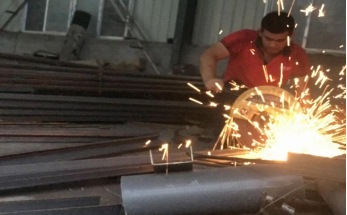

Workshop photos.pngWorkshop photos.png

Workshop photos.pngWorkshop photos.png
