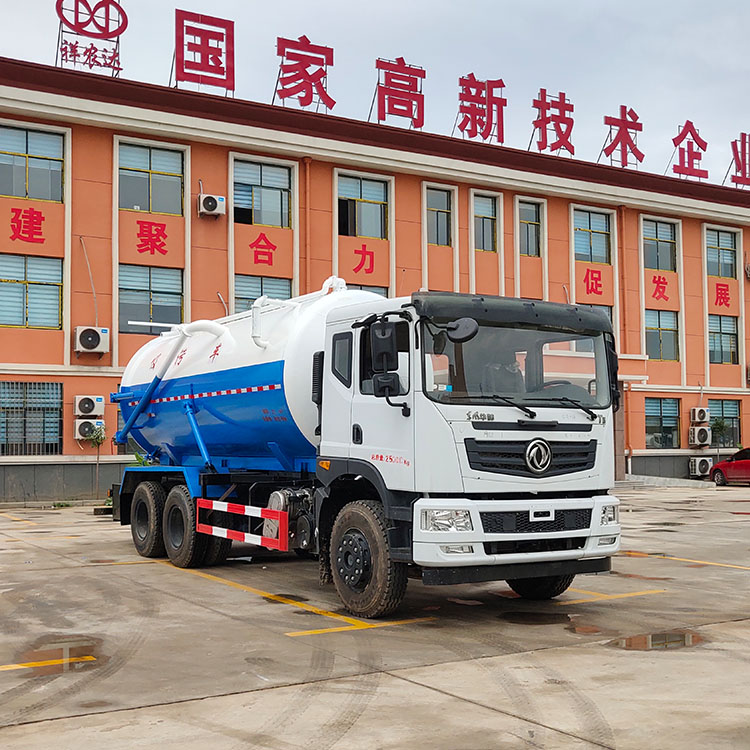

Heavy Duty Sewage Suction Truck

Imported vacuum pump for heavy-duty sewage trucks, with high vacuum degree, long suction distance, high effective suction range, and low noise during operation of the equipment.

Contact Now E-Mail Telephone
Product Details

Heavy duty suction truck hydraulic opening rear cover, high degree of automation,

can effectively reduce the labor intensity and danger of operators.

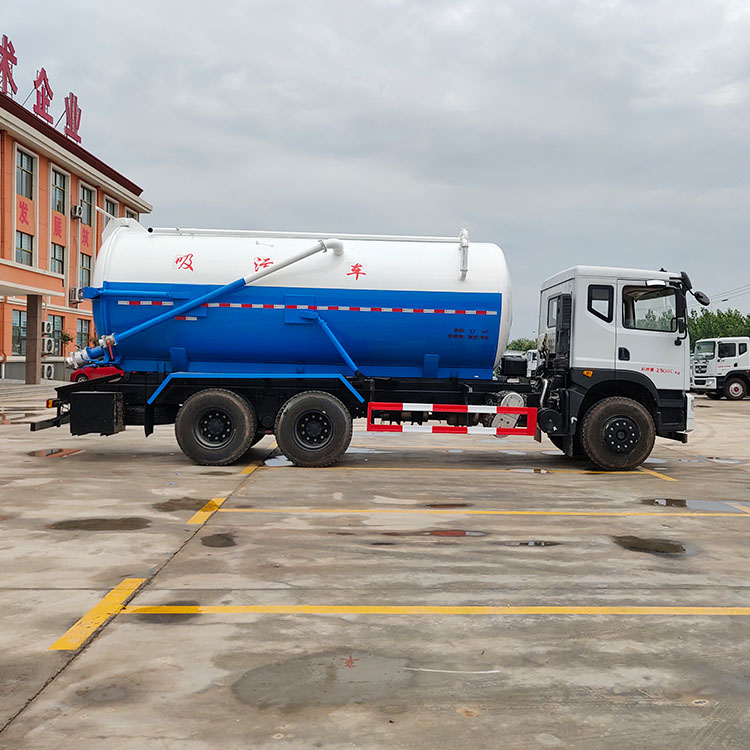

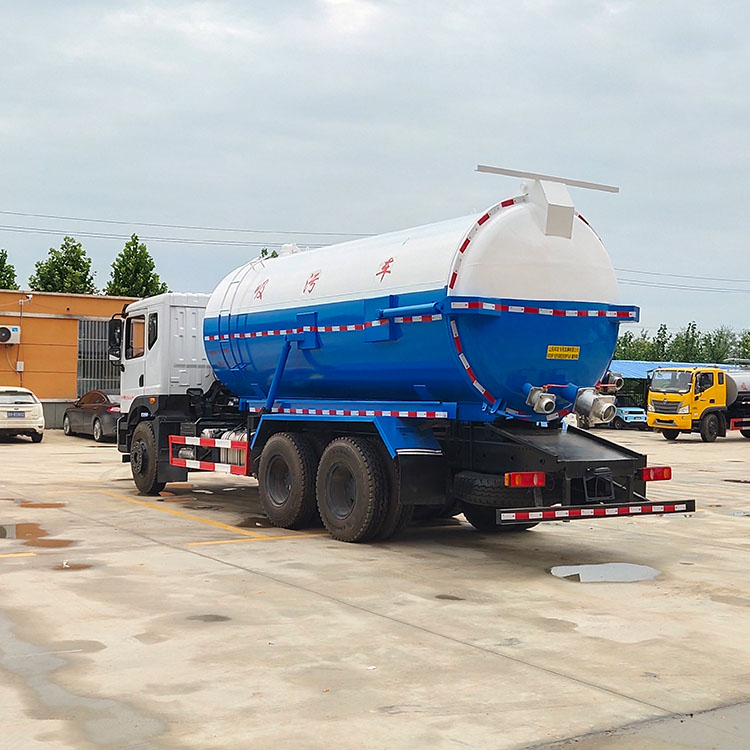

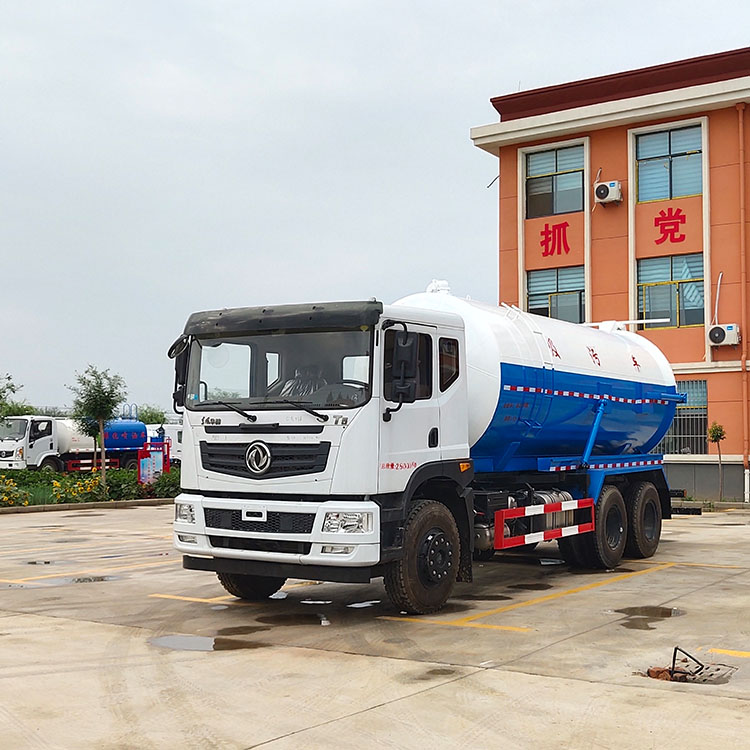

Heavy Duty Sewage Suction Truck.jpgHeavy Duty Sewage Suction Truck.jpg

Heavy Duty Sewage Suction Truck.jpgHeavy Duty Sewage Suction Truck.jpg


【Technical parameters of the entire vehicle】

Product trademark

Xiangnongda brand

Product model

343 (Extended)

Product Name

sewage suction truck



Tank volume (m3)

SGW5250GXWF

Total mass (Kg)

25000

External dimensions (mm)

16

Rated load capacity (Kg)

12275

Cargo size (mm)

10300×2500×3700

Curb weight (Kg)

12530

Total mass of quasi trailer (Kg)

××

Rated passenger capacity (person)



Maximum load capacity of saddle (Kg)



Cab capacity (persons)

3

Front/rear suspension (mm)



Approach Angle/Departure Angle (degrees)

29/21

Maximum speed (km/h)

1475/3125

Axle load (Kg)

7000/18000 (two axis group)

Product model

89

remarks

This vehicle is used for suction removal of liquid pollutants, and the professional equipment mainly includes a tank body, a vacuum pump, etc. The effective volume of the tank body is 16 cubic meters, and the transport medium is liquid pollutants with a density of 800 kg/cubic meter. The external dimensions of the tank body (straight section length x diameter) (mm) are 5900 x 1900; Optional auxiliary engine, tank body dimensions (length x diameter) (mm): 5900 x 1900; The car only uses a wheelbase (mm) of 4350+1350; The side and rear protective materials are all made of Q235 and connected to the vehicle by welding. The height of the rear protection above the ground is 450mm, and the cross-section is 150mm x 50mm ABS manufacturer; Dongke Knorr Commercial Vehicle Braking System (Shiyan) Co., Ltd., Zhejiang Wan'an Technology Co., Ltd., model: 3631010-C2000, VIE ABS - Ⅱ. Optional cab with chassis

【Chassis Technical Parameters】

Chassis Model

EQ1258GSZ6DJ

Chassis name

Truck chassis

Trademark name

Dongfeng brand

manufacturing enterprise

Dongfeng Commercial Vehicle Co., Ltd

Number of axes

3

Number of tires

10

Wheelbase (mm)

4350+1350,4750+1350,5900+1350,5350+1350,3400+1350,3650+1350

Tire specifications

11.00R20 18PR,295/80R22.5 18PR

Number of steel plate springs

8/10,9/10

Front wheel base (mm)

1860,1940,1960,1985,2010,2040

Fuel type

diesel oil

Rear wheel base (mm)

1750/1750,1860/1860,1880/1880

Emission standards

GB3847-2005,GB17691-2018 National VI

Engine model

Engine manufacturing enterprises

Emissions(ml)

Power (Kw)

WP7.300E61

YCS06270-60

B6.2NS6B230

WP6H270E61

YCK05230-60

B6.2NS6B260

WP8.320E61

YCS06245-60

DDi75E300-60

WP6H245E61

YCK08330-60

Weichai power company limited

Guangxi Yuchai Machinery Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Weichai power company limited

Guangxi Yuchai Machinery Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Weichai power company limited

Guangxi Yuchai Machinery Co., Ltd

Dongfeng Commercial Vehicle Co., Ltd

Weichai power company limited

Guangxi Yuchai Machinery Co., Ltd

7470

6234

6200

6220

5132

6200

7800

6234

7500

6220

7698

220

199

169

199

169

191

235

180

220

180

243

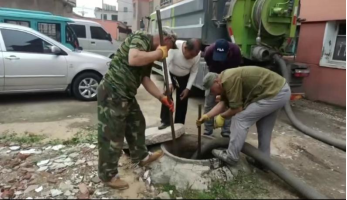

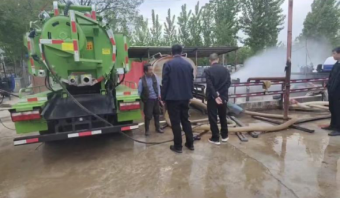

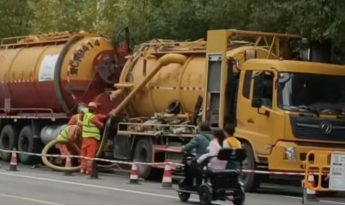

Usage scenarios.pngUsage scenarios.png

Usage scenarios.pngUsage scenarios.pngUsage scenarios.png

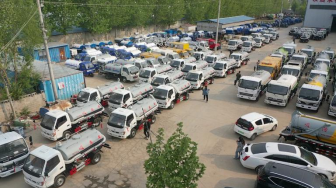

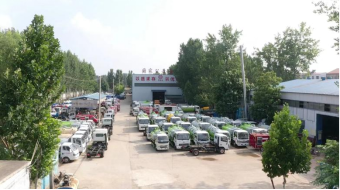

Factory photos.pngFactory photos.png

Factory photos.pngFactory photos.png

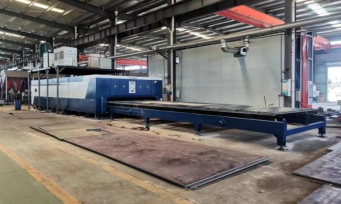

Workshop photos.pngWorkshop photos.png

Workshop photos.pngWorkshop photos.png
