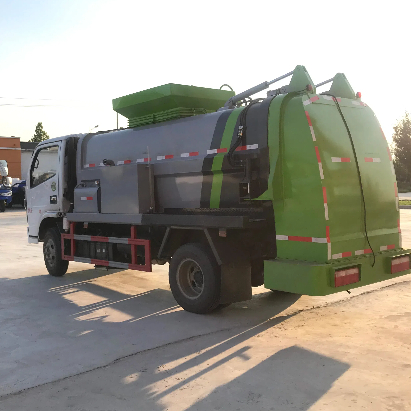

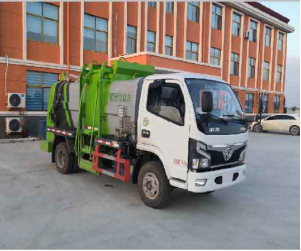

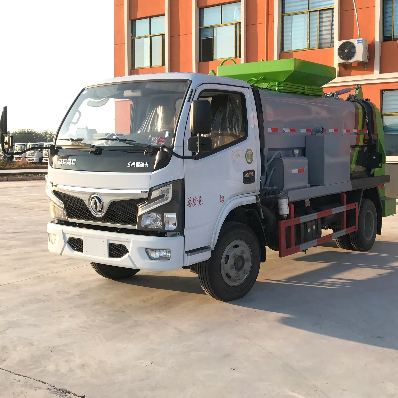

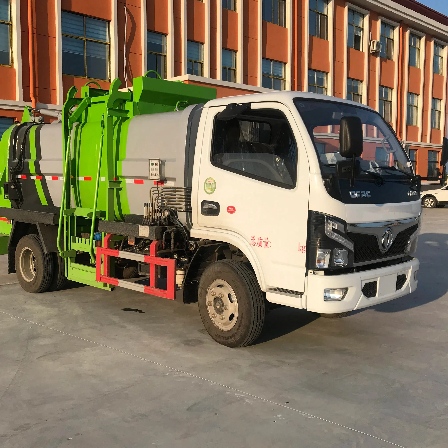

Kitchen Waste Truck
Kitchen waste trucks have the characteristics of high automation in loading and unloading garbage, reliable operation, good sealing, large loading capacity, easy operation, closed operation process, no sewage leakage or odor emission, and good environmental protection.
The kitchen waste truck not only optimizes the living environment and
hygiene of residents, reduces the odor of kitchen waste in the air, improves
the environmental sanitation working environment, and reduces the
pollution caused by the dispersion of garbage everywhere.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement batch | 331 (Extended) |
Product Name | Product model | SGW5070TCAF | |
Total mass (Kg) | 7360 | Tank volume (m3) | |
Rated load capacity (Kg) | 2580,2330 | External dimensions (mm) | 5995×2070×2650 |
Curb weight (Kg) | 4650,4900 | Cargo size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 2 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 27.7/13 | Front/rear suspension (mm) | 1055/1632 |
Axle load (Kg) | 2640/4720 | Maximum speed (km/h) | 110 |
remarks | The main dedicated device of this vehicle is a side mounted garbage bin lifting device, mainly used for the collection and transportation of kitchen waste. The vehicle only uses a wheelbase of 3308mm Optional cab with chassis. The car can be equipped with an internal heating device, which does not affect the appearance of the whole vehicle, but will cause changes in the weight of the whole vehicle. The corresponding relationship between internal configuration/curb weight/rated load capacity is (kg): configuration a: adding a push plate unloading device/4650/2580; Configuration b: Install push plate unloading device and internal heating device/4900/2330 Protective material: Q235, connection method: The side protection adopts welding connection, and the rear protection device is replaced by a special device. The ground height is 400mm ABS model/manufacturer: ABS/ASR-12V-4S/4M/Xiangyang Dongfeng Longcheng Machinery Co., Ltd | ||
【Chassis Technical Parameters】 | |||
Chassis Model | EQ1075SJ3CDF | Chassis name | Truck chassis |
Trademark name | Dongfeng brand | manufacturing enterprise | Dongfeng Motor Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 2700,2950,3308 | ||
Tire specifications | 7.00R16 | ||
Number of steel plate springs | 6/6+5,3/3+3 | Front wheel base (mm) | 1525,1519 |
Fuel type | diesel oil | Rear wheel base (mm) | 1498,1516,1586,1670 |
Emission standards | GB3847-2005,GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
D20TCIF1 YCY24140-60 CA4DB1-11E6 ZD30D16-6N CY4BK461 CY4BK161 Q23-115E60 H20-120E60 CA4DB1-13E6 Q28-130E60 | Kunming Yunnei Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd China FAW Group Co., Ltd Dongfeng Light Engine Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd China FAW Group Co., Ltd Anhui Quanchai Power Co., Ltd | 1999 2360 2207 2953 3707 3856 2300 2000 2207 2800 | 93 103 81 120 95 105 85 90 95 96 |
