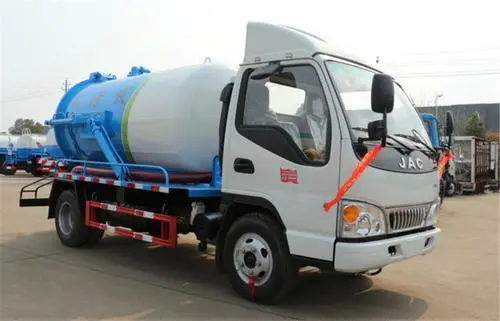

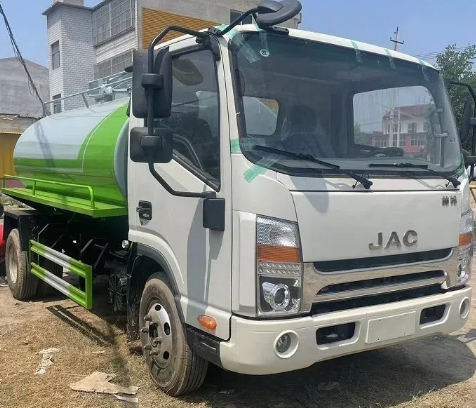

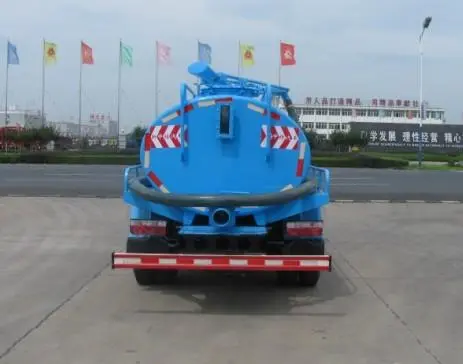

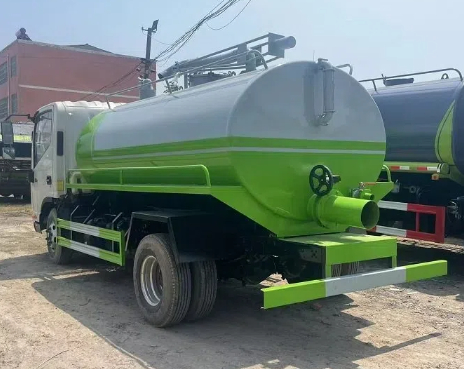

Separable Vacuum Suction Truck
The Separable Vacuum suction truck is equipped with a float device inside the liquid tank, which can provide a certain warning function to prevent fecal overflow. In addition, the product nameplate is fixed on the right rubber hose box, and the vehicle identification code is on the nameplate of the entire vehicle product.
The main function of Separable Vacuum Extraction Truck is a specialized vehicle for the sanitation department
to extract and transport feces and other sewage. It is modified on the chassis of a second-class heavy-duty truck,
and by manipulating the vacuum pump, a certain degree of vacuum is obtained in the liquid tank, so as to suck
feces into the tank. There are two ways of discharge: pressurized discharge and self flow discharge.
1、 Main parameters：
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement batch | 341 |
Product Name | Product model | SGW5071GXEHF6 | |
Total mass (Kg) | 7360 | Tank volume (m3) | 4.6 |
Rated load capacity (Kg) | 3535 | External dimensions (mm) | 5995×2050×2450 |
Curb weight (Kg) | 3695 | Cargo size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 2 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 24/16 | Front/rear suspension (mm) | 1100/1530 |
Axle load (Kg) | 2640/4720 | Maximum speed (km/h) | 100 |
remarks | The side rear protection is welded with Q235 material, and the cross-sectional size of the rear protection (mm) is 120 × 50. The height of the rear protection above the ground (mm) is 430. The vehicle is used for collecting and cleaning feces and sewage, and the main devices are the tank and pump. Transport medium: liquid sewage, medium density: 800 kg/cubic meter. Effective volume of the tank: 4.6 cubic meters. The tank size is (length x long axis x short axis) (mm): 3600 × 1600 × 1100. Only 3365mm wheelbase is installed The ABS system model/manufacturer is VIE ABS-II/Zhejiang Wan'an Technology Co., Ltd., and the optional ABS system model/manufacturer is CM4XL-4S/4M/Guangzhou Ruili Kemi Automotive Electronics Co., Ltd | ||
【Chassis Technical Parameters】 | |||
Chassis Model | HFC1071P33K1C7ZS | Chassis name | Truck chassis |
Trademark name | Jianghuai brand | manufacturing enterprise | Anhui Jianghuai Automobile Group Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 3365,2850 | ||
Tire specifications | 7.00R16LT 14PR | ||
Number of steel plate springs | 5/5+6,11/9+7 | Front wheel base (mm) | 1440,1452 |
Fuel type | diesel oil | Rear wheel base (mm) | 1425,1525 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
D25TCIF1 Q23-115E60 | Kunming Yunnei Power Co., Ltd Anhui Quanchai Power Co., Ltd | 2499 2300 | 110 85 |
2、Main features:
1. The liquid tank is welded from 4mm thick steel plates, with an elliptical cross-section. The tank is welded with
reinforcement rings and anti wave plates to enhance its rigidity and reduce the impact of liquid on the tank bottom
during driving. The inner surface of the liquid tank is coated with EPSP403 solvent-free epoxy phenolic coating, which
has excellent anti-corrosion performance.
2. Choose the original imported rotary vane vacuum pump, which has the advantages of low noise, high suction, low
fuel consumption, and long service life.
3. The anti overflow device in the pneumatic system can prevent fecal water from entering the pneumatic system and
damaging the vacuum pump due to full suction.
4. The coarse oil and gas separator, oil and gas separator, and water gas separator in the pneumatic system achieve
secondary separation to ensure complete separation of oil, gas, and water in the pipeline, ensuring safe and efficient
operation of the suction truck.

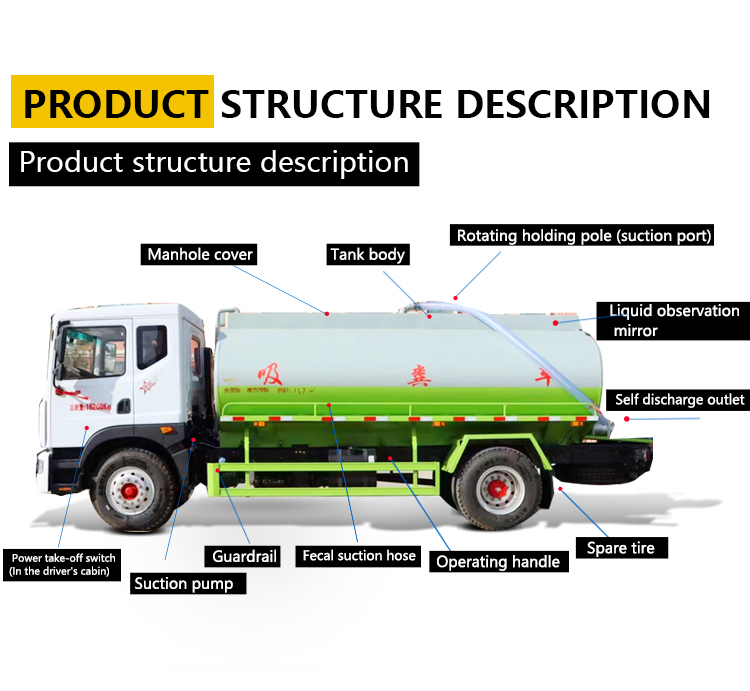

3、Decomposition diagram：
4、Attention:
This parameter and introduction are for reference only during selection and should not be used as a
basis for ordering. Due to possible product adjustments, the actual vehicle parameters and
configurations are subject to the product. Please consult customer service for more information.
