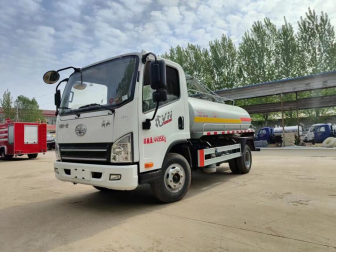

Septic Suction Truck

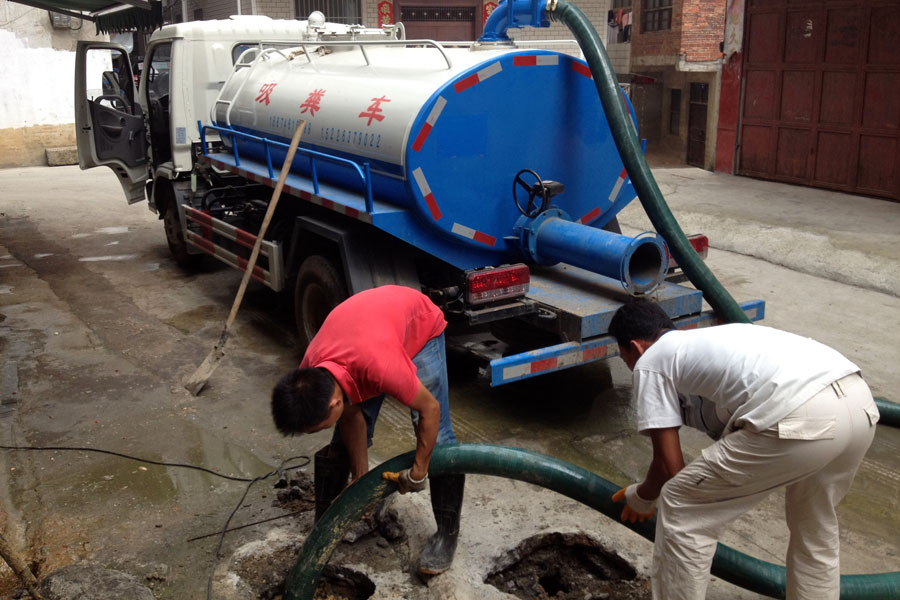

fecal suction truck, also known as a manure transport truck, is mainly suitable for suctioning feces, sewage, sludge, and liquids mixed with small suspended solids. It is suitable for municipal sanitation, large, medium, and small industrial and mining enterprises, residential areas, schools, septic tanks, livestock farms, urban pipeline cleaning and drainage, factory sludge cleaning, etc. In emergency situations, it can transport clean water for firefighting.


Contact Now E-Mail Telephone
Product Details

The application areas of Septic suction truck involve domestic sewage treatment,

industrial sewage treatment, livestock waste treatment, and so on.

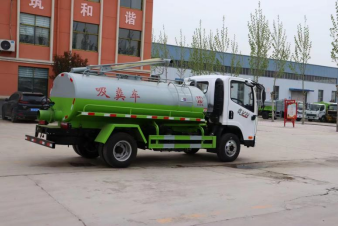

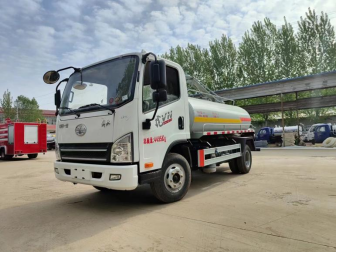

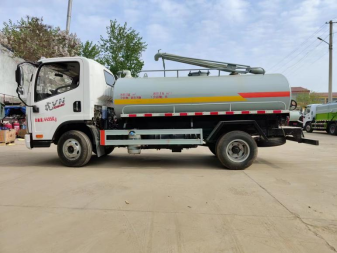

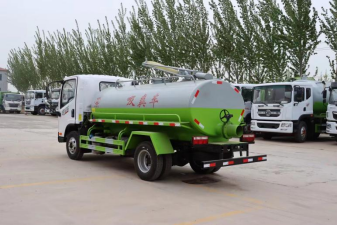

Fecal suction truck.png  Fecal suction truck.png


Fecal suction truck.png  Fecal suction truck.png


【Technical parameters of the entire vehicle】

Product trademark

Xiangnongda brand

Announcement batch

357



Product Name

Fecal suction truck

Product model

SGW5070GXECA6 yellow card//SGW5042GQCA6 blue card

 Total mass (Kg)

7360

Tank volume (m3)

4.5

Rated load capacity (Kg)

3465

External dimensions (mm)

5995×2100×2450

Curb weight (Kg)

3700

Cargo size (mm)

××

Rated passenger capacity (person)


Total mass of quasi trailer (Kg)


Cab capacity (persons)

3

Maximum load capacity of saddle (Kg)


Approach Angle/Departure Angle (degrees)

20/16

Front/rear suspension (mm)

1115/1580

Axle load (Kg)

2640/4720

Maximum speed (km/h)

95

remarks

The vehicle is equipped with a tank for the collection and cleaning of feces and sewage. Transport medium: liquid sewage, density: 800 kg/cubic meter, total tank capacity: 4.5 cubic meters, effective volume: 4.3 cubic meters. Tank dimensions (length x long axis x short axis) (mm): 3600 x 1600 x 1100. Only the chassis has a wheelbase of 3300mm. ABS anti lock braking system manufacturer/model: 1. Guangzhou Ruili Kemi Automotive Electronics Co., Ltd./CM4XL-4S/4M; 2. Zhejiang Wan'an Technology Co., Ltd./VIE ABS-II. Protection: Q235 is used as the protective material, and the connection between the protective device and the frame is welded. The height of the rear protective device above the ground is 440mm, and the cross-sectional size is 120mmX60mm. The cab style can be optionally installed with the chassis

【Chassis Technical Parameters】

Chassis Model

CA1072P40K61L2BE6A84

Chassis name

Flat head diesel truck chassis

Trademark name

Jiefang brand

manufacturing enterprise

China FAW Group Co., Ltd



Number of axes

2

Number of tires

6

Wheelbase (mm)

3300,3600

Tire specifications

7.00R16 14PR,7.50R16 14PR,7.50R16 16PR,7.00R16LT 14PR,7.50R16LT 14PR,7.50R16LT 16PR

Number of steel plate springs

3/3+4,3/7+3,7/7+3,3/3+3,3/7+9,7/7+9,7/10+3,7/10+4,3/10+3,3/10+4

Front wheel base (mm)

1580,1601,1649,1654,1664,1668,1704,1714,1761,1771

Fuel type

diesel oil

Rear wheel base (mm)

1480,1494,1525,1539,1565,1579,1590,1604,1740,1754

Emission standards

GB17691-2018 National VI

Engine model

Engine manufacturing enterprises

Emissions(ml)

Power (Kw)

D25TCIF1

CA4DB1-13E6

H20-120E60

WP2.3NQ130E61

Q23-132E60

CA4DB1A13E6

CA4DB1A14E68

WP2.3NQ120E61

Q23-115E60

Kunming Yunnei Power Co., Ltd

China FAW Group Co., Ltd

Anhui Quanchai Power Co., Ltd

Weichai power company limited

Anhui Quanchai Power Co., Ltd

China FAW Group Co., Ltd

China FAW Group Co., Ltd

Weichai power company limited

Anhui Quanchai Power Co., Ltd

2499

2207

2000

2289

2300

2207

2207

2289

2300

110

95

90

96

97

95.2

100

88

85

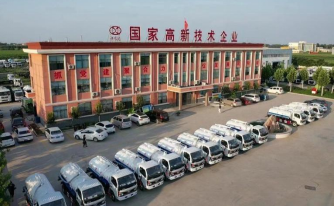

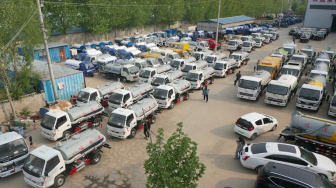

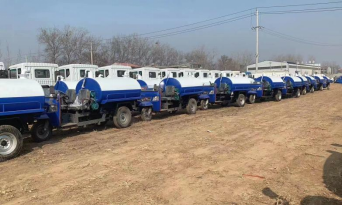

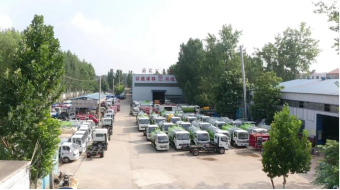

Factory photos.pngFactory photos.png

Factory photos.pngFactory photos.png

Factory photos.pngFactory photos.png

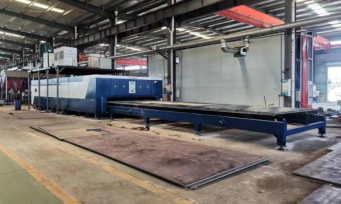

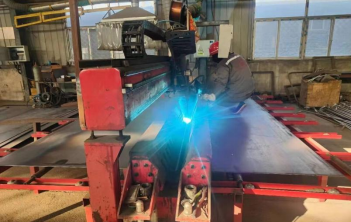

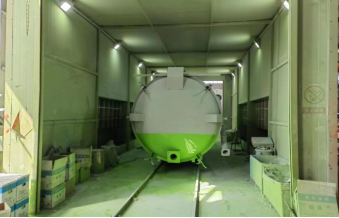

Workshop photos.pngWorkshop photos.png
