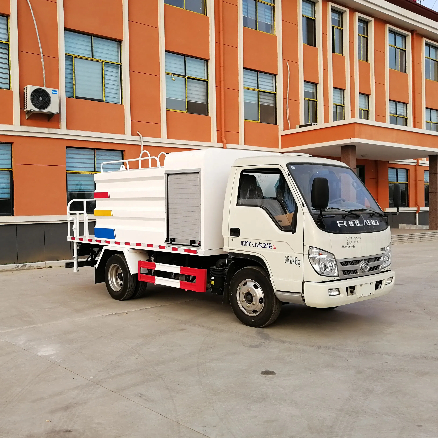

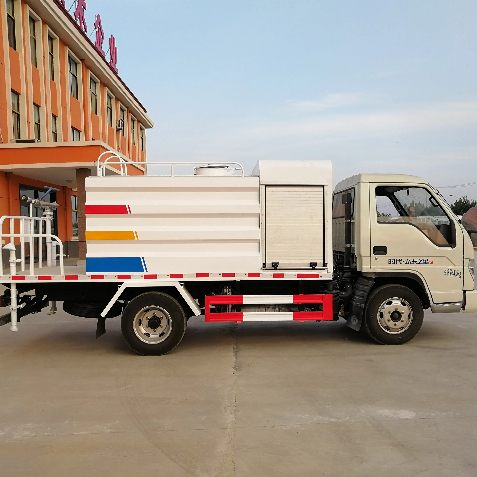

Manufacturers Sell Sprinkler Trucks

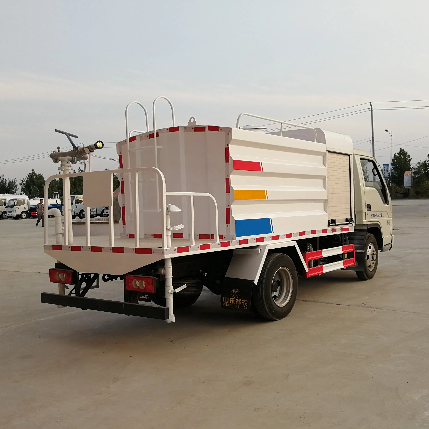

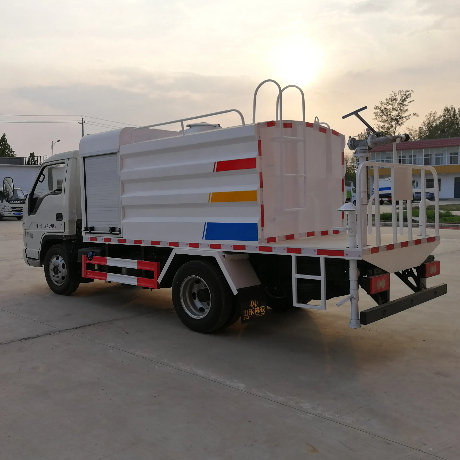

The manufacturer sells sprinkler trucks, which come standard with rear bumpers, rear sprinklers, and rear water cannons. A small fog cannon is installed on the rear platform, which sprays small and wide water mist, effectively reducing temperature and dust.
Manufacturers sell sprinkler trucks that can be equipped with optional components
such as front hedge, front duckbill, front electronic water cannon, side spray, and
high-level showerhead to meet the needs of different scenarios.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement batch | 334 (Extended) |
Product Name | Product model | SGW5041TDYF | |
Total mass (Kg) | 4495 | Tank volume (m3) | |
Rated load capacity (Kg) | 1650 | External dimensions (mm) | 5800×1850×2450 |
Curb weight (Kg) | 2715 | Cargo size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 2 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 20/16 | Front/rear suspension (mm) | 1130/1820 |
Axle load (Kg) | 1617/2878 | Maximum speed (km/h) | 105 |
remarks | The vehicle's dedicated device consists of a water pump, fog cannon, pipeline control system, etc. It is used for dust prevention and urban haze prevention, greening, and road surface watering. The side protection device material is Q235, welded to the same frame, and the rear protection device material is Q235, welded to the same frame. The cross-sectional size (width x height) is 50 × 100 (mm), and the height of the rear protection above the ground is 350 (mm) The ABS model is CM4XL-4S/4M, manufactured by Guangzhou Ruili Kemi Automotive Electronics Co., Ltd. It is optional to install a fog free cannon. The front panel is optional to be installed with the chassis, and the appearance is optional to be installed | ||
【Chassis Technical Parameters】 | |||
Chassis Model | BJ1045V9JB5-54 | Chassis name | Truck chassis |
Trademark name | Futian brand | manufacturing enterprise | Beiqi Foton Motor Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 2850,3360 | ||
Tire specifications | 6.50R16LT 10PR | ||
Number of steel plate springs | 7/7+5,7/4+3,7/5+2,3/5+2,2/3+2 | Front wheel base (mm) | 1495,1415 |
Fuel type | diesel oil | Rear wheel base (mm) | 1435 |
Emission standards | GB3847-2005,GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
Q23-115E60 Q23-115C60 | Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd | 2300 2300 | 85 85 |
