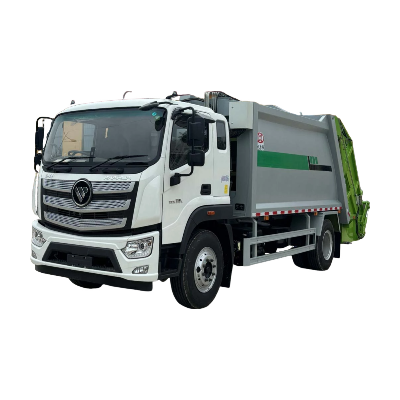

Convenient compression garbage truck
1. Powerful and economical:
Adopting advanced power systems, such as the Fukang F4.5TT engine, the maximum horsepower is increased to 260
horsepower, coupled with the ZF gearbox, achieving high transmission efficiency and low fuel consumption.
2. Lightweight and High Reliability:
The long-lasting engine and the quality of components without major repairs, as well as the long maintenance cycle, reduce
the frequency and time of user maintenance and improve operational efficiency.
3. Having efficient compression technology:
It can significantly compress the volume of garbage, reduce transportation frequency, thereby saving costs and reducing
carbon emissions.
The leading technology and industry-leading resources of convenient compression garbage trucks endow the entire vehicle with performance advantages such as strong power, low fuel consumption, and high load-bearing capacity. At the same time, the chassis of the entire vehicle is more fully considered for installation requirements, and adjustments and optimizations are made to achieve a perfect match between the chassis and the installation, easily improving the efficiency and workload of environmental sanitation operations.
Based on the needs of environmental sanitation and garbage removal operations, we have created the Changying version of the convenient environmental sanitation and garbage removal vehicle. While leveraging the product's strong power, low fuel consumption, and high load-bearing capacity, we also fully utilize the advantages of strong loading capacity, compressible garbage, and good sealing performance, thus endowing the entire vehicle with outstanding performance.
Supported by strong product capabilities, Oumako also takes into account the actual usage needs of users, puts customers at the center, and creates a comprehensive service guarantee plan to provide users with fast, comprehensive, and thoughtful worry free services throughout the entire process.
To ensure efficient product operation, we not only provide a 2-year unlimited mileage warranty, but also match the "1+2+4+15" limited time service policy. We also offer maintenance services, value customer fleet management one-on-one services, and personalized support services to ensure vehicle attendance. At the same time, in addition to maintenance, it also provides training on common fault diagnosis and handling methods for sanitation vehicles to relevant technical personnel, maximizing the protection of customer interests.
Based on the requirements of the scene, we will achieve deep customization of products, continuously improve the operational value of users with a user centered approach, and deliver environmental sanitation equipment in bulk to help our company's dedicated vehicles expand again in the field of environmental sanitation. In the future, our company will continue to uphold the responsibility of industry leaders and continuously create more and better professional customized product solutions for users in various segmented industries, providing protection for high-value operations of users.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 388 |
Product Name | Compressed garbage truck | Product model | SGW5181ZYSBJ6 |
Total mass (Kg) | 18000 | Tank volume (m3) | |
Rated load capacity (Kg) | 7305,7370,8255,8320 | Dimensions (mm) | 8900,8800,8700x2550x3350,3300,3250 |
Curb weight (Kg) | 10500,9550 | Cargo compartment size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 3,2 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 18/9,18/10 | Front suspension/rear suspension (mm) | 1270/2830,1270/2730,1270/2630 |
Axle load (Kg) | 6500/11500 | Maximum speed (Km/h) | 95 |
remarks | The main specialized equipment of the vehicle consists of a box and a compression system, used for garbage collection and transportation; The correspondence between external length and extension is (mm): 8900/300.8800/300.8700/300. The side protective material is Q235B and the connection method is welding; The rear protection is replaced by a dedicated device, with the lower edge separated from it Ground height 450mm; Corresponding relationship between ABS system model/manufacturer: ABS-E/WABCO Automotive Control Systems (China) Co., Ltd., CM4XL-4S/4M/Guangzhou Ruili Kemi Automotive Electronics Co., Ltd., 3550D-1010/Dongke Knorr Bremse Commercial Vehicle Braking System (Shiyan) Co., Ltd. Corresponding relationship between engine/fuel consumption value (L/100km): F4.5NS6B190/26.29,YCS04200-68/25.88,YCS06245-60/25.14,YCS04220-61A/25.88; The vehicle is equipped with a driving recorder with satellite positioning function, and an ETC onboard device is optional. The vehicle uses a chassis with a wheelbase of 4500mm | ||
【Chassis Technical Parameters】 | |||
Chassis Model | BJ1186VLPFD-3K | Chassis name | Truck chassis |
Trademark name | Futian brand | manufacturing enterprise | Beiqi Foton Motor Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 3800,4200,3950,4500 | ||
Tire specifications | 11R22.5 18PR,10.00R20 18PR,275/80R22.5 18PR | ||
Number of steel plate springs | 10/10+8,3/4+3,10/8+8 | Front wheel base (mm) | 1952,1972,1922,2008 |
Fuel type | diesel oil | Rear wheel base (mm) | 1840,1800,1860 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
F4.5NS6B190 YCS04200-68 YCS06245-60 YCS04220-61A YCS06245-60A | Beijing Futian Cummins Engine Co., Ltd Guangxi Yuchai Machinery Co., Ltd Guangxi Yuchai Machinery Co., Ltd Guangxi Yuchai Machinery Co., Ltd The company Guangxi Yuchai Machinery Co., Ltd The company | 4500 4156 6234 4295 6234 | 190 200 245 220 245 |
