Small Bucket Garbage Truck

A small hanging bucket garbage truck can achieve joint operation with multiple garbage bins, circular transportation, fully improving the transportation capacity of the vehicle, especially suitable for short distance transportation, such as cleaning and transportation of urban garbage.

Contact Now E-Mail Telephone
Product Details

The specific operation method and steps of hanging bucket garbage truck are as follows:

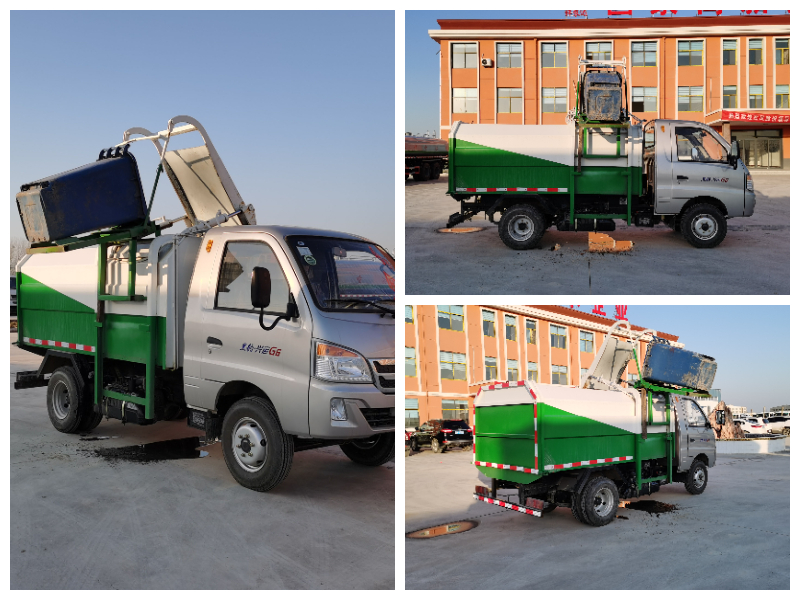

Small Bucket Garbage Truck.jpg Small Bucket Garbage Truck.jpg

To hang the bucket and load the garbage, first move the garbage bin to the hook of the lift, and at the same time

place the bucket lifting position on the hook. Push the lift operation switch (or handle) to the upward position,

thereby driving the lift to move upward, and the garbage can is hung up.

When the lift and garbage bin rise to a certain position, the garbage bin is locked (or compressed), and finally

the garbage bin rises to the top of the box with the lift flap and flips over the garbage in the bin to the box;

Release the hoist operation switch (or handle) and return it to the center position. All components of the hoist

and the garbage bin will stop moving; Push the lift operation switch to the down position, causing the lift rod

and garbage bin to flip downwards. The garbage bin is gradually lowered and released until it is placed back on

the ground; Release the operation switch and return to the center position. Finally, remove the trash can to

complete the garbage loading task.

Small Bucket Garbage Truck.jpg Small Bucket Garbage Truck.jpg

Attention: When operating the garbage transport vehicle, it is strictly prohibited to stand next to the lift and

under the garbage bin!


【Technical parameters of the entire vehicle】

Product trademark

Xiangnongda brand

Announcement Batch

345 (Extended)

Product Name

Hydraulic Lifter Garbage truck

Product model

SGW5072ZZZF

Total mass (Kg)

7360

Tank volume (m3)


Rated load capacity (Kg)

3295

Dimensions (mm)

5995×2040×2500,2400

Curb weight (Kg)

3870

Cargo compartment size (mm)

××

Rated passenger capacity (person)


Total mass of quasi trailer (Kg)


Cab capacity (persons)

3

Maximum load capacity of saddle (Kg)


Approach Angle/Departure Angle (degrees)

21/14

Front suspension/rear suspension (mm)

1120/1515

Axle load (Kg)

2640/4720

Maximum speed (Km/h)

95

remarks

This vehicle is used to dump garbage into the compartment for transportation, and the dedicated device consists of a lifting mechanism, a pushing plate mechanism, etc Self dumping method: rear dumping The side rear protection is welded with Q235 material, and the cross-sectional size of the rear protection (mm) is 50 × 120. The height of the rear protection above the ground (mm) is 410 The ABS model is CM4XL-4S/4M, and the manufacturer is Guangzhou Ruili Kemi Automotive Electronics Co., Ltd The fuel consumption value of engine Q28-130E60 is 16.1L/100km, and the fuel consumption value of engine Q28-130C60 is 16.1L/100km Optional front bumper with chassis Optional box style and lifting device type

【Chassis Technical Parameters】

Chassis Model

BJ1073VDJDA-01

Chassis name

Truck chassis

Trademark name

Futian brand

manufacturing enterprise

Beiqi Foton Motor Co., Ltd

Number of axes

2

Number of tires

6

Wheelbase (mm)

3360

Tire specifications

7.00R16LT 14PR,7.50R16LT 12PR

Number of steel plate springs

3/6+6

Front wheel base (mm)

1715

Fuel type

diesel oil

Rear wheel base (mm)

1590,1800

Emission standards

GB3847-2005,GB17691-2018 National VI

Engine model

Engine manufacturing enterprises

Emissions(ml)

Power (Kw)

Q28-130E60

Q28-130C60

Anhui Quanchai Power Co., Ltd

Anhui Quanchai Power Co., Ltd

2800

2800

96

96

The above product parameter details are for reference only,

If you need it, you can come to us for customization!

Small Bucket Garbage Truck.jpg

Technical characteristics of side mounted bucket compression garbage truck:

1. The garbage bin adopts a frame style structural design, with a simple and atmospheric overall

appearance and high structural strength.

2. The feeding mechanism adopts a pull rod structure with high structural strength and strong feeding

lifting force. It mainly mounts 240L garbage cans, while also accommodating 100L and 120L garbage cans.

3. The sealing cover door of the feed inlet is interlocked with the hanging bucket mechanism for opening

and closing, ensuring the sealed transportation of garbage.

4. The rear door adopts hydraulic locking and opening mechanism, with strong locking force and high reliability.

5. Equipped with a 130L large capacity sewage tank to ensure no sewage leakage during transportation.
