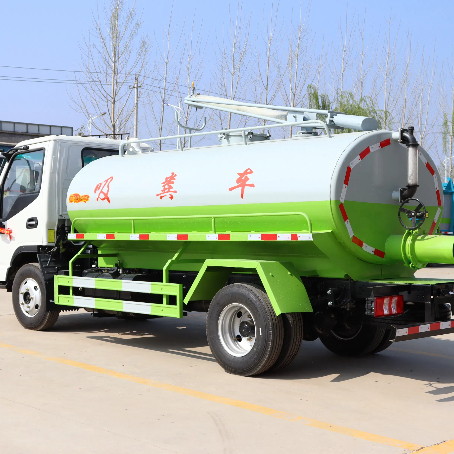

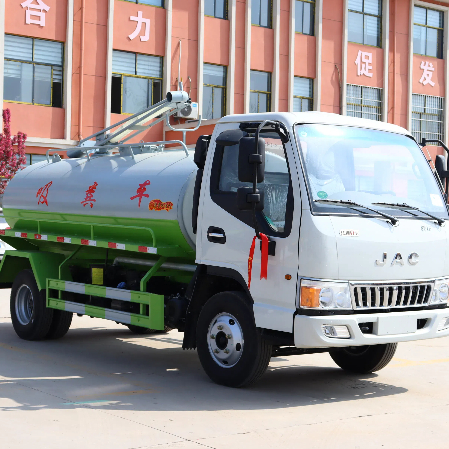

Medium Sized Fecal Suction Truck

The suction truck mainly consists of a car chassis, tank body, suction device, etc

Contact Now E-Mail Telephone
Product Details

The composition of a fecal suction truck includes an oil-water separator, a water vapor separator,

a dedicated vacuum fecal suction pump, a volumetric pressure gauge, a pipeline system, a suction

duct, a self flow valve, a vacuum tank body, a connector (fecal window), and a fully automatic spill

proof valve.

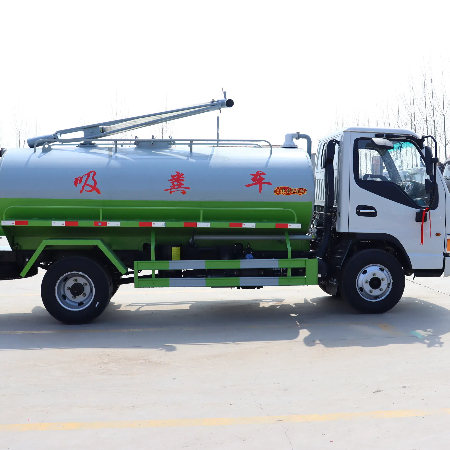

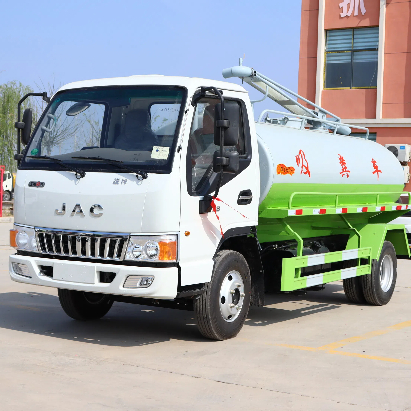

Fecal suction truck.jpgFecal suction truck.jpg

Fecal suction truck.jpgFecal suction truck.jpg


【Technical parameters of the entire vehicle】

Product trademark

Xiangnongda brand

Announcement batch

341

Product Name

Fecal suction truck

Product model

SGW5121GXEHF6

Total mass (Kg)

11920

Tank volume (m3)

8.4

Rated load capacity (Kg)

6475

External dimensions (mm)

6920×2350×2800

Curb weight (Kg)

5250

Cargo size (mm)

××

Rated passenger capacity (person)



Total mass of quasi trailer (Kg)



Cab capacity (persons)

3

Maximum load capacity of saddle (Kg)



Approach Angle/Departure Angle (degrees)

20/15

Front/rear suspension (mm)

1075/2000

Axle load (Kg)

4120/7800

Maximum speed (km/h)

100

remarks

The side rear protection is welded with Q235 material, and the cross-sectional size of the rear protection (mm) is 100 × 50. The height of the rear protection above the ground (mm) is 450. The vehicle is used for collecting and cleaning feces and sewage, and the main devices are tanks and pumps. Transport medium: liquid sewage, medium density: 800 kg/cubic meter. Effective volume of the tank: 8.4 cubic meters. The tank size is (length x long axis x short axis) (mm): 4300 × 1900 × 1400. ABS system controller model/manufacturer: VIE ABS-II/Zhejiang Wan'an Technology Co., Ltd

【Chassis Technical Parameters】

Chassis Model

HFC1121P31K1C6ZS

Chassis name

Truck chassis

Trademark name

Jianghuai brand

manufacturing enterprise

Anhui Jianghuai Automobile Group Co., Ltd

Number of axes

2

Number of tires

6

Wheelbase (mm)

3845

Tire specifications

245/70R19.5 14PR,245/70R19.5 16PR

Number of steel plate springs

9/9+7

Front wheel base (mm)

1705

Fuel type

diesel oil

Rear wheel base (mm)

1785

Emission standards

GB17691-2018  National VI

Engine model

Engine manufacturing enterprises

Emissions(ml)

Power (Kw)

D30TCIF2



Kunming Yunnei Power Co., Ltd

2977



120

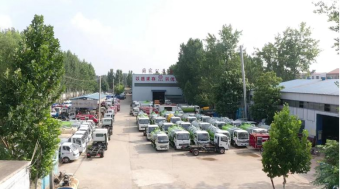

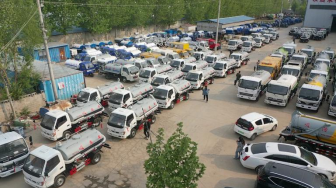

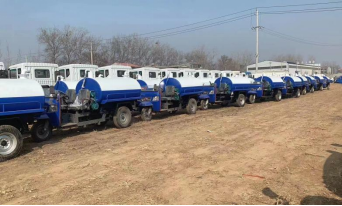

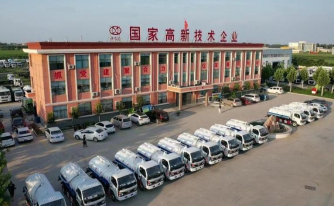

Company scale display (partial) pictures.pngCompany scale display (partial) pictures.png

Company scale display (partial) pictures.pngCompany scale display (partial) pictures.png

Company scale display (partial) pictures.pngCompany scale display (partial) pictures.png

Shandong Xiangnong Special Vehicle Co., Ltd. was established in 2002 and is located in

Jiaxiang County, Shandong Province,the hometown of Zengzi. We are a high-tech enterprise

that integrates the research and development, production, and sales of sanitation vehicles.

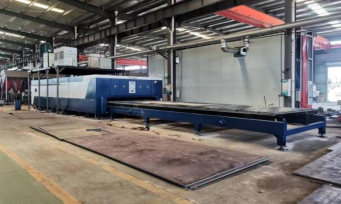

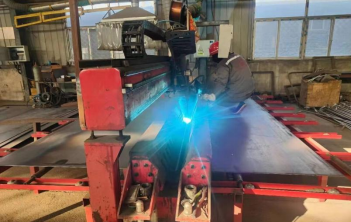

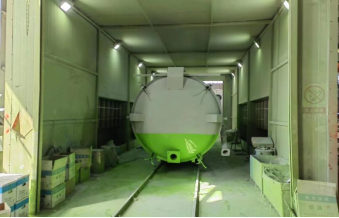

Workshop process pictures (partial) display.pngWorkshop process pictures (partial) display.png

Workshop process pictures (partial) display.pngWorkshop process pictures (partial) display.png

Workshop process pictures (partial) display.pngWorkshop process pictures (partial) display.png
