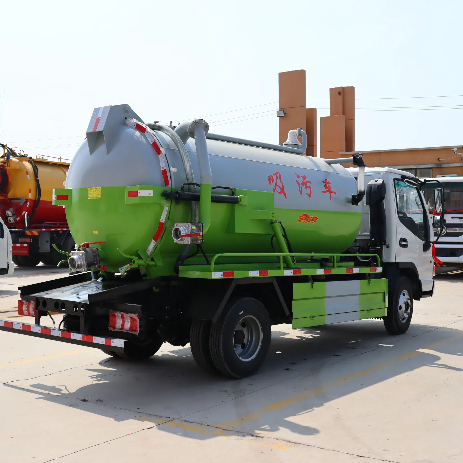

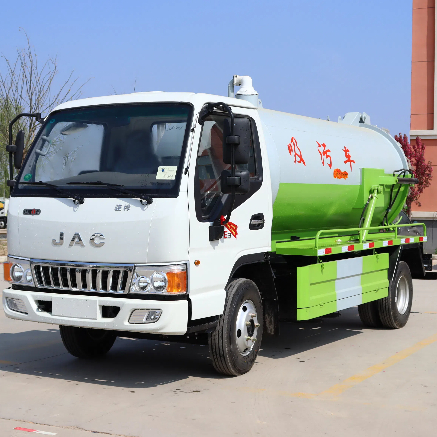

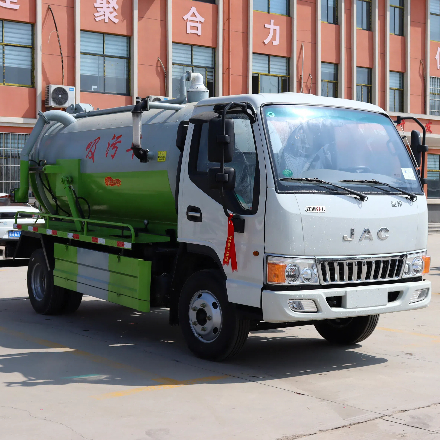

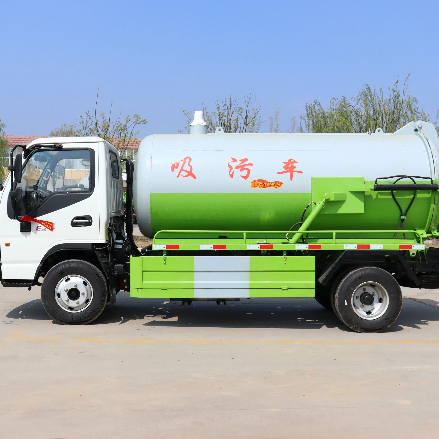

Sewage Treatment Suction Truck

Product trademark

Xiangnongda brand

Product model

346

Product Name

sewage suction truck

Tank volume (m3)

SGW5120GXWHF6

Total mass (Kg)

11920

External dimensions (mm)

7.8

Rated load capacity (Kg)

6025

Cargo size (mm)

6910,6900×2350×3050

Curb weight (Kg)

5700

Total mass of quasi trailer (Kg)

××

Rated passenger capacity (person)

Maximum load capacity of saddle (Kg)

Cab capacity (persons)

3

Front/rear suspension (mm)

Approach Angle/Departure Angle (degrees)

20/13

Maximum speed (km/h)

1075/1990,1075/1980

Axle load (Kg)

4120/7800

Product model

100

remarks

The specialized device for this vehicle is a tank and a pump, mainly used for sewage discharge and dredging; ABS system controller model/manufacturer: VIE ABS-II/Zhejiang Wan'an Technology Co., Ltd; The side rear protection is welded with Q235 material, and the cross-sectional size of the rear protection (mm) is 100 × 50. The height of the rear protection above the ground (mm) is 430; Effective volume of tank: 7.8 cubic meters, external dimensions of tank: total length of tank (including head): 4700mm, straight section length: 4100mm, tank diameter: 1600mm; The maximum net power of D30TCIF2 engine is 115kW

【Chassis Technical Parameters】

Chassis Model

HFC1121P31K1C6ZS

Chassis name

Truck chassis

Trademark name

Jianghuai brand

manufacturing enterprise

Anhui Jianghuai Automobile Group Co., Ltd

Number of axes

2

Number of tires

6

Wheelbase (mm)

3845

Tire specifications

245/70R19.5 14PR,245/70R19.5 16PR

Number of steel plate springs

9/9+7

Front wheel base (mm)

1705

Fuel type

diesel oil

Rear wheel base (mm)

1785

Emission standards

GB17691-2018 National VI

Engine model

Engine manufacturing enterprises

Emissions（ml）

Power (Kw)

D30TCIF2

Kunming Yunnei Power Co., Ltd

2977

120
