Wheelbase Suction Car

The water tank of the cleaning and suction truck is equipped with a low-pressure water level sensing alarm system, which can automatically alarm when there is no water, preventing the water pump from being damaged due to water shortage.

Contact Now E-Mail Telephone
Product Details

1.The product function is introduced as follows

(1)The suction vehicle is a new sanitation vehicle to collect, transfer and transport sludge and sewage and avoid secondary pollution. The back cover can be opened and the tank body to lift and unload easily, working fast and large capacity. It is suitable for the collection and transportation of feces, mud, crude oil and other liquid substances.

(2)The car is suitable for municipal sanitation, large and medium-sized industrial and mining enterprises, residential areas, schools, septic tank cleaning and transfer, urban pipeline cleaning and dredging, factory biogas slurry biogas residue cleaning, etc., emergency can be transported water for fire fighting.

(3)Base plate configuration: the new standard national six model, Weichai engine, 160 horsepower, 6 gear gearbox, 3900 wheelbase, 245 tires, broken air brake, wide body cab can take 3 people, the original car air conditioning, yellow card, free vehicle registration certificate and free from purchase tax.

(4)Upper, part of the round tank, force collector, drive shaft, according to the demand of high power 8 tons of oil circulation suction pump or SK-9-12 water circulation suction pump, water tank. Oil cylinder, anti-overflow valve, water and gas separator also known as secondary overflow prevention, hydraulic cylinder, multi-directional valve, ball valve, suction pipe, liquid glass, pressure gauge, a variety of accessories and other components.

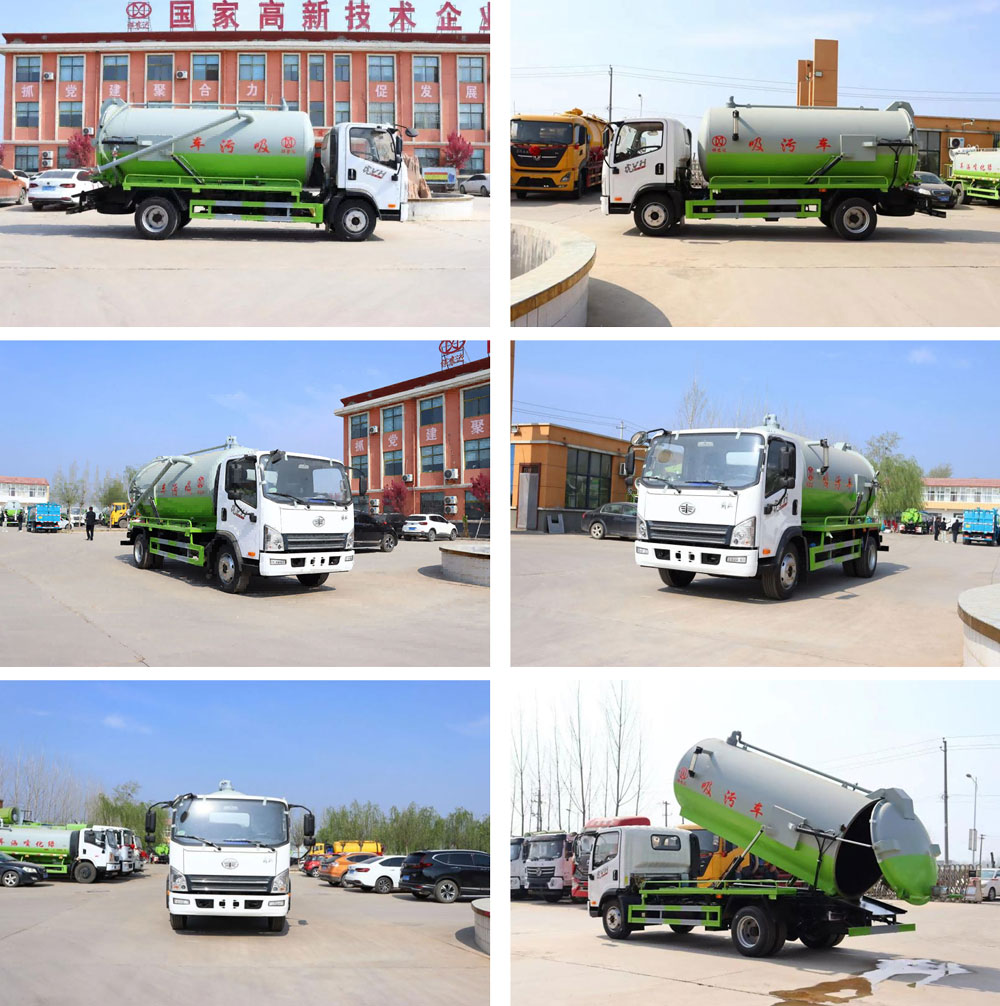

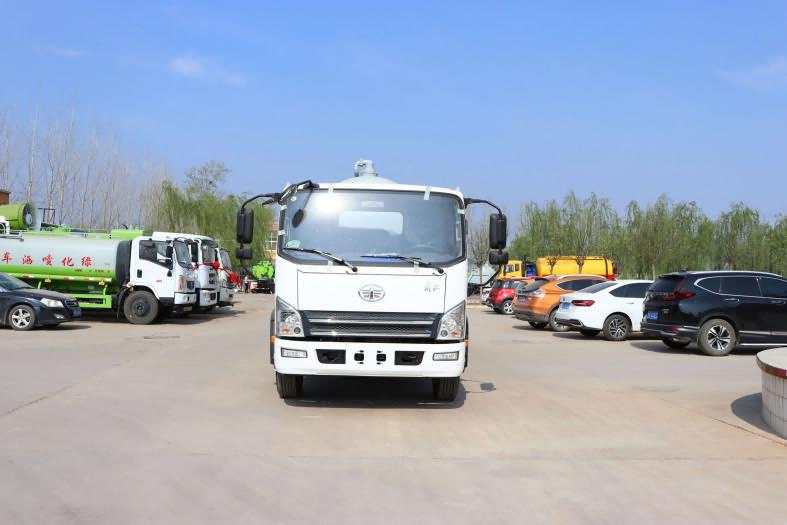

2.The picture of the vehicle is as follows

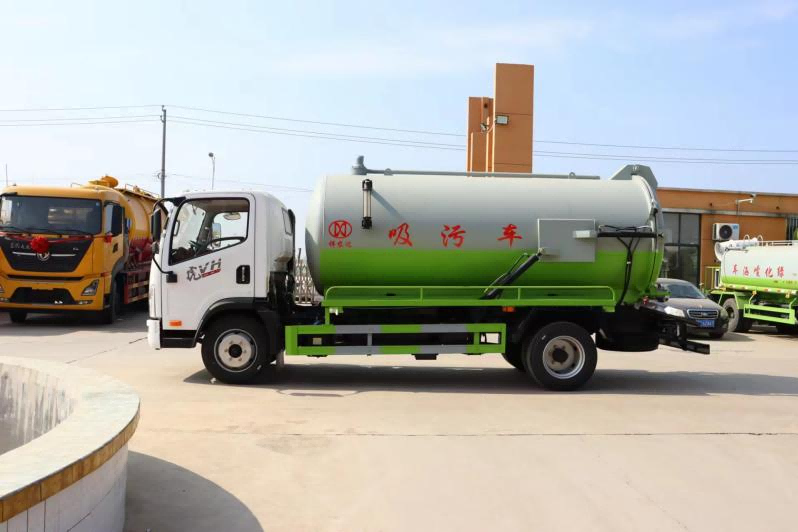

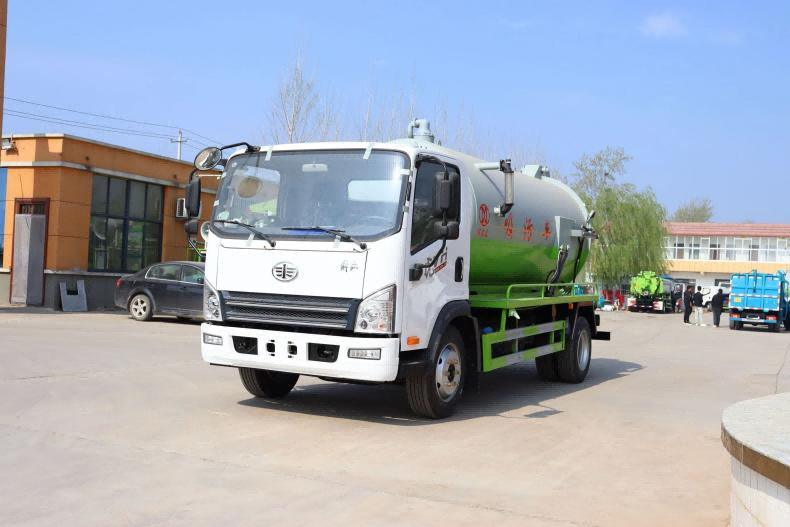

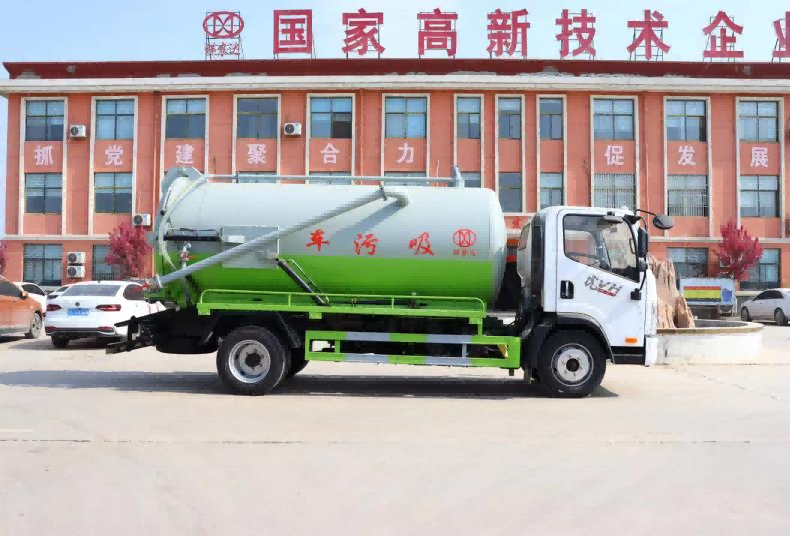

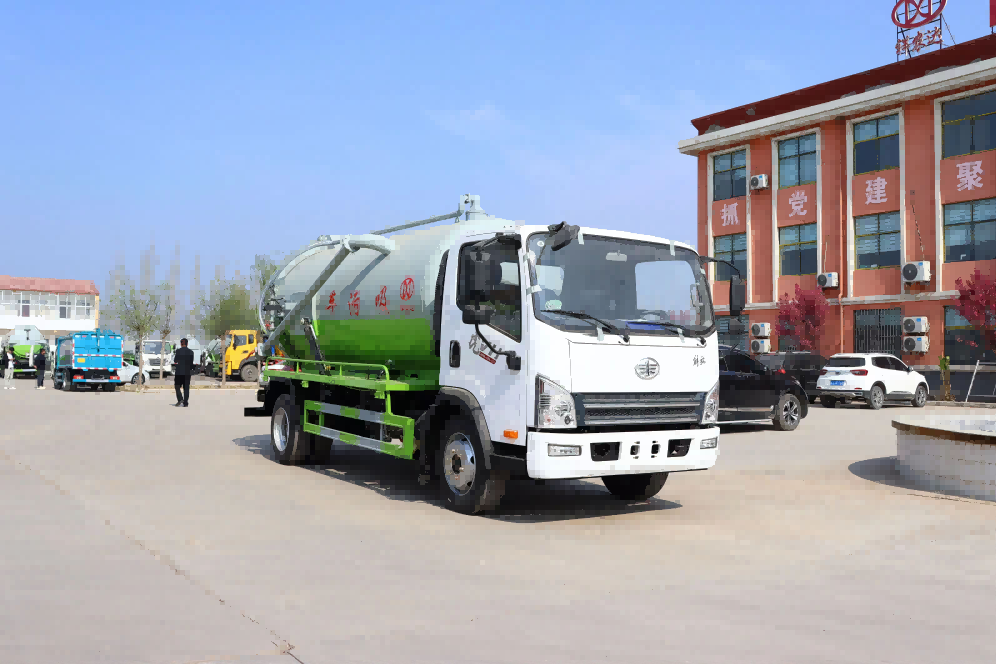

Wheelbase Suction Car


3.Detailed parameters of the vehicle are as follows

[Vehicle technical parameters]

Product trademark

XiangNong da card

Announcement batch

361 (extended)

product name

suction-type sewer scavenger

product model

SGW5120GXWCA6

gross mass (Kg)

11995

Tank volume (m3)

7.9

Rated load mass (Kg)

6240

Overall dimensions (mm)

7030×2290×2930

Preparation mass (Kg)

5560

Goods Chamber Size (mm)

××

Rated passenger capacity (person)



Quasi-trailer total mass (Kg)



Number of passengers (person)

3

Maximum saddle load mass (Kg)



Approach angle / departure angle of (°)

20/13

Front suspension / rear suspension (mm)

1155/1975

axle weight (Kg)

4360/7635

Top vehicle speed (Km/h)

100

remarks

The side rear protection is connected by Q235 material welding connection, the rear protection section size (mm): 12060, the rear protection height (mm): 450. Only select 3900mm wheelbase. The vehicle special device: tank and pump, mainly used for sewage sludge suction, clear fishing, etc. Transportation medium: liquid dirt, medium density: 800 kg / m 3. The total capacity of the tank is 7.9 cubic meters, with an effective volume: 7.8 cubic meters. Tank size is (straight length diameter) (mm): 41001600. Select the cab with the chassis. ABS manufacturer / model: 1. Guangzhou Ricomi Automotive Electronics Co., Ltd. / CM4XL-4S / 4M; 2. Zhejiang Wan'an Technology Co., Ltd. / VIE ABS-II. Select the fuel tank position along with the chassis. Optional loading of the water circulating pump.

[Chassis technical parameters]

Chassis model

CA1120P40K59L4BE6A84

Chassis name

Flat-head diesel truck chassis

brand name

Liberation card

manufacturing enterprise

China FaW Group Co., Ltd

number of axles

2

Number of tires

6

wheel base (mm)

4200,3900

tyre size

245/70R19.5 16PR,8.25R20 16PR,255/70R22.5 16PR

Number of steel plate spring sheets

3/3+3,3/7+9,3/10+4,7/10+4,7/10+3,3/4+4

front gauge (mm)

1738,1761,1726,1751,1815

Fuel types

diesel oil

rear track (mm)

1678,1740

Emission basis standard

The GB17691-2018 countries

engine type

Engine production enterprise

displacement (ml)

power (Kw)

WP3NQ160E61

D30TCIF1

CA4DD1-16E6

CA4DD2-18E6

CA4DH1-18E6

Weichai Power Co., LTD

Kunming Yunnei Power Co., LTD

China FaW Group Co., Ltd

China FaW Group Co., Ltd

China FaW Group Co., Ltd

2970

2977

3000

3230

3800

118

125

121

132

132


4.The product function is introduced as follows

(1)The suction vehicle is a new sanitation vehicle to collect, transfer and transport sludge and sewage and avoid secondary pollution. The back cover can be opened and the tank body to lift and unload easily, working fast and large capacity. It is suitable for the collection and transportation of feces, mud, crude oil and other liquid substances.

(2)The car is suitable for municipal sanitation, large and medium-sized industrial and mining enterprises, residential areas, schools, septic tank cleaning and transfer, urban pipeline cleaning and dredging, factory biogas slurry biogas residue cleaning, etc., emergency can be transported water for fire fighting.

(3)Base plate configuration: the new standard national six model, Weichai engine, 160 horsepower, 6 gear gearbox, 3900 wheelbase, 245 tires, broken air brake, wide body cab can take 3 people, the original car air conditioning, yellow card, free vehicle registration certificate and free from purchase tax.

(4)Upper, part of the round tank, force collector, drive shaft, according to the demand of high power 8 tons of oil circulation suction pump or SK-9-12 water circulation suction pump, water tank. Oil cylinder, anti-overflow valve, water and gas separator also known as secondary overflow prevention, hydraulic cylinder, multi-directional valve, ball valve, suction pipe, liquid glass, pressure gauge, a variety of accessories and other components.

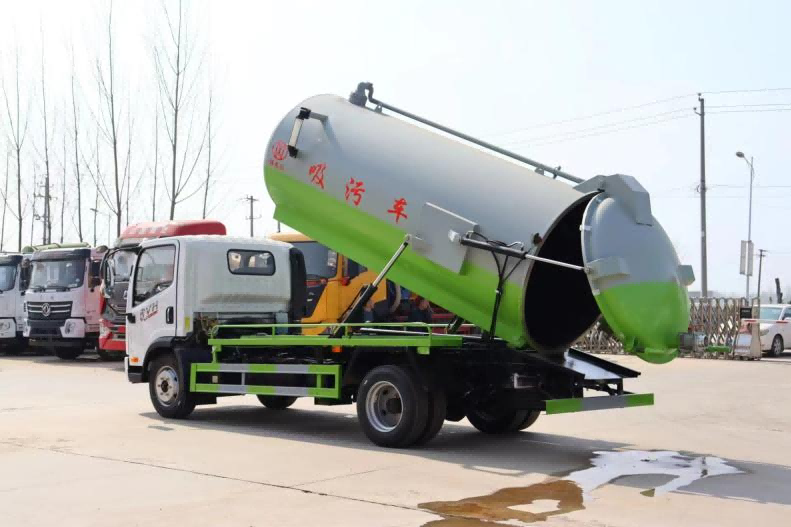

5.The top decomposition picture display

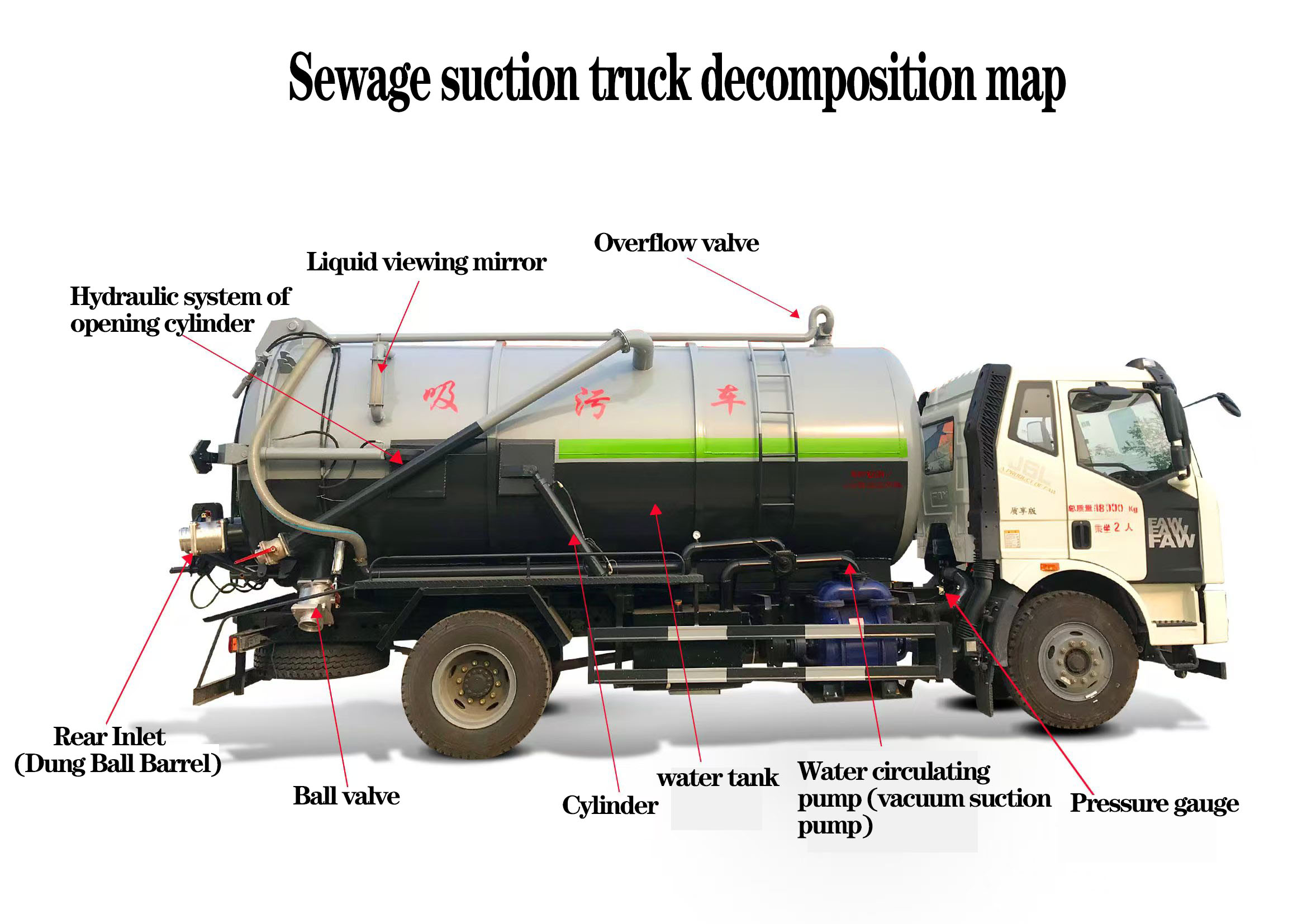

Wheelbase Suction Car



6.Product use precautions

(1)The oil surface in the oil and gas separator should not be lower than the middle position of the observation hole and lower than the triple position of the oil pipe, otherwise the vacuum pump will be damaged.

(2)When the outdoor temperature is below 0 degrees Celsius, use antifreeze oil, and use diesel oil at 0 to 10 degrees Celsius.

(3)When accidentally pumped into the pump sewage or feces should be timely clean up and replace the new oil.

(4)No items other than air lubricating oil from entering the pump, otherwise responsible.

(5)The pump shall not extract corrosive gases such as acid and alkali and non-explosive gases.

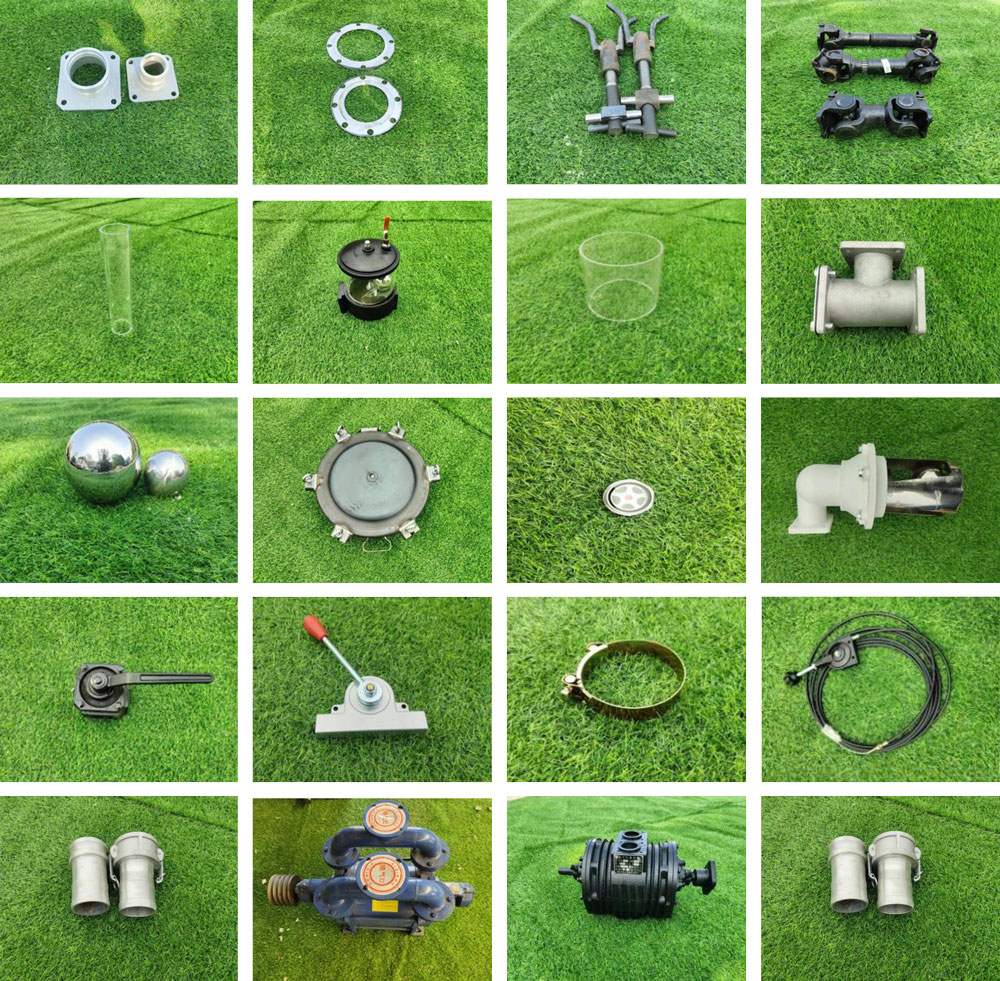

7.The picture of common accessories is as follows

Wheelbase Suction Car


8.The product after-sale service should know as follows

(1)The car is operated by the car description, and the chassis is guaranteed by the chassis manufacturer for after-sales.

(2)Check the oil quantity of the vehicle before work, and whether the screws in each part are loose. Because the screws of the vehicle are fastened once in the factory and bumpy in the transportation process, they must be tightened twice and checked regularly.

(3)Check the pipeline for air leakage to avoid affecting the vacuum.

(4)When the force collector is opened during working, the car air pressure must reach more than six. Step on the clutch and open the force collector slowly and loosen the clutch and refueling door slowly. If it is not pneumatic manual, when stepping on the clutch lift lever, the clutch can be hung slowly. Some national three cars are semi-linkage, in the process of hanging the force lift, if you hear the sound of the teeth need to step on the clutch to leave and hang again.(Force collector is a vulnerable part).

(5)Hang up the force collector, and the drive shaft rotates the vacuum pump and works simultaneously with the hydraulic pump.

(6)Move the four-way valve to the direction of the pumping began to drain the pollution, the four-way valve panting mouth to breathe out is to smoke in.(7)In the process of pumping, always observe the liquid view glass to avoid pumping into the vacuum pump, so as not to affect the suction. If it is not very full water separator and oil and gas separator into the foreign body to clean and replace the oil in time. After pumping, step on the clutch and close the four-way valve to the middle.

(7)When the suction from the suction pipe work, when the discharge from the back cover dung ball valve discharge, spontaneous flow, suction car does not allow pressure discharge.

(8)At the top or back cover, loosen the wire to avoid breaking the back cover.


9.Sewage suction precautions and maintenance

(1)Add diesel oil to the suction pump and oil and gas separator, and replace the oil between 30 to 40 cars. The second time to smoke more than 40 cars in the replacement time, the following oil less words to refueling and 3-6 months to change the oil can be.

(2)hydraulic system hydraulic oil replacement once a quarter.

(3)If the oil and water in the oil and gas separator, the oil in the oil and gas separator must not exceed the position of the observation hole or below the position of the oil pipe, no, the vacuum pump will be damaged.

(4)When the outdoor temperature is below 0 degrees Celsius, use diesel oil from 0 to 10 degrees Celsius. If the temperature is above 10 degrees Celsius, change the closed gear oil, and check to ensure that the oil circuit is smooth.

(5)New pump in the first use if found the vacuum degree is not high, the reason is that the new pump no oil or oil too little, pump operation cannot produce vacuum, can not put the oil from the oil and gas separator suction pump, the solution is to add 1-2 liters of oil, pump oil vacuum, can produce the oil from the oil and gas separator suction pump vacuum.

(6)suction car if careless operation at work, excessive suction will sewage suction vacuum pump and installed behind the water vapor separation and gas separation and pipeline system, the whole system is blocked, the whole system will not be able to form a vacuum, serious will damage the vacuum pump, after this should remove clean suction pipe system (including four-way valve, water vapor separator), clean the oil and gas separator and pipe tee and into the pipe back pipe, replace the contaminated oil, and carefully remove the pollutants in the vacuum pump.

(7)Such as cleaning in the oil doesn't check the water vapor separator and overflow valve ball in the corresponding position (overflow valve and water vapor separator should be at the bottom of the overflow valve is just a protective effect, not one hundred percent work, such as the tank bubble is too large or overflow valve ball above a foreign body can cause overflow valve does not work). After a period of use, the car should check whether the universal joint screw is loose and needs to be tightened or replaced (the vacuum pump and the force shaft is not within the chassis service range because of the upper part, so the user needs to check and tighten regularly by himself).


10.Company scale display (part) picture

Company Scale Display Picture


11.Workshop process picture (part) display

Workshop Process Picture Display


Workshop Process Picture Display


12.Model function picture display

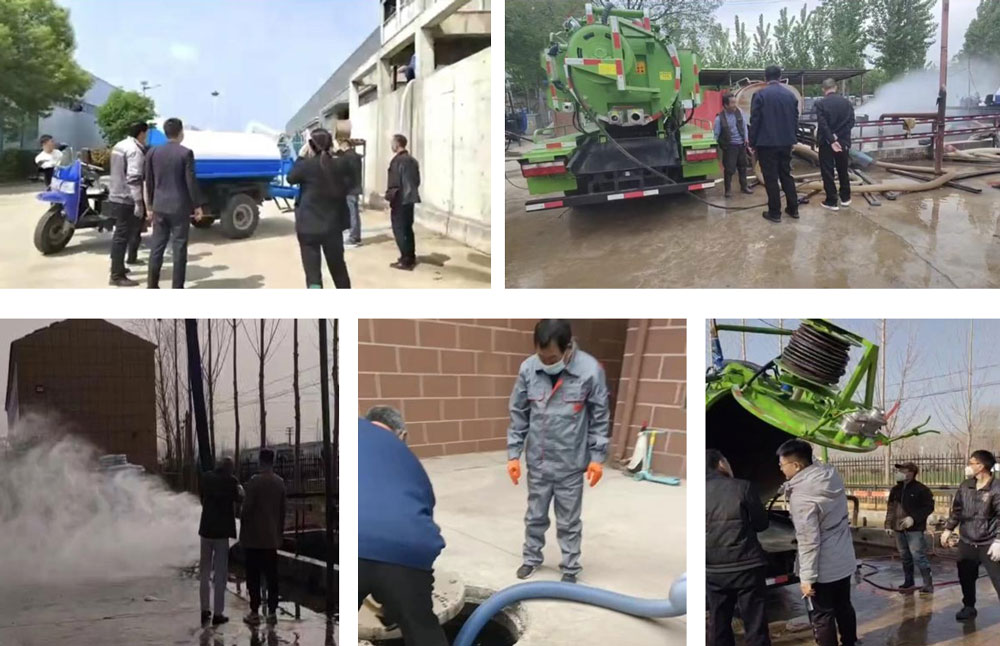

Model Function Picture Display
