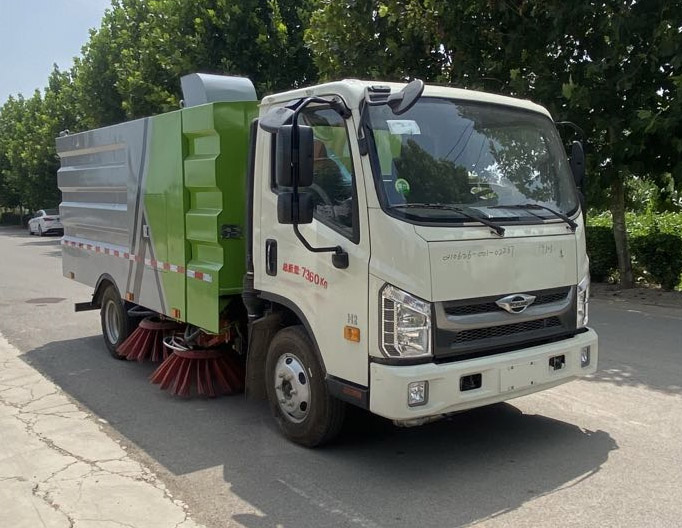

Park Sweepers
Advantages of park sweepers:

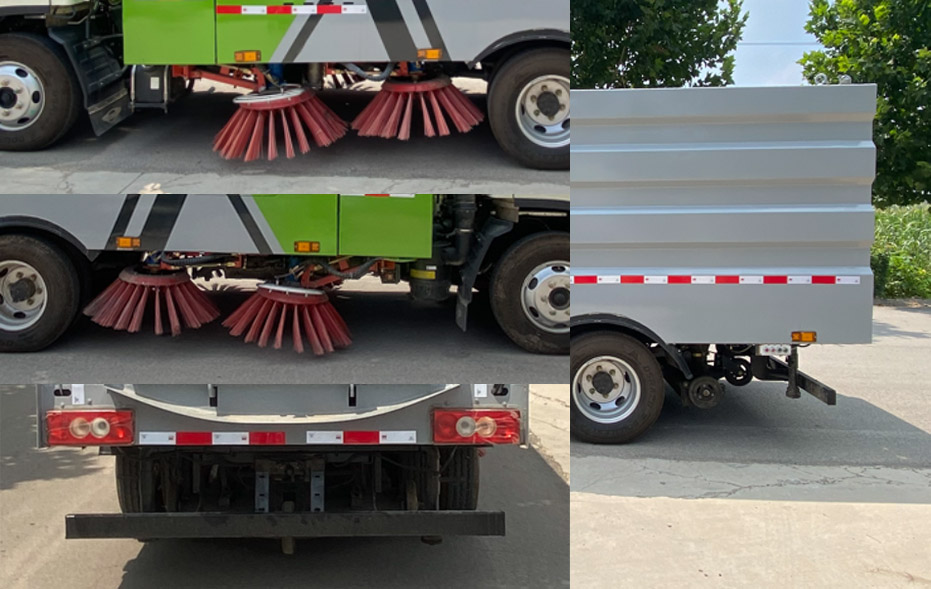

1. The structure of the cleaning device adopts a combination of scanning and suction, with two large scanning discs and a wide suction port, which can thoroughly clean up the garbage and thick dust and sand at the edges and corners of the road.
2. High quality imported components are used for hydraulic and electrical components, ensuring reliable performance.
Park sweepers can effectively clean various types of hard surfaces such as asphalt, cement, stone, terrazzo, or brick surfaces. They are particularly suitable for cleaning solid particles such as fallen leaves, cigarette butts, small stones, dust, regular household solid small garbage, and daily dust.
Product performance highlights:
1. It has two types of road sweeping modes, dry and wet, to avoid road icing caused by wet sweeping in winter. It can be better applied to various working conditions such as water shortage. The vehicle can sweep the road 24/7, ensuring the working effect, improving the efficiency of use, and reducing the working cost.
2. A dedicated suction port with a crushing device is designed for autumn urban roads with varying sizes and shapes of fallen leaves and branches. This vehicle can crush leaves and branches while achieving the goal of reducing collection (reducing the volume of leaves after crushing).
3. The dust suppression design inside the box avoids the occurrence of dust during operation. Advanced dust suppression and removal technologies such as negative pressure suction at the sweeping disc, real-time pulse cleaning of the filter element, and three-stage dust removal effectively curb the generation of dust during operation and ensure the continuous operation of the road sweeper for a long time.
4. The self-cleaning function of the dust removal filter element is automatically controlled by compressed air, which can pulse blow and clean the dust of the dust removal filter element; Alarm for blockage in the dust removal box, mandatory dust cleaning is carried out to ensure smooth air intake of the fan and prevent excessive negative pressure from damaging the filter element.
5. The dedicated controller for sanitation vehicles adopts the company's independently developed upper mounted controller, which has more advantages in environmental sanitation operation control, information exchange, fault diagnosis and protection.
Other advantages:
1. Optimization of key parameters of the fan, with greater suction power, higher net suction rate, and no dust at the edge brush.
2. In response to the spectral characteristics of the aerodynamic noise of the fan, a dedicated fan noise reduction device has been added, resulting in lower overall noise compared to similar products in the market.
3. The scanning and brushing work is stable and reliable without jumping, with a larger and softer avoidance distance.
4. Exclusive equipped with high-pressure water pump, with large water volume, high pressure, and good dust reduction effect during unloading. Equipped with a 15m hose reel and flushing gun, it has high pressure and good flushing effect on vehicles.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 384 |
Product Name | Product model | SGW5070TSLF | |
Total mass (Kg) | 7360 | Tank volume (m3) | |
Rated load capacity (Kg) | 2430,1600 | Dimensions (mm) | 6150x2050x2650 |
Curb weight (Kg) | 4800,5630 | Cargo compartment size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 2 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 27.7/12 | Front suspension/rear suspension (mm) | 1055/1787 |
Axle load (Kg) | 2640/4720 | Maximum speed (Km/h) | 110 |
remarks | This vehicle is used for clearing and collecting road debris and other pollutants; The dedicated device consists of a box and a cleaning device assembly; Only using a wheelbase of 3308mm Optional cab with chassis Side protection is replaced by specialized devices; The material used for the lower rear protective device is Q235, welded, with a cross-sectional size of 100mm x 50mm and a ground clearance height of 350mm ABS model/manufacturer: ABS/ASR-12V-4S/4M/Xiangyang Dongfeng Longcheng Machinery Co., Ltd Install a urea tank along with the chassis, choose a dedicated device layout, choose a cab style for the entire vehicle, and choose the exterior shape of the cabin Optional cab style with chassis. | ||
【Chassis Technical Parameters】 | |||
Chassis Model | EQ1075SJ3CDF | Chassis name | Truck chassis |
Trademark name | Dongfeng brand | manufacturing enterprise | Dongfeng Motor Corporation Limited |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 2700,2950,3308,3600,3800,2800 | ||
Tire specifications | 7.00R16,7.00R16LT,7.00R16LT 14PR,7.50R16LT 16PR | ||
Number of steel plate springs | 6/6+5,3/3+3,5/4+3,6/4+3,6/5+2,6/3+3,3/6+5,3/3+2,2/2,3/8+6,7/10+7,8/10+7 | Front wheel base (mm) | 1525,1519,1503,1613,1540 |
Fuel type | diesel oil | Rear wheel base (mm) | 1498,1516,1586,1670,1650,1800,1546 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
CY4BK461 CA4DB1-11E6 CY4BK161 D20TCIF1 Q28-130E60 H20-120E60 CA4DB1-13E6 YCY24140-60 D20TCIF11 Q23-115E60 ZD30D16-6N M9T-600 Q23-136E60 Q23-132E60 YCY24120-60 O25-152E60 YN25PLUS160B D20TCIF61 YCY24155-61A Q25N-152E60 ZD25D16-6D Q25D-162E60 Q25A-150E60 | Dongfeng Chaoyang Chaochai Power Co., Ltd China FAW Group Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Kunming Yunnei Power Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd China FAW Group Co., Ltd Guangxi Yuchai Machinery Co., Ltd Kunming Yunnei Power Co., Ltd Anhui Quanchai Power Co., Ltd Dongfeng Light Engine Co., Ltd Dongfeng Light Engine Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd Anhui Quanchai Power Co., Ltd Kunming Yunnei Power Co., Ltd Kunming Yunnei Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd Anhui Quanchai Power Co., Ltd Dongfeng Light Engine Co., Ltd Anhui Quanchai Power Co., Ltd The company Anhui Quanchai Power Co., Ltd | 3707 2207 3856 1999 2800 2000 2207 2360 1999 2300 2953 2298 2300 2300 2360 2493 2499 1999 2360 2496 2499 2496 2496 | 130 110 143 125 130 122 130 140 125 115 163 143 135 132 120 152 155 140 155 152 163 158 150 |
