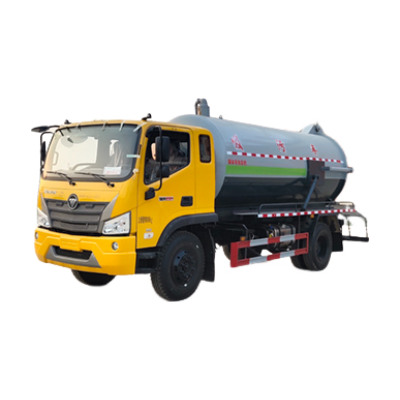

Sewage Dry Wet Separation Vehicle
Sewage dry wet separation vehicle: equipped with hand push spray bar, high-pressure roller automatic storage device, handheld spray gun and other devices, it can achieve front linear high-pressure water curtain cleaning, rear manual spray gun flushing, hand push spray bar cleaning and other operations.
Monitoring system for the operation status of sewage dry wet separation vehicle
equipment: It can instantly display the operating conditions of equipment such as
oil pressure, water pressure, speed, vacuum degree, water level, and high-pressure
hose conveying length.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Product model | 347 (Extended) |
Product Name |
Tank volume (m3) | SGW5163GXWF | |
Total mass (Kg) | 16000 | External dimensions (mm) | 10.52 |
Rated load capacity (Kg) | 8405 | Cargo size (mm) | 7700,8050×2500×3300 |
Curb weight (Kg) | 7400 | Total mass of quasi trailer (Kg) | ×× |
Rated passenger capacity (person) | Maximum load capacity of saddle (Kg) | ||
Cab capacity (persons) | 3 | Front/rear suspension (mm) | |
Approach Angle/Departure Angle (degrees) | 20/11,20/10 | Maximum speed (km/h) | 1235/2265,1235/2315 |
Axle load (Kg) | 5400/10600 | Product model | 80 |
remarks | Special equipment for cargo truck chassis: tank and pump, mainly used for sewage sludge suction, cleaning, loading and unloading. Transport medium: liquid sewage, medium density: 800 kg/cubic meter; Effective volume of tank: 10.52 cubic meters. Corresponding relationship between vehicle length (mm)/wheelbase (mm)/tank external dimensions (straight section length × diameter) (mm): 8050/4500/4700 × 17007700/4200/4400 × 1700. Protective material: Q235, connection method: welding connection is used for both side and lower rear protection, and the cross-sectional size of lower rear protection (mm) is 120 × 50. Ground clearance height of lower rear protection (mm) is 440. The ABS model is CM4XL-4S/4M, produced by Guangzhou Ruili Kemi Automotive Electronics Co., Ltd., and the fuel tank position is optional with the chassis. | ||
【Chassis Technical Parameters】 | |||
Chassis Model | BJ5164JQZHPDD-01 | Chassis name | Truck crane chassis |
Trademark name | Futian brand | manufacturing enterprise | Beiqi Foton Motor Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 4200,4500,3700,3900 | ||
Tire specifications | 10.00R20 18PR,9.00R20 16PR | ||
Number of steel plate springs | 10/12+9 | Front wheel base (mm) | 1728,1740,1760,1780 |
Fuel type | diesel oil | Rear wheel base (mm) | 1760,1780,1728,1740 |
Emission standards | GB3847-2005,GB17691-2018 National VI | ||
Engine model | Power (Kw) | Power (Kw) | Power (Kw) |
WP3NQ160E61 WP4.1NQ190E61 | Weichai power company limited Weichai power company limited | 2970 4088 | 118 140 |
