Customized fecal suction truck
Our company specializes in manufacturing and supporting customization of various sizes of environmental sanitation vehicles, including suction trucks, fecal suction trucks, cleaning suction trucks, high-pressure cleaning trucks, joint dredging trucks, mobile sewage treatment trucks, mobile sewage purification trucks, etc. We have a complete range of varieties, novel styles, large manufacturers, guaranteed quality, and favorable prices
How much is the price of a customized fecal suction truck?
A current vehicle | Imported fecal suction truck
You can contact us if you need it! Professional manufacturer！

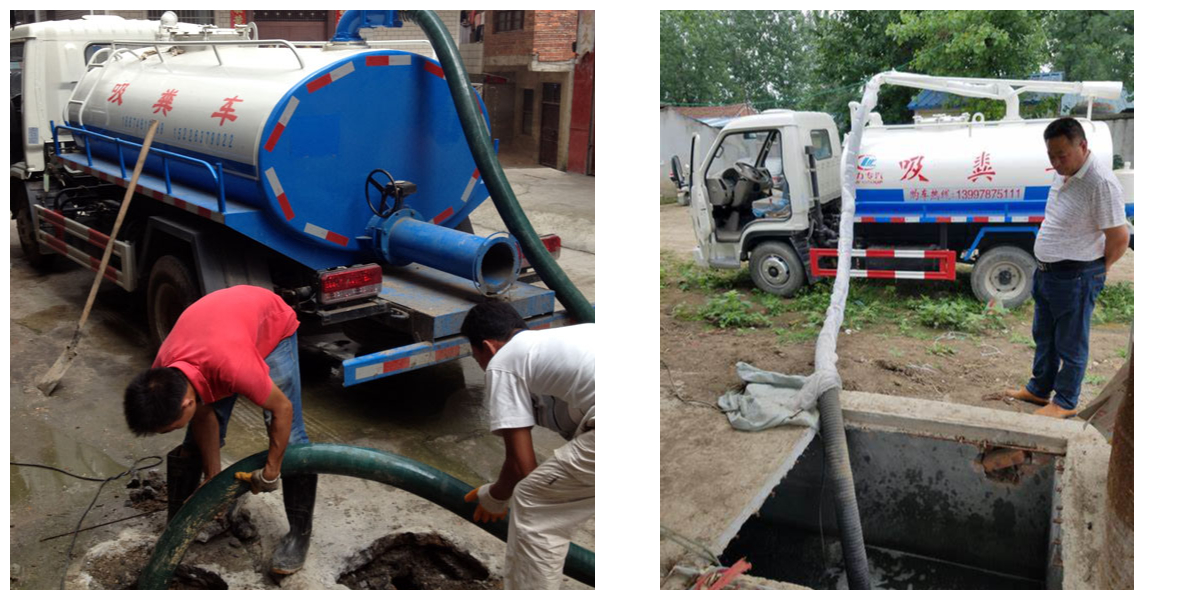

Customized fecal suction truck operating system:
The self suction and self discharge of dirt in the tank can be completed by operating the handle of the
multi way directional valve (four-way valve). When operating the multi way directional valve, a power
take-off should be attached to drive the vacuum suction pump. The suction truck should be equipped
with a high-power vacuum pump with high suction and long suction range, a float level controller, and
an electronic alarm device; Install anti overflow devices to prevent sewage from being filled and poured
back into the vacuum pump system. Install large-diameter sewage valves to facilitate the clean distribution
of various pollutants and sludge. The top of the tank is windowed, allowing access to clean sediment inside
the tank. It can be self-priming and self draining, making it easy to use.
product details ：
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement batch | 345 |
Product Name | Fecal suction truck | Product model | SGW5160GXEEQ6 |
Total mass (Kg) | 16000 | Tank volume (m3) | 11.7 |
Rated load capacity (Kg) | 9060,8995 | External dimensions (mm) | 7540×2500×3200 |
Curb weight (Kg) | 6810 | Cargo size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 2,3 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 23/15 | Front/rear suspension (mm) | 1320/2270,1515/2075 |
Axle load (Kg) | 5600/10400 | Maximum speed (km/h) | 89 |
remarks | The side rear protection is welded with Q235 material, and the cross-sectional size of the rear protection (mm) is 120 × 60. The height of the rear protection above the ground (mm) is 490. The vehicle is used for cleaning and collecting feces and sewage, and the main devices are the tank and pump. The transport medium is liquid sewage, with a medium density of 800 kg/cubic meter. The effective volume of the tank is 11.7 cubic meters. The tank size is (length x long axis x short axis) (mm): 4400 × 2350 × 1450. It is only equipped with a 3950mm wheelbase ABS manufacturer; Dongke Knorr Commercial Vehicle Braking System (Shiyan) Co., Ltd., Zhejiang Wan'an Technology Co., Ltd., model: 3631010-C2000, VIE ABS - Ⅱ. Optional cab style with chassis | ||
【Chassis Technical Parameters】 | |||
Chassis Model | EQ1160GSZ6DJ | Chassis name | Truck chassis |
Trademark name | Dongfeng brand | manufacturing enterprise | Dongfeng Commercial Vehicle Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 3950,4500,4700,5100,3400,3650,3800,4200 | ||
Tire specifications | 9.00R20 16PR,10.00-20 16PR,10.00-20 18PR,10.00R20 16PR,10.00R20 18PR,275/80R22.5 16PR,275/80R22.5 18PR | ||
Number of steel plate springs | 8/10+8,11/11+10 | Front wheel base (mm) | 1750,1800,1860,1910,1940 |
Fuel type | diesel oil | Rear wheel base (mm) | 1650,1700,1750,1800,1860 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
D4.0NS6B170 D4.0NS6B195 B6.2NS6B210 YCY30165-60 YCS04180-68 WP3NQ160E61 YCDV4261-185 WP4.6NQ220E61 WP4.1NQ190E61 | Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Guangxi Yuchai Machinery Co., Ltd Guangxi Yuchai Machinery Co., Ltd Weichai power company limited Guangxi Yuchai Power Co., Ltd Weichai power company limited Weichai power company limited | 4000 4000 6200 2970 4156 2970 4156 4580 4088 | 125 143 154 121 132 118 135 162 140 |
Product transportation:
