Septic Tank Vacuum Truck

Septic tank vacuum truck equipped with:

Vacuum suction pump

The rear door can be opened hydraulically


Contact Now E-Mail Telephone
Product Details

Septic tank vacuum truck:

It is an essential sanitation vehicle for urban environmental treatment.

When driving a suction truck in winter, fogging of the cab glass is a common problem.

If the fog is not treated, it is particularly dangerous to drive.

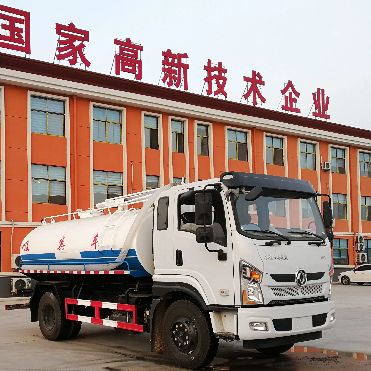

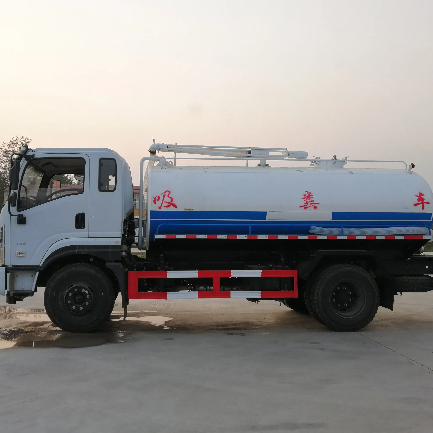

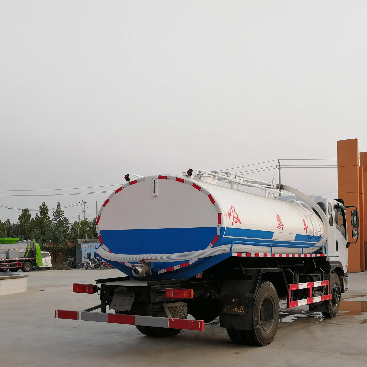

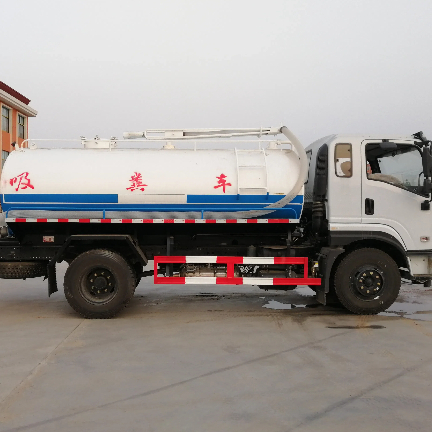

Septic tank vacuum truck.jpgSeptic tank vacuum truck.jpg

Septic tank vacuum truck.jpgSeptic tank vacuum truck.jpg






【Technical parameters of the entire vehicle】

Product trademark

Xiangnongda brand

Announcement batch

345 (Extended)

Product Name

Fecal suction truck

Product model

SGW5163GXEF

Total mass (Kg)

16000

Tank volume (m3)

11.5

Rated load capacity (Kg)

9105,9170

External dimensions (mm)

7400×2500×3100

Curb weight (Kg)

6700

Cargo size (mm)

××

Rated passenger capacity (person)


Total mass of quasi trailer (Kg)


Cab capacity (persons)

3,2

Maximum load capacity of saddle (Kg)


Approach Angle/Departure Angle (degrees)

21/12

Front/rear suspension (mm)

1440/2010

Axle load (Kg)

5600/10400

Maximum speed (km/h)

89

remarks

The vehicle is equipped with a tank and pump, which are used for suction and discharge of feces. Transport medium: liquid waste; Medium density: 800 kilograms per cubic meter. Effective capacity of the tank: 11.5 cubic meters. Dimensions of the tank body (length x long axis x short axis) (mm): 4400 x 2350 x 1450. Protective material: Q235A, connection method: Welding connection is used for the left and right sides as well as the lower rear protection. The cross-sectional size of the lower rear protection (mm) is 120 × 50. Rear lower protection height above ground (mm): 450. The car is only equipped with a 3950mm wheelbase. Equipped with ABS, model/manufacturer: 3631010-C2000/Dongke Knorr Bremse Commercial Vehicle Braking System (Shiyan) Co., Ltd., ABS-E 4S/4M/manufacturer: WABCO Automotive Control Systems (China) Co., Ltd. Optional cab with chassis. Optional fuel tank position with chassis

【Chassis Technical Parameters】

Chassis Model

DFV1163GDP6DJ1

Chassis name

Truck chassis

Trademark name

Dongfeng brand

manufacturing enterprise

Dongfeng Commercial Vehicle Xinjiang Co., Ltd

Number of axes

2

Number of tires

6

Wheelbase (mm)

3800,3950,4200,4500,4700,5100,5300,5600

Tire specifications

10.00R20 18PR,275/80R22.5 18PR,9.00R20 16PR,10.00R20 16PR

Number of steel plate springs

8/10+7,8/10+8,3/4+3,3/10+8

Front wheel base (mm)

1810,1880,1940,1965,1910

Fuel type

diesel oil

Rear wheel base (mm)

1800,1820,1860

Emission standards

GB17691-2018 National VI

Engine model

Engine manufacturing enterprises

Emissions(ml)

Power (Kw)

D4.5NS6B190

D4.0NS6B160

D4.0NS6B195

B6.2NS6B210

D4.0NS6B170

B6.2NS6B230

YCS04200-68

YCS04160-68

YCY30165-60

YCS04180-68

D6.7NS6B230

D4.5NS6B220

D30TCIF1

YCK05230-61

Dongfeng Cummins Engine Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Kunming Yunnei Power Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

4500

4000

4000

6200

4000

6200

4156

4156

2970

4156

6700

4500

2977

5132

140

118

143

154

125

169

147

118

121

132

169

162

125

169

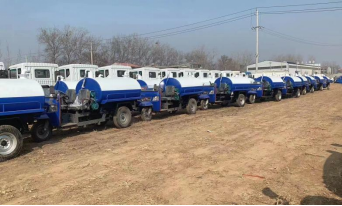

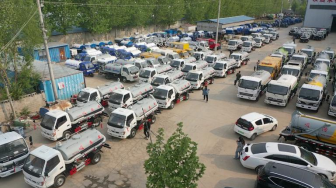

Factory photos.pngFactory photos.png

Factory photos.pngFactory photos.png

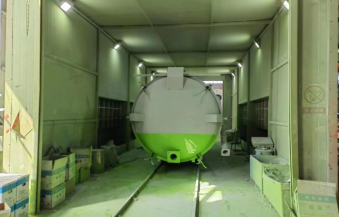

Workshop photos.pngWorkshop photos.png

Workshop photos.pngWorkshop photos.png
