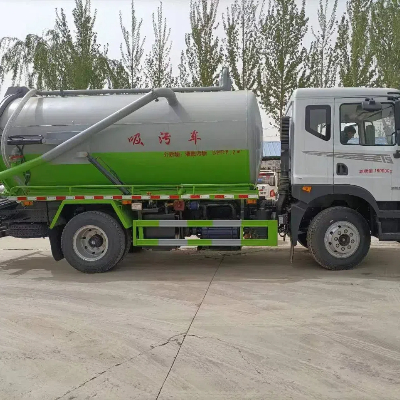

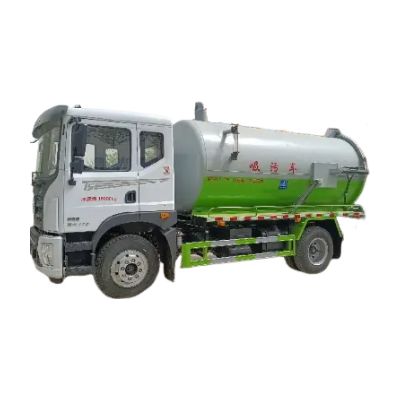

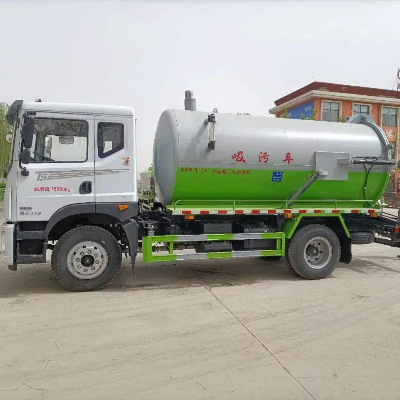

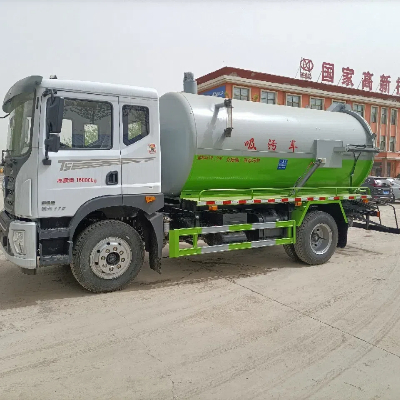

Environmental Sanitation Suction Truck

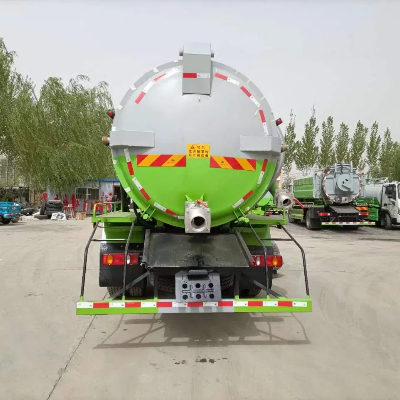

The Environmental Sanitation Success Truck is equipped with a high-power vacuum suction pump and a high-quality hydraulic system on board. The tank head is formed by one-time die-casting, the tank can be opened backwards, and the double top is self dumping.
The Xiangnong environmental sanitation suction truck is suitable for urban and rural areas, as well as residential properties, to suction and transport liquid substances such as feces and mud. The suction, transportation, and discharge of sediment in the sewer system, especially larger objects such as mud, silt, stones, and bricks that can be sucked up. It has the characteristics of high vacuum degree, large tonnage, high efficiency, and wider application. It can also be used to pull water for firefighting in emergency situations!
Vehicle configuration:
3950 wheelbase, Yuchai engine, 170 horsepower, 8-speed gearbox, original car high and low speeds, original car air conditioning, 900 steel wire tires, other standard equipment, using high-power dedicated vacuum pump with fast suction speed, fully automatic welding technology for the tank body, single-sided welding and double-sided forming, sandblasting and spray coating process corrosion-resistant and acid and alkali resistant, equipped with a 10 meter suction pipe that is sturdy and durable, hydraulic lifting function for the tank body, and rear cover that can be opened! Easy to operate, high efficiency!
working principle:
The vehicle is started, the power take-off is attached, and the suction pump is driven. The suction pump operates to extract air from the sewage tank. As the suction hose is always submerged in the liquid surface, the air in the sewage tank becomes thinner and thinner due to the lack of replenishment. As a result, the pressure inside the tank is lower than atmospheric pressure, and the sewage enters the tank through the suction hose under atmospheric pressure.The tank design is simple to operate and easy to transport, bringing great convenience to urban cleaning work.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Product model | 345 (Extended) |
Product Name | Tank volume (m3) | SGW5162GXWF | |
Total mass (Kg) | 16000 | External dimensions (mm) | 11.2 |
Rated load capacity (Kg) | 8705,8770 | Cargo size (mm) | 7650×2500×3450 |
Curb weight (Kg) | 7100 | Total mass of quasi trailer (Kg) | ×× |
Rated passenger capacity (person) | Maximum load capacity of saddle (Kg) | ||
Cab capacity (persons) | 3,2 | Front/rear suspension (mm) | |
Approach Angle/Departure Angle (degrees) | 17/12 | Maximum speed (km/h) | 1250/2450 |
Axle load (Kg) | 5600/10400 | Product model | 88 |
remarks | This vehicle is equipped with specialized devices such as tanks and pumps, mainly used for sewage sludge suction, cleaning, loading and unloading. Transport medium: liquid waste: medium density: 800 kg/cubic meter. Effective capacity of the tank: 11.2 cubic meters. The dimensions of the tank body (length of straight section x diameter) are (mm): 4200 x 1800. Protective material: Q235A, connection method: Welding connection is used for the left and right sides as well as the lower rear protection. The cross-sectional size of the lower rear protection (mm) is 120 × 50. Rear lower protection height above ground (mm): 450. The car is only equipped with a 3950mm wheelbase. The ABS model and manufacturer are: 3631010-C2000/Dongke Knorr Bremse Commercial Vehicle Braking System (Shiyan) Co., Ltd., J ABS/Jiaozuo Borek Control Technology Co., Ltd. Optional cab with chassis. Optional fuel tank position with chassis | ||
【Chassis Technical Parameters】 | |||
Chassis Model | EQ1160GL6DJ | Chassis name | Truck chassis |
Trademark name | Dongfeng brand | manufacturing enterprise | Dongfeng Motor Group Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 3950,4200,4500,4700,5100,5600 | ||
Tire specifications | 9.00R20 16PR | ||
Number of steel plate springs | 9/11+8,9/10+8 | Front wheel base (mm) | 1820,1920,1950 |
Fuel type | diesel oil | Rear wheel base (mm) | 1800,1860 |
Emission standards | GB3847-2005,GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
YCS04200-68 YCS04160-68 D30TCIF1 YCY30165-60 YCS04180-68 D25TCIF1 YCY30170-60 | Guangxi Yuchai Machinery Co., Ltd Guangxi Yuchai Machinery Co., Ltd Kunming Yunnei Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd Guangxi Yuchai Machinery Co., Ltd Kunming Yunnei Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd | 4156 4156 2977 2970 4156 2499 2970 | 147 118 125 121 132 110 125 |
