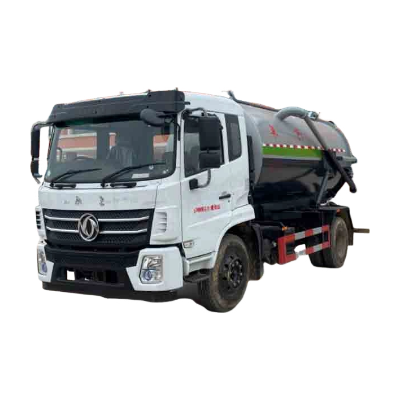

Pure Electric Suction Truck
The pure electric sewage suction system has high suction power and efficiency, and can effectively suck up larger objects such as silt, sand, gravel, and broken bricks.

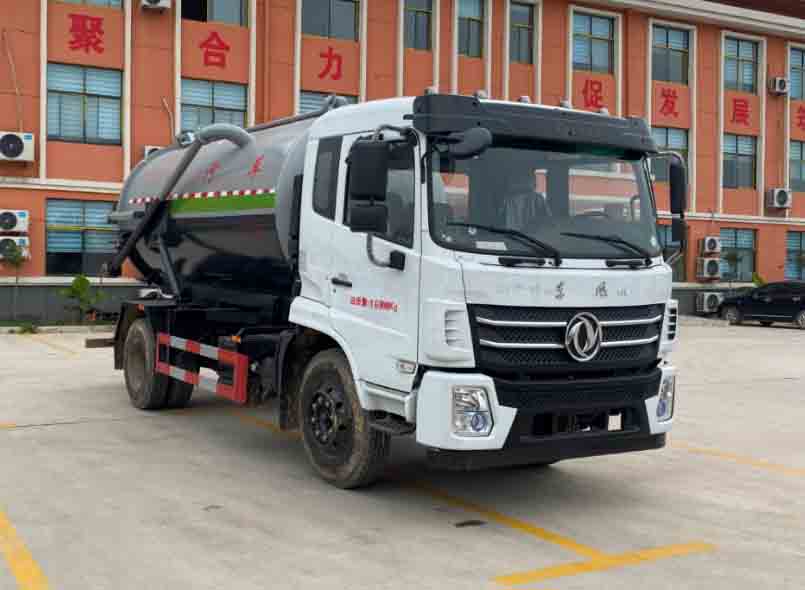

This model is based on the chassis of a cargo truck and is modified with components such as pressure tanks, vacuum suction systems, hydraulic systems, spill valves, and hand washing devices. The car has a simple appearance, reliable quality, easy operation, high suction power, and long suction range.
The dedicated part of the sewage suction truck consists of a power take-off, a transmission shaft, a sewage suction pump, a pressure tank, a hydraulic system, a pipeline system, a vacuum pressure gauge, an overflow valve, and a hand washing device. The tank of this model can open the back cover, lift and dump, and the dirt can be directly dumped through the back cover, with high efficiency.
This product has low requirements for environmental conditions and can be used to suction and clean various liquid and semi liquid pollutants such as silt, sand, sewage, feces, crushed stones, and broken bricks in ditches and sewers. It can also be used for the suction and transportation of wastewater and sediment in industries such as oil refining, steel, chemical and environmental sanitation.

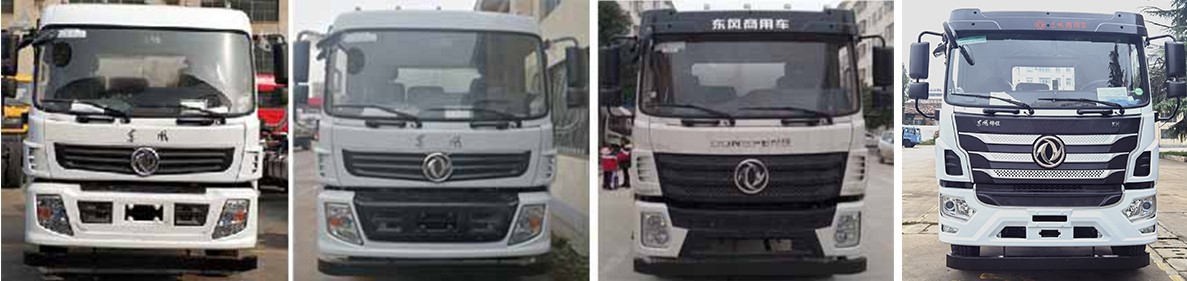

1.This product adopts EQ1160GSZ6DJ chassis, with strong power and reliable quality, and has been recognized by the market. This chassis can be equipped with air conditioning, driving recorder, power steering, and ABS braking system, providing a safe and comfortable driving environment for the driver.

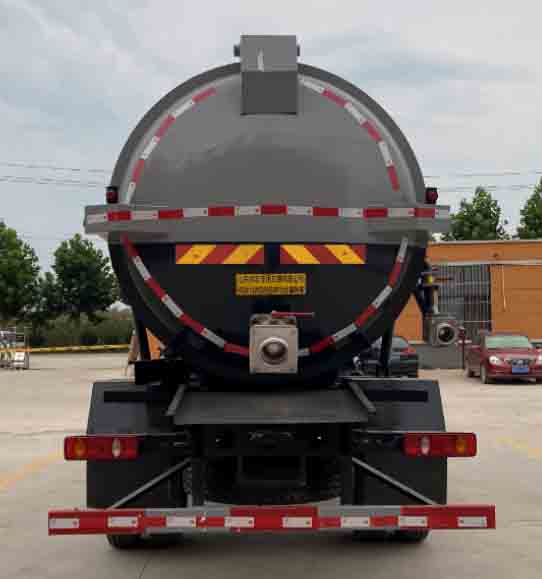

2. The material of the tank body is high-quality steel, and the head is formed by one-time die-casting. The tank body is equipped with a partition, and the back cover can be opened and flipped for self dumping. The overall structure is simple, reliable, and has a large capacity. The interior of the tank has been pre treated and coated with rust primer for efficient corrosion prevention.
3. The vacuum pump, four-way valve and other suction system components are all made of well-known domestic brand components, which have the characteristics of strong suction and high efficiency. Each gas circuit component adopts products from well-known domestic brands, with stable performance and reliable quality.
4. This model adopts a hydraulic control system. Easy to operate, the opening and closing of the tank tail cover and the lifting and lowering of the tank can be completed by pushing and pulling the handle. There is a hand washing device at the rear of the vehicle that can store clean water, which can be used by the operator to clean after completing their work. This product is equipped with an anti overflow valve and a full tank alarm function, which can prevent sewage and impurities from entering the suction system after the tank is filled, thereby damaging the suction system. The suction system is equipped with a vacuum pressure gauge, which can detect the internal pressure of the tank in real time and reflect the operating status of the system. The lower end of the tank is equipped with a safety support rod, which can provide safety support during lifting, maintenance, and repair of the tank
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 371 (Extended) |
Product Name | Product model | SGW5169GXWF | |
Total mass (Kg) | 16000 | Tank volume (m3) | 11.2 |
Rated load capacity (Kg) | 8770,8705 | Dimensions (mm) | 7650×2500×3400 |
Curb weight (Kg) | 7100 | Cargo compartment size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 2,3 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 23/16 | Front suspension/rear suspension (mm) | 1475/2225,1515/2185 |
Axle load (Kg) | 5600/10400 | Maximum speed (Km/h) | 89 |

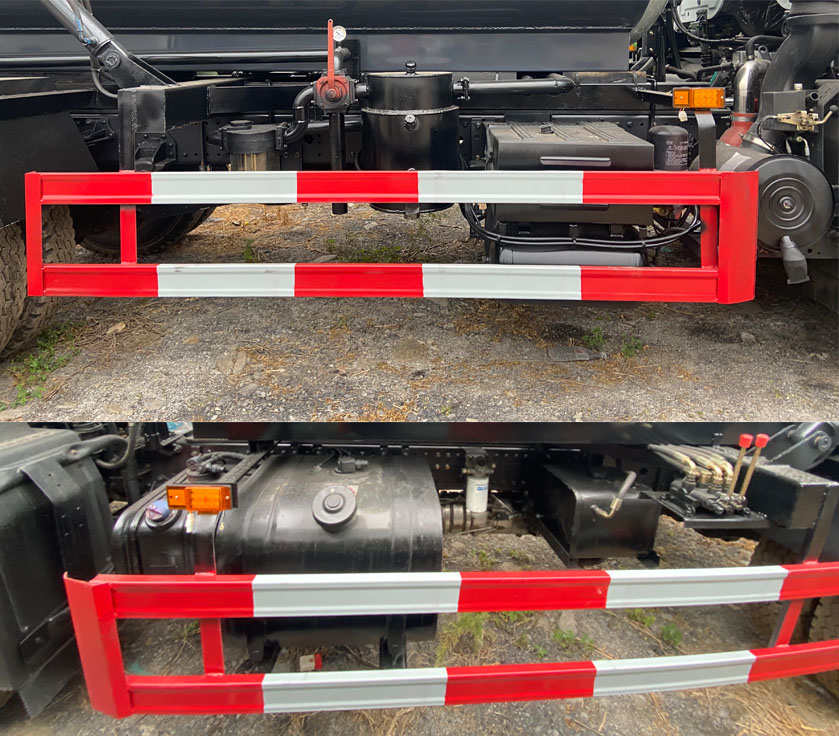

Product trademark | ABS model: 3631010-C2000, VIE ABS-II; ABS production enterprises: Dongke Knorr Bremse Commercial Vehicle Braking System (Shiyan) Co., Ltd., Zhejiang Wan'an Technology Co., Ltd; Optional description: The driver's cab is optional with the chassis; Only using 3950mm wheelbase; Side rear protection situation: The side rear protection materials are all made of Q235, and the connection method with the vehicle is welding The height of the rear defense above the ground is 450mm, and the cross-section is 120mm x 50mm; Effective volume of tank (cubic meter), external dimensions of tank (mm): Total volume of tank: 11.2 cubic meters, effective volume: 10.88 cubic meters The size of the tank body is (straight section length x diameter) (mm): 4200 x 1800; Special functions and devices: The vehicle's dedicated devices include tanks and pumps, mainly used for sewage sludge suction, cleaning, etc; Optional fuel tank position with chassis Optional water circulation pump device, optional tank side ladder, optional left and right platform styles | ||
【Chassis Technical Parameters】 | |||
Chassis Model | EQ1160GSZ6DJ | Chassis name | Truck chassis |
Trademark name | Dongfeng brand | manufacturing enterprise | Dongfeng Commercial Vehicle Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 3950,4500,4700,5100,3400,3650,3800,4200,5800,7100 | ||
Tire specifications | 9.00R20 16PR,10.00-20 16PR,10.00-20 18PR,10.00R20 16PR,10.00R20 18PR,275/80R22.5 16PR,275/80R22.5 18PR,295/60R22.5 14PR,295/60R22.5 16PR,295/60R22.5 18PR | ||
Number of steel plate springs | 8/10+8,11/11+10,3/4+3 | Front wheel base (mm) | 1750,1800,1860,1910,1940 |
Fuel type | diesel oil | Rear wheel base (mm) | 1650,1700,1750,1800,1860 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions(ml) | Power (Kw) |
D4.0NS6B195 D4.0NS6B170 YCY30165-60 YCS04180-68 WP4.1NQ190E61 B6.2NS6B210 YCDV4261-185 WP4.6NQ220E61 WP3NQ160E61 YCS06200-60 YCS04200-68 DDi47E210-60 YCY30170-60 | Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Guangxi Yuchai Machinery Co., Ltd Guangxi Yuchai Machinery Co., Ltd Weichai power company limited Dongfeng Cummins Engine Co., Ltd Guangxi Yuchai Power Co., Ltd Weichai power company limited Weichai power company limited Guangxi Yuchai Machinery Co., Ltd Guangxi Yuchai Machinery Co., Ltd Dongfeng Commercial Vehicle Co., Ltd Guangxi Yuchai Machinery Co., Ltd | 4000 4000 2970 4156 4088 6200 4156 4580 2970 6234 4156 4750 2970 | 143 125 121 132 140 154 135 162 118 147 147 154 125 |
