High Quality Sewage Suction Truck
In addition to the significant advantage of long endurance, high-quality sewage absorbing vehicles also attach great importance to vehicle quality and stability. A combination of high-strength steel and high-strength aluminum alloy is used to create a "steel tendon and iron frame". Its casting integrated crossbeam technology combines the advantages of integration and lightweight, further improving transportation efficiency and flexibility. Make the whole vehicle more reliable and safe.
The modified part of this product mainly consists of the tank body, hydraulic opening tank door, suction pipe system,
hydraulic system, and operating system.
1、The sewage tank is equipped with a liquid level indicator, which is made of 6mm high-quality steel plate rolled and welded.
The end is welded with a 6mm thick high-quality steel plate elliptical head. To improve the strength and rigidity of the tank,
there are reinforcement plates. The bottom is welded with a U-shaped support beam, which is used for tight fitting with the
main beam and bearing the force of lifting, tilting, and unloading. The tank door is designed to be fully open, and the tank
mouth is reinforced with an integral flange. The rear end of the tank is hinged to the subframe on the chassis longitudinal
beam using a tilting hinge shaft.
2. The can door can be opened. The can door is made of 6mm thick high-quality steel plate molded and welded with a 25mm
thick overall circular flange. The flange is equipped with an annular groove for installing high-quality rubber sealing rings to
ensure the sealing of the opening and closing tank doors. There are four manual locking devices installed around to ensure the
sealing of the tank body. The tank door is opened and closed by two hydraulic cylinders, making it very convenient to clean the
residual liquid and sediment inside the sewage tank.
3. Drive system: This vehicle is equipped with a water ring pump. The water ring pump is driven by a side power take-off.
4. Vacuum pumping system: The vacuum pumping system mainly consists of a water ring pump, check valve, air filter, ball valve,
and pipeline, and has functions such as vacuum pumping and self discharge. The vacuum suction pipeline is connected from the
top of the tank, and a check valve is installed on the vacuum suction pipeline to prevent liquid from being sucked into the vacuum
pump. The gas is initially filtered by the centrifugal force generated by the air flow, and then filtered through a filter screen to
prevent premature wear of the vacuum pump.
5. Hydraulic system: The lifting and unloading of the tank body and the opening and closing of the tank door are powered by an
oil pump and controlled by a directional valve.
6. Operating system: The lifting and unloading of the tank body and the opening and closing of the tank door are operated by
hydraulic multi way valves.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 347 (Extended) |
Product Name | Product model | SGW5184GXWF | |
Total mass (Kg) | 18000 | Tank volume (m3) | 12.28 |
Rated load capacity (Kg) | 9655,9720 | Dimensions (mm) | 7850×2500×3400 |
Curb weight (Kg) | 8150 | Cargo compartment size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 3,2 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 17/12 | Front suspension/rear suspension (mm) | 1400/1950 |
Axle load (Kg) | 6500/11500 | Maximum speed (Km/h) | 89 |

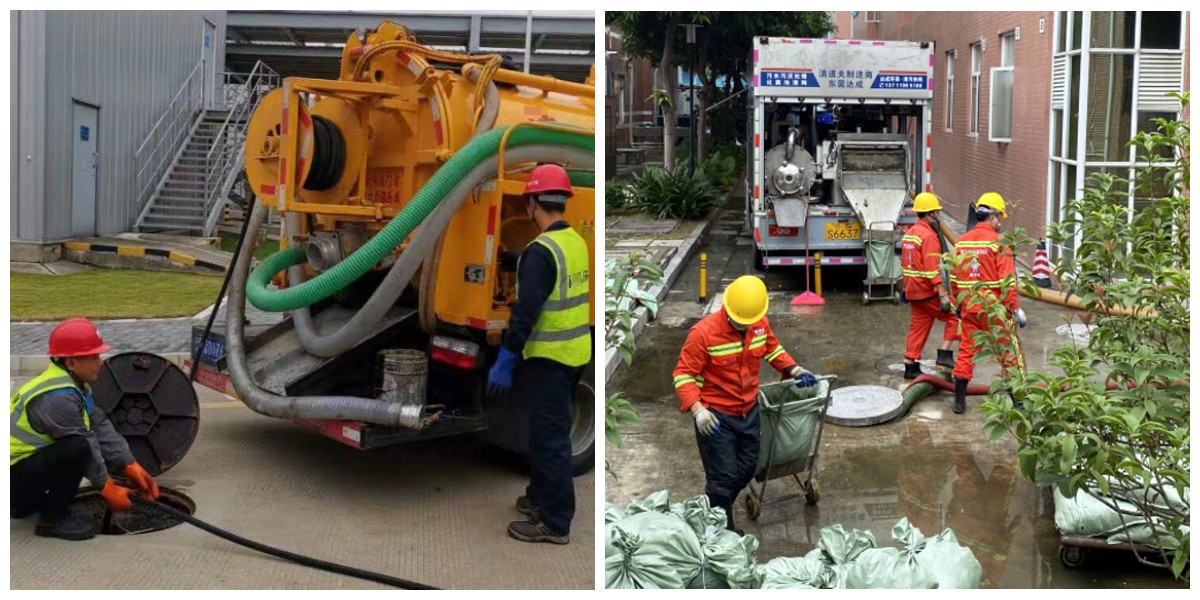

remarks | This vehicle is equipped with specialized devices such as tanks and pumps, mainly used for sewage sludge suction, cleaning, loading and unloading. Transport medium: liquid waste: medium density: 800 kg/cubic meter. Effective capacity of the tank: 12.28 cubic meters. The dimensions of the tank body (length of straight section x diameter) are (mm): 4600 x 1800. Protective material: Q235A, connection method: Welding connection is used for the left and right sides as well as the lower rear protection. The cross-sectional size of the lower rear protection (mm) is 120 × 50. Rear lower protection height above ground (mm): 450. ABS manufacturer: Changchun Ruili Kemi Automotive Electronics Co., Ltd., model: CM4XL Install a driving recorder with satellite positioning function. Optional cab with chassis. Optional fuel tank position with chassis. Optional rear flip bracket and drain outlet size. Only equipped with a 4500mm wheelbase. Optional tank body style. | ||
【Chassis Technical Parameters】 | |||
Chassis Model | CA1180P62K1L2A1E6Z | Chassis name | Flat head diesel truck chassis |
Trademark name | Jiefang brand | manufacturing enterprise | China FAW Group Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 5300,5000,4700,4500,5600,5800,4200,4000,3800 | ||
Tire specifications | 10.00R20,11.00R20,295/80R22.5,275/80R22.5 | ||
Number of steel plate springs | 10/12+8,12/12+8,13/12+8,7/7+6,9/12+8,12/10+9,7/7+3 | Front wheel base (mm) | 1928,1827,1950,1938 |
Fuel type | diesel oil | Rear wheel base (mm) | 1878,1860 |
Emission standards | GB3847-2005,GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
CA4DK1-18E6 CA4DK1-22E6 CA6DH1-22E6 CA6DH1-24E6 D6.7NS6B230 CA4DK1-22E61 CA6DH1-22E61 CA6DH1-24E61 | China FAW Group Co., Ltd China FAW Group Co., Ltd China FAW Group Co., Ltd China FAW Group Co., Ltd Dongfeng Cummins Engine Co., Ltd China FAW Group Co., Ltd China FAW Group Co., Ltd China FAW Group Co., Ltd | 4764 4764 5700 5700 6700 4764 5700 5700 | 139 165 165 179 169 165 165 179 |
For more pictures, models, parameters, configurations, and prices of sewage suction vehicles, please call us for consultation.
