Large Cleaning And Suction Truck
15 square high-pressure cleaning suction truck, septic tank and other site cleaning specialized vehicles have high work efficiency.

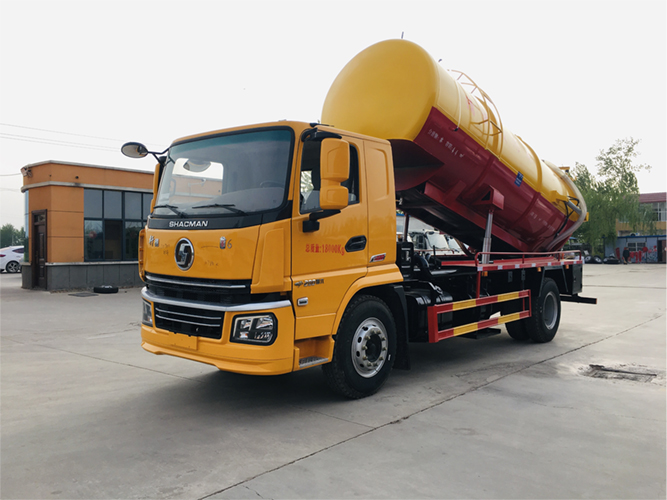

The tank of the high-pressure cleaning suction truck has a lifting and self
dumping function.
The cleaning and suction truck utilizes powerful high-pressure water jet technology to
clean in a high-pressure, low flow manner, effectively removing dirt and saving water
It can clean the old stains on the pipe wall and road surface to achieve the best
flushing effect and clear the sewer. The main function of the cleaning and suction
dual-use vehicle is to clear blocked areas in the sewer that workers cannot reach.
Widely applicable for dredging sediment and dead corners in sewage channels,
urban sculptures, washing and absorbing sewage from glass exterior walls, spraying
alcohol for landscaping, high-pressure road surface washing, etc.
Total mass (Kg) | 18000 | Tank volume (m3) | 6.96 |
Rated load capacity (Kg) | 5370,5305 | External dimensions (mm) | 9100×2550×3690 |
Curb weight (Kg) | 12500 | Cargo size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 2,3 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 21/9 | Front/rear suspension (mm) | 1340/2760 |
Axle load (Kg) | 6500/11500 | Maximum speed (km/h) | 89 |
remarks | Extend 300mm backwards; The specialized equipment for this vehicle mainly consists of a vacuum pump and a tank, which are used for sewage discharge and dredging; The tank has a lifting function; The clean water tank and the sewage tank are two independent tanks. The clean water tank is used for cleaning function, and the sewage tank is used for suction function. The cleaning and suction functions cannot be used simultaneously, and the two tanks cannot be fully loaded at the same time; The tank size is (straight section length x diameter) (mm): 4700 x 1950, with the front section of the tank being a clear water tank (straight section length 2040mm); The rear section is a sewage tank (with a straight length of 2660mm), with a total capacity of 6.96 cubic meters and an effective volume of 6.63 cubic meters. The total capacity of a clean water tank is 5.57 cubic meters and an effective volume of 5.3 cubic meters; The side/rear protective materials are both Q235. The side protection is connected by bolts, and the rear protection is connected by welding. The cross-sectional size of the rear protection is 50 × 300mm, and the lower edge is 460mm above the ground; ABS model: ZQFB-V; ABS manufacturing enterprise: Xi'an Zhengchang Electronics Co., Ltd; The rear axle only adopts steel plate spring suspension; There is a work lighting fixture installed above the rear of the tank, which is only used during operation and does not turn on during driving. Optional sample vehicle appearance and rear structure, optional post-processing style. | ||
【Chassis Technical Parameters】 | |||
Chassis Model | SX1189LA1F1C | Chassis name | chassis |
Trademark name | Shaanxi Automobile Brand | manufacturing enterprise | Shaanxi Automobile Group Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 4500,3800,4200,4700,5100,5300,4000,5600,3900 | ||
Tire specifications | 10.00R20 18PR,11R22.5 18PR,295/80R22.5 18PR | ||
Number of steel plate springs | 10/9+6,3/4+3,3/-,7/7+3,7/7+6 | Front wheel base (mm) | 1935,1960 |
Fuel type | diesel oil | Rear wheel base (mm) | 1860 |
Emission standards | GB17691-2018 National VI | ||
Chassis Model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
B6.2NS6B230 B6.2NS6B210 YCS06270-60 YCS06245-60 WP6H270E61 WP6H245E61 YCK05240-60 YCK05210-60 YCK05190-60 WP4.6NQ220E61 B6.2NS6B260 B6.2NS6B245 YCS04200-68 WP4.6NQ220E61A WP7H270E68 WP4.6NQ220E62 YCS04200-61A YCS04220-61A D4.5NS6B240 | Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Guangxi Yuchai Machinery Co., Ltd Guangxi Yuchai Machinery Co., Ltd Weichai power company limited Weichai power company limited Guangxi Yuchai Machinery Co., Ltd Guangxi Yuchai Machinery Co., Ltd Guangxi Yuchai Machinery Co., Ltd Weichai power company limited Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Guangxi Yuchai Machinery Co., Ltd Weichai power company limited Weichai power company limited Weichai power company limited Guangxi Yuchai Machinery Co., Ltd Guangxi Yuchai Machinery Co., Ltd Dongfeng Cummins Engine Co., Ltd | 6200 6200 6234 6234 6220 6220 5132 5132 5132 4580 6200 6200 4156 4580 6800 4580 4295 4295 4500 | 169 154 199 180 199 180 176 157 140 162 191 180 147 162 199 162 147 162 176 |
