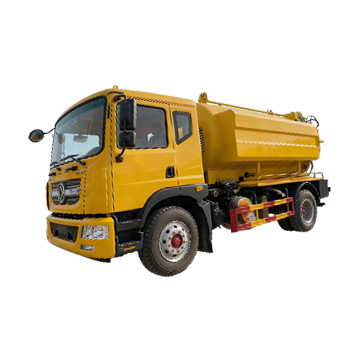

Efficient Cleaning And Suction Truck

The main purpose of this vehicle is for cleaning and suction of sewage. The dedicated devices are vacuum pumps and tanks. The total capacity of the sewage tank is 7.45 cubic meters. The effective volume of the sewage tank is 7.10 cubic meters. The medium is liquid sewage with a density of 800 kg/cubic meter. The external dimensions of the tank body (straight section X diameter) (mm) are 4300X1600; The total capacity of the clean water tank is 4.20 cubic meters, the effective capacity of the clean water tank is 4.00 cubic meters, the medium is water, the density is 1000 kg/cubic meter, the tank body is a shaped tank body, and the size of the shaped tank (length X width X height) (mm) is 3980X580X1080. The two tanks are independent and cannot be fully loaded at the same time; Use a clean water tank for cleaning function, and a sewage tank with a lifting function for suction function; The material of the side rear protective device is Q235A carbon steel, and the connection method is welding connection for both the left and right sides and the lower rear protection. The cross-sectional size of the rear protective device (width X height) is 55X120 (mm), and the height of the rear protective device above the ground is 460mm; Only modified with a 3800mm wheelbase; Optional cab with chassis; ABS

Model/Manufacturer: ABS Model: ABS/ASR-24V-4S/4M, Manufacturer: Xiangyang Dongfeng Longcheng Machinery Co., Ltd; Optional appearance style The vehicle is equipped with a night light at the rear, which cannot be turned on during driving; Optional fuel tank, urea tank, and battery frame layout along with the chassis Actual tank capacity: 9 cubic meters for sewage tank and 4 cubic meters for clean water tank.

Chassis configuration: Adopting Dongfeng Class II chassis EQ1145SJ8DCD series mature products, with a wheelbase of 3800mm, 8.25 steel wire tires, and a quality of

Thanks to its convenient and efficient after-sales service, the engine has a power of 121kw, meets the national VI standard for emissions, and features an eight speed gearbox. The overall appearance of the vehicle is beautiful and elegant, providing comfortable driving experience.

Function introduction: The cleaning and suction truck is a collection cleaning and suction facility that adds suction pumps, suction tanks, suction pipelines, and other facilities on the basis of a high-pressure cleaning truck

A special vehicle that combines two functions, consisting of two tanks, two pumps (high-pressure cleaning pump, vacuum suction pump), and two sets of piping systems.

Tank assembly: The tank assembly consists of a clear water tank and a sewage tank. The two sides of the tank assembly are shaped clear water tanks that provide clear water for the waterway system. The middle of the tank assembly is

A circular sewage tank for storing sewage in a vacuum system. The clear water tank and the sewage tank are connected through a ball valve. If necessary, opening the ball valve can achieve simultaneous use of both tanks

Smooth it out.

Vacuum system: The vacuum suction system is the main component for achieving vacuum suction, which is mainly composed of a vacuum pump, a transmission device, and an anti overflow device for separating water and gas

It consists of separation, primary oil and gas separation, secondary oil and gas separation, four-way valve, vacuum pipeline, overpressure safety valve, etc.

Hydraulic system: The hydraulic system mainly consists of hydraulic oil tank, gear pump, hydraulic valve, hydraulic cylinder, hydraulic motor, and hydraulic pipeline. Tank body

The lifting, opening and closing of the sewage tank rear door, and the retraction of the water pipe reel are all controlled by hydraulic pressure.

Waterway system: The waterway system consists of high-pressure water pumps, clean water tanks, and waterway pipelines. The high-pressure water pump generates a large flow rate and high-pressure water flow through the rear

The water pipe reel and nozzle achieve dredging function.

Main technical parameters:

Vehicle parameters:

Vehicle curb weight: 8185kg

Maximum total weight: 14060kg

Rated load capacity: 5680kg

Dimensions (length, width, height): 7360 * 2360 * 3140mm

Approach angle/departure angle: 21/14

Vacuum suction system:

Maximum flow rate of vacuum pump: 720m3/h

Maximum vacuum degree: 92%

Sewage tank volume: 7.45m3

Total capacity of sewage tank: 7.45m3

Effective capacity of sewage tank: 7.10m3

Half tube suction maximum depth: 8m

Maximum depth of full tube suction: 6m

Diameter of suction pipe: 102mm

Cleaning system:

Maximum pressure of water pump: 22Mpa

Maximum flow rate of water pump: 215L/min

Clear water tank volume: 4.20m3

Total capacity of clear water tank: 4.20m3

Effective capacity of clear water tank: 4.00m3
