Multi Functional Fecal Suction Truck
Safe use: Just regularly check the airtightness of the tank body, valve body, and pipeline.

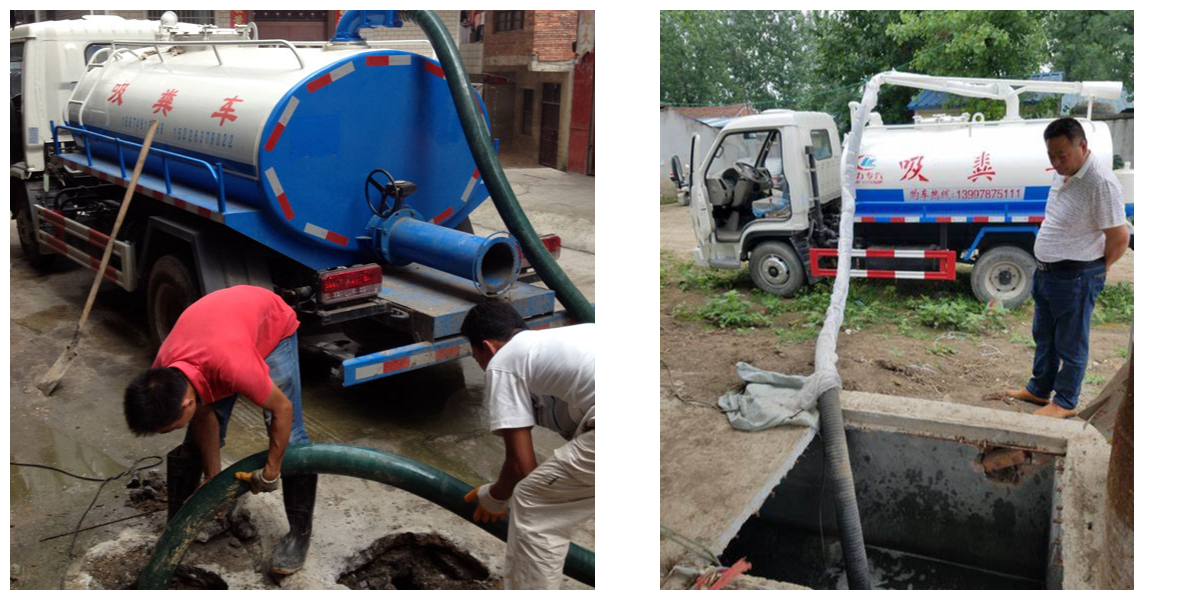

Wide applicability: The suction truck can be applied to every corner of the city, whether it is pipelines, septic tanks, sewers or other places, it can be used for cleaning and dredging.
Multi functional suction truck description:
Vacuum suction truck configuration: The dedicated part includes the suction truck power take-off,
suction truck transmission shaft, suction truck vacuum suction pump, suction truck water gas
separator, suction truck oil gas separator, suction truck multi way directional valve, suction truck
suspension rod, suction truck tank body, suction truck discharge valve, suction truck suspension rod,
suction truck clean water tank, suction truck sight window, suction truck vacuum pressure gauge, and
suction truck pipe network system.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement batch | 335 |
Product Name | Product model | SGW5042GXEF | |
Total mass (Kg) | 4495 | Tank volume (m3) | 2.85 |
Rated load capacity (Kg) | 2180 | External dimensions (mm) | 4905×1850×2150 |
Curb weight (Kg) | 2185 | Cargo size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 2 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 23/15 | Front/rear suspension (mm) | 1050/1255 |
Axle load (Kg) | 1650/2845 | Maximum speed (km/h) | 90 |
remarks | This vehicle is used for suction and transportation of feces. The main devices are a tank and a pump. The effective volume of the tank is 2.85 cubic meters, the medium is liquid waste, the density is 800 kilograms/cubic meter, and the external dimensions of the tank are (mm): long axis X short axis X tank length (1350X1000X2700). The side rear protection is welded and connected with Q235 material, and the cross-sectional size of the rear protection is (mm): 50 × 100. The height of the rear protection above the ground is (mm): 370. ABS system model/manufacturer: CM4YL/Guangzhou Ruili Kemi Automotive Electronics Co., Ltd., CM4XL-4S/4M/Guangzhou Ruili Kemi Automotive Electronics Co., Ltd. Only 2600mm wheelbase is installed. The cab style is optional with the chassis | ||
【Chassis Technical Parameters】 | |||
Chassis Model | ZB3042BDC3L | Chassis name | Dump truck chassis |
Trademark name | Ouling brand | manufacturing enterprise | Shandong Tangjun Ouling Automobile Manufacturing Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 2720,2600 | ||
Tire specifications | 6.00R15LT 10PR,6.50R16LT 8PR,6.50R16LT 10PR,6.50R16LT 12PR | ||
Number of steel plate springs | 6/5+3,3/6+4,3/4+3,3/5+2,6/5+2,3/3+1 | Front wheel base (mm) | 1380,1395 |
Fuel type | diesel oil | Rear wheel base (mm) | 1265,1332 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
Q23-95E60
| Anhui Quanchai Power Co., Ltd | 2300
| 70 |
The above is the parameter table of a multifunctional fecal suction truck！
If you have any questions, you can ask our customer service！
Working principle: When the vehicle starts, the power take-off is attached to drive the suction pump. The
suction pump operates to extract air from the sewage tank. As the suction hose is always submerged in the
liquid surface, the air inside the sewage tank becomes thinner and thinner due to the lack of replenishment.
As a result, the pressure inside the tank is lower than atmospheric pressure, and the sewage enters the tank
through the suction hose under atmospheric pressure.
