Powerful suction truck

1. High efficiency:

Compared to traditional manual cleaning methods, fecal suction trucks have significantly improved cleaning efficiency, which can reach ten times or more than traditional methods. It can quickly process large amounts of waste and sewage, such as cleaning septic tanks and sewage ditches, greatly reducing labor and time costs.

2. Environmental Protection and Safety:

·The suction truck adopts advanced treatment technologies, such as solid slag separators and screw stackers, which not only have fast treatment speed, but also the treated sewage has no blockage or odor to municipal pipelines, especially favored by high-end hotels and residential areas.

3. Flexibility and versatility:

·The suction truck is suitable for various cleaning and sanitation places, whether it is urban streets or rural alleys, and can flexibly respond to different cleaning needs. High altitude guns and sprinkler systems can be installed according to actual needs to increase the versatility of the equipment.


Contact Now E-Mail Telephone
Product Details


The advantages of a powerful suction truck mainly include the following aspects:


Widely applicable working conditions:

The applicable working conditions are more extensive. Equipped with dual rear axles and differential locks, it can provide sufficient grip even on muddy or bumpy roads,

 helping the vehicle quickly get out of the trap and continue driving.


Strong power and handling:

Equipped with Yuchai YCS06245-60 engine, it has a displacement of 6.23L and a maximum torque of 850N · m. Matched with the Fast 10JS90A-B gearbox, providing a

wide range of speed ratios, powerful starting, and fast driving. Standard LED daytime running lights and lenses provide a high-end driving experience.


High durability and load-bearing capacity:

Matching 10T dual rear axles, efficient and reliable. The frame made of high-strength steel and reinforced multi leaf springs ensure that the vehicle maintains good

stability and durability in various usage scenarios. The cargo box is made of high-strength steel plates, which have a light weight, strong bearing capacity, good sealing,

and durability.


Comfortable driving experience:

The cabin design takes into account the comfort of the driver and is equipped with driver airbags and shock-absorbing seats to reduce driving fatigue. The

multifunctional steering wheel and other configurations have improved the convenience of operation and the safety of driving.


Flexible customization:

According to user needs, we provide a variety of container styles, such as U-shaped boxes, rectangular boxes, tarpaulin covers, butterfly covers, and rocker covers, to

meet the customized needs of users.


In summary, the powerful suction truck performs well in handling, durability, comfort, and customization, making it a high-quality vehicle choice suitable for various

work environments.

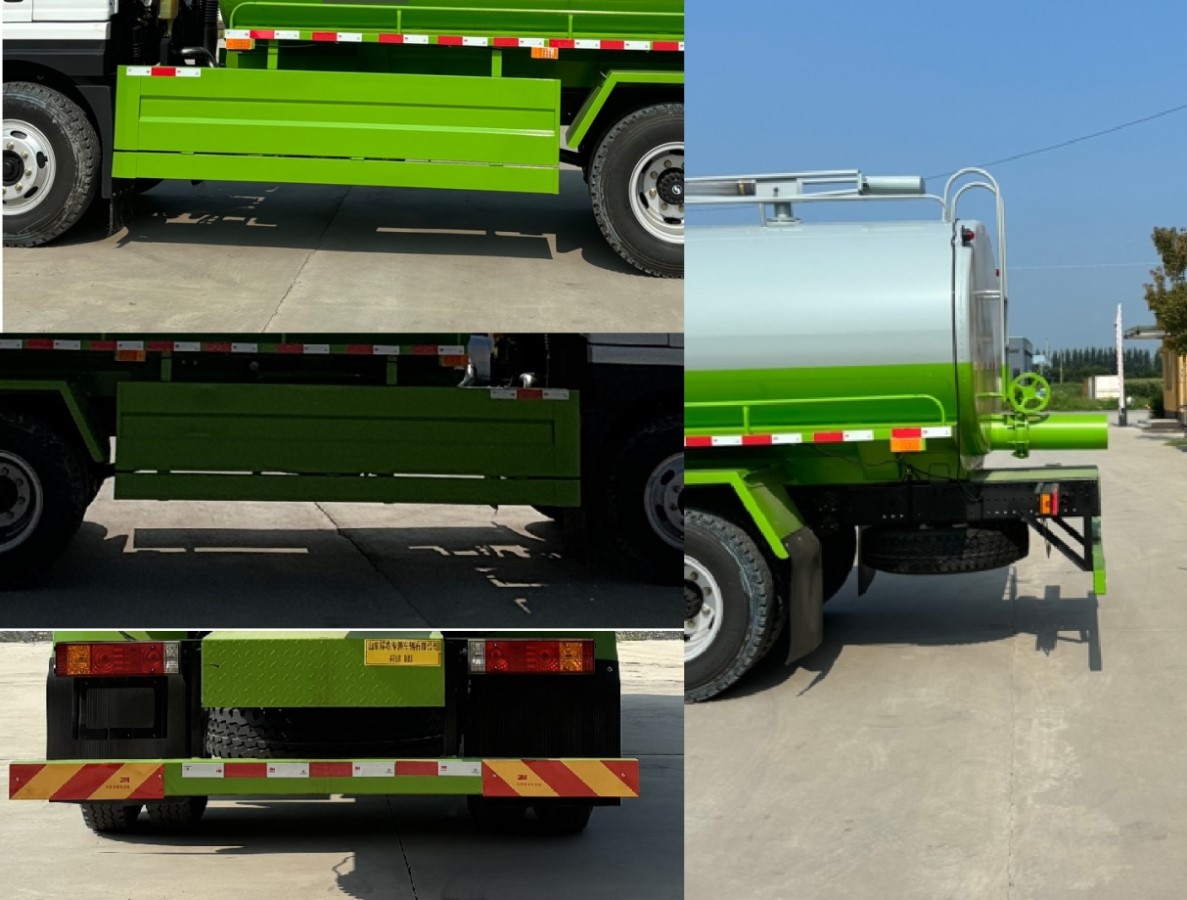

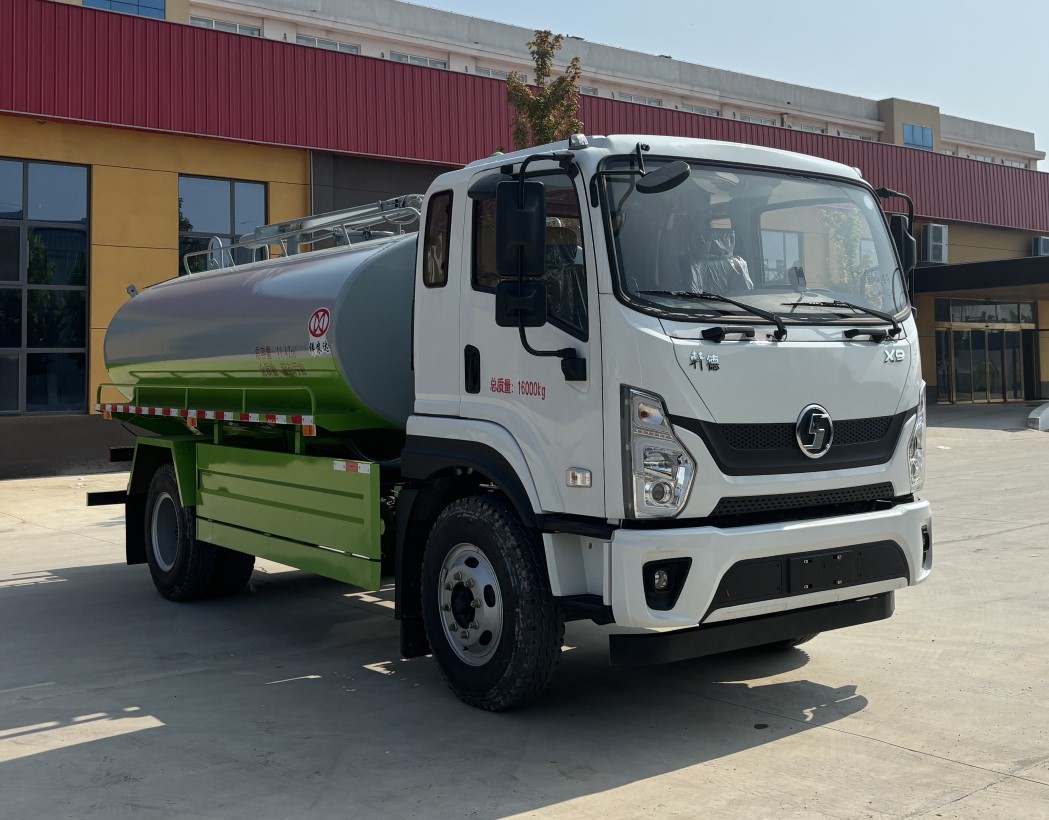

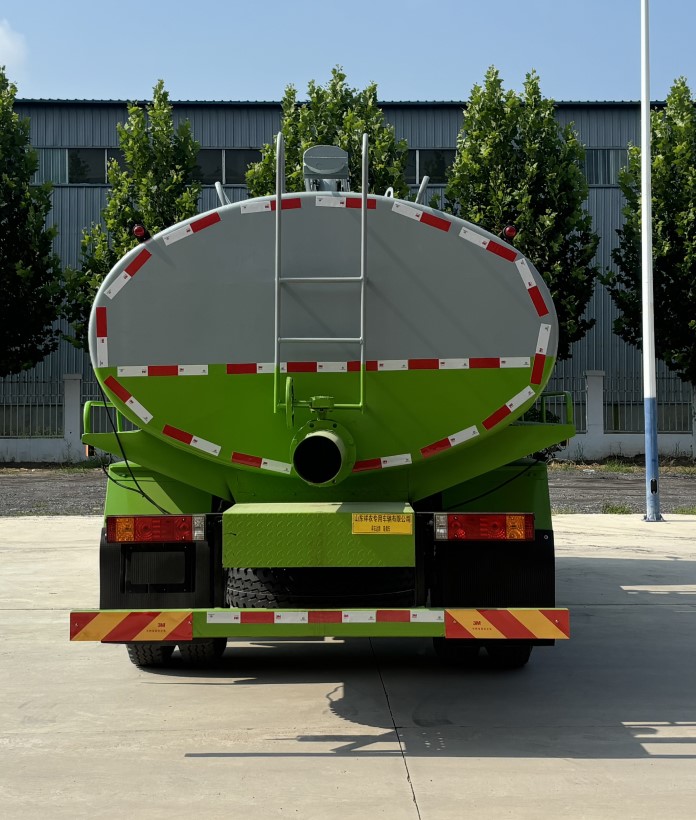

Powerful suction truck.jpg Powerful suction truck.jpg

Powerful suction truck.jpg


【Technical parameters of the entire vehicle】

Product trademark

Xiangnongda brand

Announcement Batch

387

Product Name

Fecal suction truck

Product model

SGW5160GXESX6

Total mass (Kg)

16000

Tank volume (m3)


Rated load capacity (Kg)

9135,9070,8770,8705

Dimensions (mm)

7700,7800x2520x3000,3150

Curb weight (Kg)

6735,7100

Cargo compartment size (mm)

××

Rated passenger capacity (person)


Total mass of quasi trailer (Kg)


Cab capacity (persons)

2,3

Maximum load capacity of saddle (Kg)


Approach Angle/Departure Angle (degrees)

20/12,16/12

Front suspension/rear suspension (mm)

1300/2450,1200/2500

Axle load (Kg)

5600/10400

Maximum speed (Km/h)

89

remarks

The vehicle is used for fecal suction, and the main specialized device is the fecal suction assembly The total capacity of the tank is 11.42 cubic meters, with an effective capacity of 10.8 cubic meters. The transport medium is liquid waste with a density of 800 kilograms per cubic meter. The external dimensions of the tank (length x long axis x short axis) (mm) are 4600x2250x1600. ABS system manufacturer: Xi'an Zhengchang Electronics Co., Ltd., model: ZQFB-V. The side protection device material is Q235B, and the connection method is welding connection. The rear lower protection device material is Q235B, and the connection method is bolt connection. The rear protection section size is 120mmx60mm, and the ground clearance height is 500mm The car only uses a 3950mm and 4100mm wheelbase

【Chassis Technical Parameters】

Chassis Model

SX1160GP6411

Chassis name

Truck chassis

Trademark name

shanqi brand

manufacturing enterprise

Shanxi Automobile Holding Group Co., Ltd

Number of axes

2

Number of tires

6

Wheelbase (mm)

4100,4500,3950

Tire specifications

9.00R20,9.00R20 16PR

Number of steel plate springs

9/11+5,9/11+8,8/10+8,8/10+6,9/10+6,3/4+3,10/10+8,10/11+8

Front wheel base (mm)

1770,1937,1810,1650,1700,1790,1830

Fuel type

diesel oil

Rear wheel base (mm)

1700,1818,1725,1595,1650,1750,1810

Emission standards

GB17691-2018 National VI

Engine model

Engine manufacturing enterprises

Emissions(ml)

Power (Kw)

D40TCIF1

YCS04200-68

D36TCIF1

YCY30170-61

Kunming Yunnei Power Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Chengdu Yunnei Power Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

4052

4156

3610

2970

185

200

177

170
