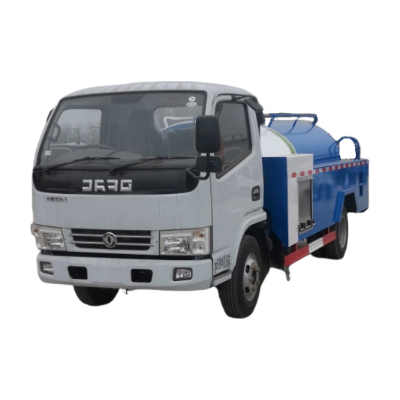

Efficient cleaning vehicle
Efficient homework:
The vehicle is equipped with an efficient water pump and cleaning system, which can ensure the completion of large-scale
cleaning operations in a short period of time.
High pressure cleaning vehicles use the kinetic energy of high-pressure water flow to clean dirty road surfaces in a high-pressure,
low flow manner, efficiently and water-saving manner.
Intelligent control:
Equipped with an intelligent control system and integrated central touch screen, making operation more convenient.
Multifunctionality:
Cleaning vehicles can not only be used for road cleaning, but also for various purposes such as watering and dust reduction,
watering plants and trees in green belts, and emergency firefighting.
During the operation of the guardrail cleaning vehicle, four sets of rolling brushes rotate simultaneously, with adjacent brushes
rotating in the opposite direction. The cleaning is powerful, the operating range is wide, and the cleaning effect is significant.
High pressure cleaning vehicle, replacing sprinkler truck, is a device that pressurizes ordinary tap water to ultra-high pressure through a high-pressure pump, converts it into huge energy through a nozzle, and sprays it onto the dirt formed on the road surface, sewage pipes, industrial pipelines, buildings or tanks through high-pressure jets to achieve cleaning function.
So, what are the main advantages of high-pressure cleaning vehicles?
Firstly, the cleaning cost of high-pressure cleaning vehicles is low: the medium used by the vehicle is tap water, which is commonly available and easily sourced. During the cleaning process, due to the enormous energy of high pressure, no fillers or detergents need to be added to clean, resulting in low cleaning costs.
In addition, the nozzle diameter used in high-pressure cleaning vehicles is only 0.5-2.5 millimeters, so the water consumption is only 3-5 cubic meters per hour, and the power used is 37-90 kilowatts, thus achieving the effect of water conservation and energy saving.
Secondly, the cleaning speed of high-pressure cleaning vehicles is fast: due to the use of high-strength and wear-resistant nozzles and nozzles as spray guns, the cleaning function is achieved through high-pressure jet. It is several times to tens of times faster than traditional chemical methods, sandblasting and shot blasting methods, simple mechanical and manual methods for cleaning. This shows that its cleaning speed is very impressive.
In addition, there is no environmental pollution during the operation of high-pressure cleaning vehicles: water jet cleaning does not produce a large amount of dust, pollute the atmospheric environment, and harm human health. There are no chemicals in the cleaning process, so it will not cause acid or alkali pollution or corrode metals to the atmosphere, soil, and water quality. The sprayed jet atomization can reduce the concentration of air dust in the work area, without the need for cleaning after washing, thus achieving green environmental protection.
In addition, high-pressure cleaning vehicles have a wide range of applications: during the cleaning process, they can easily complete cleaning operations that are difficult to complete with conventional cleaning methods, and can clean complex shaped and structurally complex components. Any part that can be directly hit by a water jet can quickly remove dirt from the matrix and thoroughly clean it. This cleaning method has no special requirements for equipment materials, characteristics, shapes, and types of dirt, so its application range is very wide.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 384 |
Product Name | cleaning vehicle | Product model | SGW5040GQXF |
Total mass (Kg) | 4495 | Tank volume (m3) | |
Rated load capacity (Kg) | 1665 | Dimensions (mm) | 5950x2060x2200,2350 |
Curb weight (Kg) | 2700 | Cargo compartment size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 2 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 27.7/14 | Front suspension/rear suspension (mm) | 1055/1587 |
Axle load (Kg) | 1600/2895 | Maximum speed (Km/h) | 110 |
remarks | This vehicle is mainly used for cleaning work, with specialized devices such as tanks and high-pressure cleaning pumps Effective volume of tank: 1.74 cubic meters, medium: water The dimensions of the tank body (length x long axis x short axis) (mm) are 3300x1445x910, and the front part of the tank body is 1300mm for installing the high-pressure pump Side protection material Q235, connection method is welding, rear protection is replaced by a special device, material Q235, ground clearance height (mm): 475. ABS model/manufacturer: ABS/ASR-12V-4S/4M/Xiangyang Dongfeng Longcheng Machinery Co., Ltd Optional cab with chassis Only equipped with a 3308mm wheelbase Optional box shape, optional cab style with chassis. | ||
【Chassis Technical Parameters】 | |||
Chassis Model | EQ1045SJ3CDF | Chassis name | Truck chassis |
Trademark name | Dongfeng brand | manufacturing enterprise | Dongfeng Motor Group Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 2700,2950,3308,3600,2800 | ||
Tire specifications | 6.50R16,7.00R16,7.50R16LT 8PR,6.00R15LT 10PR,6.50R16LT 10PR,7.00R16LT 8PR | ||
Number of steel plate springs | 6/6+5,3/3+3,2/3+2,5/7+3,5/4+3,6/4+3,6/5+2.6/3+3,3/3,3/3+2,3/6+5,3/8+6,3/5+2,7/10+7 | Front wheel base (mm) | 1525,1519,1472,1545,1613 |
Fuel type | diesel oil | Rear wheel base (mm) | 1498,1516,1586,1458,1650,1800,1472,1670 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
D20TCIF1 Q23-115E60 Q28-130E60 CA4DB1-13E6 D20TCIF11 YCY24140-60 CA4DB1-11E6 CY4BK161 ZD30D16-6N H20-120E60 CY4BK461 M9T-600 Q23-136E60 Q23-132E60 Q25-152E60 YN25PLUS160B D20TCIF61 YCY24155-61A ZD25D16-6D Q25N-152E60 Q25D-162E60 Q25A-150E60 | Kunming Yunnei Power Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd China FAW Group Co., Ltd Kunming Yunnei Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd China FAW Group Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Light Engine Co., Ltd Anhui Quanchai Power Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Light Engine Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd Kunming Yunnei Power Co., Ltd Kunming Yunnei Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd Dongfeng Light Engine Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd | 1999 2300 2800 2207 1999 2360 2207 3856 2953 2000 3707 2298 2300 2300 2493 2499 1999 2360 2499 2496 2496 2496 | 125 115 130 130 125 140 110 143 163 122 130 143 135 132 152 155 140 155 163 152 158 150 |
