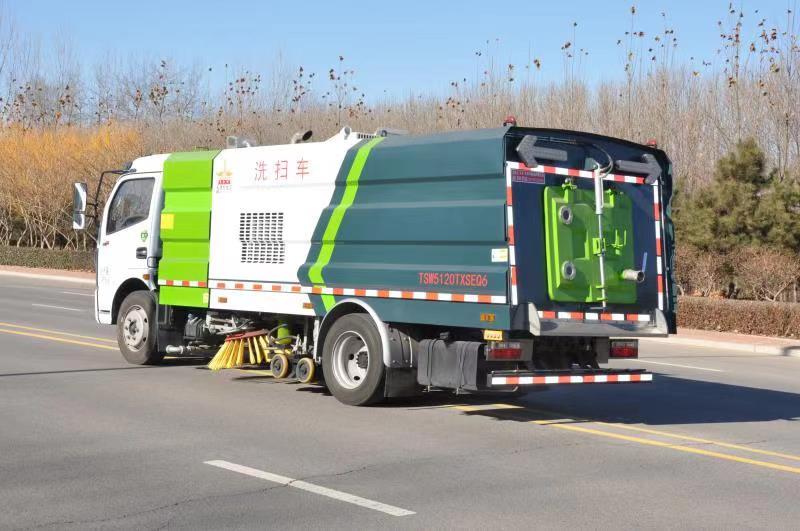

Road Sweeper

Small road sweepers can not only clean up garbage, but also remove dust and purify the air medium on the road, which not only beautifies the road, but also maintains the hygiene of the environment, maintains the good working condition of the road surface, reduces and prevents traffic accidents, and further extends the service life of the road surface.

Contact Now E-Mail Telephone
Product Details


A small road sweeper is a widely used road sweeper, which adopts a working structure of a central 4-disc brush and a rear suction cup. The garbage bin and water tank are designed separately, with a front water tank, a central auxiliary engine and fan, and a rear garbage bin. The road sweeper is equipped with four sweeping brushes, with a rear suction nozzle. The left and right front sweeping brushes sweep the garbage in the corners from the outside to the inside, focusing on the area that can be swept by the rear sweeping brush. The rear sweeping brush cleans the garbage in front of the suction nozzle, and the garbage is sucked into the garbage bin for storage.

Features of road sweeper products:

1. Using a combination of suction and scanning to collect garbage, wet dust removal, electro-hydraulic control, and hydraulic tipping and unloading to clean the road surface. 2. Adopting a dedicated auxiliary engine to drive the fan and hydraulic system, ensuring continuous operation during driving and ensuring the continuity of the cleaning process.

3. Adopting a structure layout of "central independent four disc brush+rear suction nozzle", it is easy to adjust and maintain the cleaning device and suction nozzle, and the vehicle has good passability during transition.

4. The transmission between the auxiliary engine and the fan is equipped with an automatic clutch, which can ensure the automatic disengagement of the auxiliary engine from the fan during no-load starting and stopping, reduce the impact on the auxiliary engine, and improve the reliability and service life of the auxiliary engine.

5. The scanning disk has obstacle avoidance protection function and reset function. It retracts when encountering obstacles and resets after crossing obstacles.

6. According to different cleaning conditions, without increasing the throttle of the auxiliary engine, it is possible to achieve three speed regulation of high, medium, and low speed for sweeping the disc, which can ensure good cleaning effect under various pollution conditions, while saving fuel consumption and brush hair loss.

7. Adopting a fully floating suction nozzle that can automatically level with the road surface, the suction effect is good and the service life is long.

8. Imported hydraulic valve assembly can ensure the stability and smoothness of the hydraulic action of the entire vehicle.

9. Lightweight hydraulic motor (small) ensures stable operation and long service life of the sweeping disc.

10. Precision seamless cold bending hydraulic oil pipe, with no oxidation impurities on the inner wall, ensuring clean hydraulic oil circuit and no valve blockage.

11. High performance engineering plastic spacers are used inside the sweeping arm, which have good wear resistance, no need to apply butter or maintain, and save manpower and material resources.

12. Stainless steel water tank and garbage bin can resist general corrosion and increase the service life of the box body.

13. The ultra wide rear door with an opening angle greater than 85 degrees makes it easier to dump garbage and clean the garbage bin.


The rear suction tray of the road sweeper adopts a fully floating connection structure and height adjustable suction nozzle casters, which can avoid collision with obstacles and adjust the reasonable gap between the suction nozzle and the road surface during driving, thus achieving the cleaning effect. The tailgate of the garbage bin is equipped with a hydraulic cylinder and hydraulic pipeline. When dumping garbage, it can be opened or closed with one click, and it can be operated inside the cab, which is very convenient.

Small Road Sweeper.jpg Small Road Sweeper.jpg

Small Road Sweeper.jpg Small Road Sweeper.jpg

【Technical parameters of the entire vehicle】

Product trademark

Xiangnongda brand

Announcement Batch

388

Product Name

watering lorry

Product model

SGW5040TSLBJ6

Total mass (Kg)

4495

Tank volume (m3)


Rated load capacity (Kg)

4400

Dimensions (mm)

5260x1770x2320

Curb weight (Kg)

3925

Cargo compartment size (mm)

××

Rated passenger capacity (person)


Total mass of quasi trailer (Kg)


Cab capacity (persons)

2,3

Maximum load capacity of saddle (Kg)


Approach Angle/Departure Angle (degrees)

18/13

Front suspension/rear suspension (mm)

1115/1545

Axle load (Kg)

1710/2785

Maximum speed (Km/h)

110

remarks

This vehicle is used for clearing and collecting road debris and other pollutants; The dedicated device consists of a box and a cleaning device assembly; Only using a wheelbase of 2600mm Side protection is replaced by specialized devices; The material used for the lower rear protective device is Q235, welded, with a cross-sectional size of 100mm x 50mm and a ground clearance height of 350mm ABS model/manufacturer: CM4YL/for Guangzhou Ruili Kemi Automotive Electronics Co., Ltd Optional front logo and grille style with chassis.

【Chassis Technical Parameters】

Chassis Model

BJ1045V9JB3-55

Chassis name

Truck chassis

Trademark name

Futian brand

manufacturing enterprise

Beiqi Foton Motor Co., Ltd

Number of axes

2

Number of tires

6

Wheelbase (mm)

2600,2850

Tire specifications

6.00R15 10PR,6.00R15LT 10PR,185R14LT 8PR

Number of steel plate springs

7/5+3,7/5+2,3/5+2,2/3+2

Front wheel base (mm)

1345,1365,1410

Fuel type

diesel oil

Rear wheel base (mm)

1292,1430

Emission standards

GB17691-2018 National VI

Engine model

Engine manufacturing enterprises

Emissions(ml)

Power (Kw)

Q23-95C60

Q23-95E60

Q23A-100C60

Q23A-100E60

Anhui Quanchai Power Co., Ltd

Anhui Quanchai Power Co., Ltd

Anhui Quanchai Power Co., Ltd

Anhui Quanchai Power Co., Ltd

2300

2300

2300

2300

95

95

100

100
