Hook Arm Garbage Truck

2024/12/02 17:22

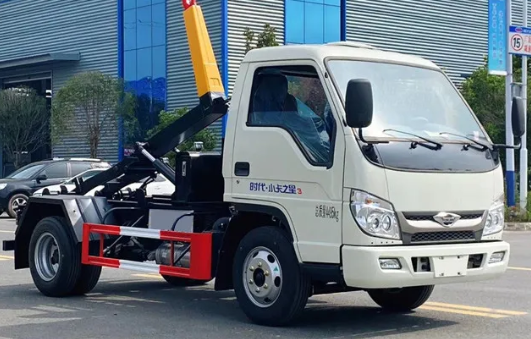

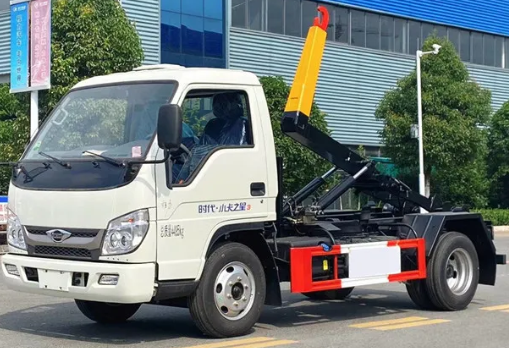

Hook arm garbage truck:

Also known as a detachable garbage truck, it is mainly used for collecting and transporting various types of garbage in municipal sanitation, property management and other places. The garbage truck can be completely separated from the chassis, and has the advantages of reasonable structure, easy operation, stability, high efficiency, good sealing performance, and convenient dumping. It can achieve joint operation of one vehicle and multiple garbage trucks, circular transportation, and fully improve the transportation capacity of the vehicle. Realize one vehicle with multiple boxes for circular transportation, which is efficient, energy-saving, and cost-effective.

420f49de9a0143df83f429b64e5fc91.png 1733131532357933.png

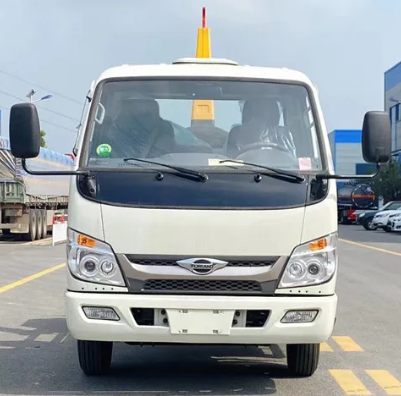

Vehicle structure:

The car is composed of a chassis, a main oil cylinder for the pull arm, an attached frame, a flip frame, optional support legs, a locking frame, a locking cylinder, and a multi way directional valve. One end of the flip frame is connected to the attached frame, and the other end is equipped with a movable pull arm, with a locking system installed in the middle; One end of the movable arm oil cylinder is connected to the movable arm, and the other end is connected to the attached frame; The locking mechanism can connect the box on the attached frame with the flipping frame and the pulling arm through the action of the locking cylinder when the box is self dumping, forming a self dumping angle when the main cylinder is extended. It can also lock the flipping frame and the attached frame as a whole by retracting the locking cylinder, and use the retraction or extension of the main cylinder to make the movable pulling arm drag the underground garbage bin onto the attached frame or place it back on the ground from the attached frame.

3ded017a19e25acd9b3522554ad8ed7.png 1733131597491562.png

Advantages of use:

This vehicle can transport the garbage in the underground garbage bin and the garbage bin together, and can also dump, reducing the labor intensity of workers. The collection and transportation method of this garbage truck is widely used in the world, which can achieve multiple boxes per truck, greatly reducing equipment costs and space, etc; The functions of its dedicated devices are all powered by the car engine and achieved manually or electronically through hydraulic mechanisms. The vehicle's casing adopts a high-quality carbon steel plate fully sealed welded structure, which has the advantages of high strength, light weight, and no secondary pollution.
