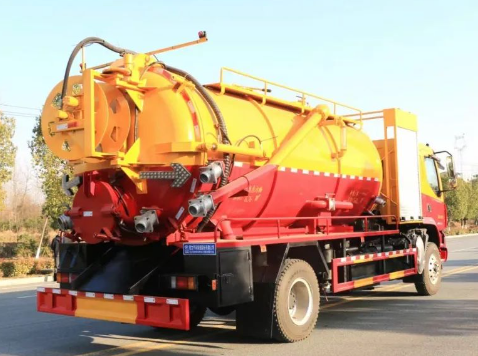

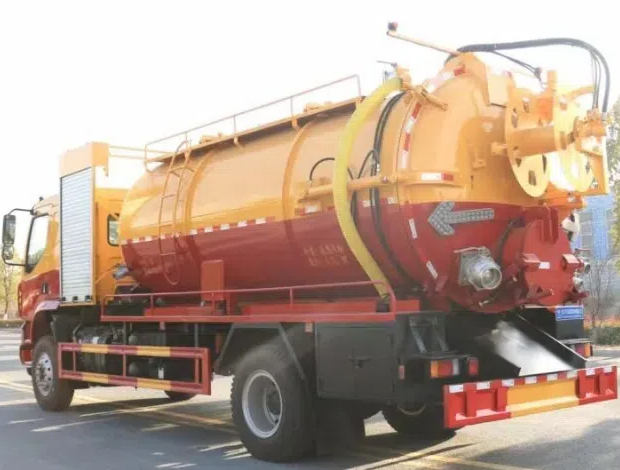

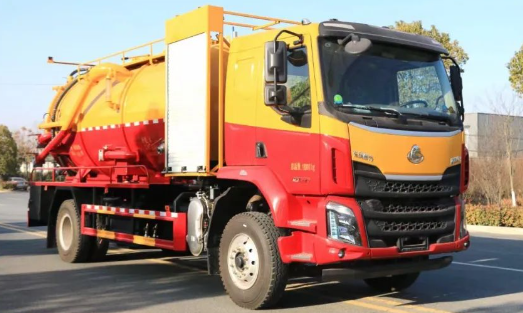

Single bridge cleaning and suction truck
The cleaning and suction truck, also known as the joint dredging truck, is a new type of specialized sanitation vehicle that combines the functions of a high-pressure cleaning truck and a suction truck. The highlight of this vehicle is its ability to clear blocked areas in the sewer that cannot be reached by human labor, hence it is called the joint dredging truck. The other functions of the car include floor flushing, sewage suction and discharge, landscaping, etc. It can be used for cleaning high-pressure pipelines. Professional sewage suction and dredging vehicle, equipped with advanced domestic technology vacuum pump, with high suction power and long suction range, especially suitable for suction, transportation and discharge of sediment in sewers, especially for larger objects such as mud, silt, stones, bricks, etc.
Single bridge 220 horsepower cleaning and suction truck configuration: air brake, air conditioning, electric glass, central locking. The high-pressure cleaning part adopts a Tongjie plunger high-pressure pump, and the suction part adopts an SK-30 water circulation pump.
Installation configuration: Tongjie 250 flow high-pressure cleaning pump, filter bucket, 100mm pipeline with valve between the clean water tank and the filter bucket. Two independent water inlet pipes are installed at both ends between the filter bucket and the high-pressure pump, with a 100 meter 25 gauge high-pressure pipe and a 9KG gun head. The rear head is reinforced with square steel cross inside. 3. The suction part uses Weichai 375 horsepower auxiliary engine with SK-30 water circulation pump, stainless steel water circulation box, and other standard equipment.
The tank has a capacity of about 15 cubic meters, made of 8m carbon steel plate, with approximately 6 cubic meters of clean water. There is a fire hydrant inlet on both sides of the clean water tank, and the rest is for suction. There are two sprinkler tank ports (with ladders) on the top of the tank, and the two storage ball valves are interconnected, with one on the top of the tank. A 8mm head is used in the middle of the two compartments, and a high-pressure pump is connected for air blowing. A 250 flow high-pressure cleaning pump is used for cleaning, and a 60-meter-25 high-pressure pipe is used.
The inlet pipe of the high-pressure pump is thickened, and the head is rotated 180 degrees after the coil is installed. The coil is equipped with hydraulic rotation, and two sets of Weiye oil pumps are used. Install a 30 water ring pump with a 375 horsepower secondary engine and a suction pipe with an exhaust valve. The hydraulic opening of the rear head is reinforced with square steel cross inside. Install a 600 cement cover on the rear head that can be opened by hydraulic pressure to drain dirt, a 150 stainless steel ball valve round, a 100 stainless steel ball valve round, a 150 inch stainless steel steal valve at the rear of the side passenger seat, a rear head, stainless steel plate inside the tank, arrow lights at the tail of the tank, with a dirt viewing window, a manure pipe on the rear head, and a toolbox with two layers. Equipped with an 8-meter suction pipe. Other factory standard equipment.
