Efficient Road Sweeper

As an efficient sanitation equipment, efficient road sweeper have multiple advantages, making them the preferred tool for urban cleaning and road maintenance.

1. Efficient cleaning capability

2. Environmental protection and low noise

3. Easy maintenance and safe operation

4. Economic benefits

5. Multifunctionality

6. Extend the service life of roads


Contact Now E-Mail Telephone
Product Details


Our company produces efficient road sweepe, vacuum cleaners, cleaning vehicles, and road cleaning vehicles, which are specialized sanitation vehicles equipped with cleaning and brushing control systems. They can be widely used for road cleaning on trunk highways, municipal and airport pavements, urban residential areas, parks, and other roads. "It has a variety of operation functions such as road cleaning, road cleaning, high-pressure cleaning, curbstone cleaning, garbage collection, sewage recycling, spray and road separation wall cleaning. It has an advanced high-pressure water path control system, and when the high-pressure water pump starts and the working water valve is switched, the water pump can unload automatically. The operating device layout mode of" two vertical sweeps in the middle, high-pressure water spray bar in the middle wide suction nozzle, high-pressure side spray bar in the middle "is adopted.


The road sweepers are divided into 2 square meters, 5.5 square meters, 7.5 square meters, and 12 square meters according to the container capacity.

Road sweepers, whether small or large, come standard with: a center mounted 4-scan disk, a rear suction cup, a motor, a control switch, a magnetic valve group, a clutch, a centrifugal fan, a water tank, a garbage bin, a rear LED arrow light, an electronic water pump, and more.

Select different auxiliary engines according to different vehicle models: Jiangling 87 horsepower/Yuchai 90 horsepower/Yuchai 140 horsepower/Cummins 140 horsepower, etc.


Introduction to efficient road sweeper:

1. Adopt a mixed suction and sweeping method to collect garbage, wet dust removal, electro-hydraulic control, and hydraulic tipping and unloading operation to clean the road surface.

2. Adopt a dedicated auxiliary engine to drive the fan and hydraulic system, ensuring that they can continue to work during driving and ensuring the continuity of the cleaning process.

3. The structural layout of "central four sweepers+spray dust suppression device+central partition+rear suction nozzle" is adopted to prevent sand and gravel from splashing and raising dust during the cleaning process. This layout is convenient for the adjustment and maintenance of the cleaning device and suction cup, and the vehicle has good trafficability during field transfer operation.

4. The transmission between the auxiliary engine and the fan is equipped with an automatic clutch, which can ensure the automatic disengagement of the auxiliary engine from the fan during no-load start and stop, reduce the impact on the auxiliary engine, and improve the reliability and service life of the auxiliary engine.

5. The scanning disk has automatic avoidance protection function and automatic reset function when encountering obstacles. It will automatically retract when encountering obstacles and return to its original position when crossing obstacles.

6. The speed of the sweeping disc can be adjusted according to various cleaning conditions, ensuring good cleaning effect under various pollution conditions

7. Adopting advanced and efficient dedicated fans and fully floating suction nozzles that can automatically level with the road surface, the cleaning effect is good and the service life is long.

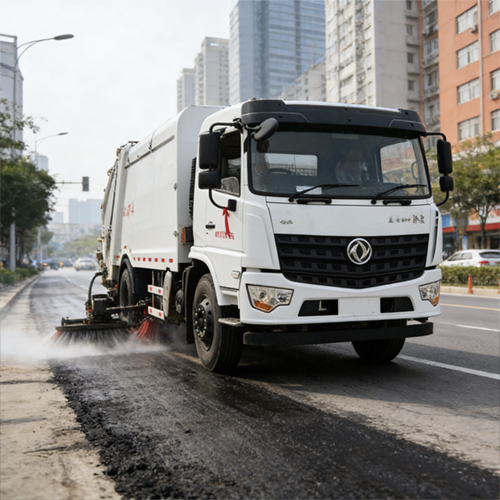

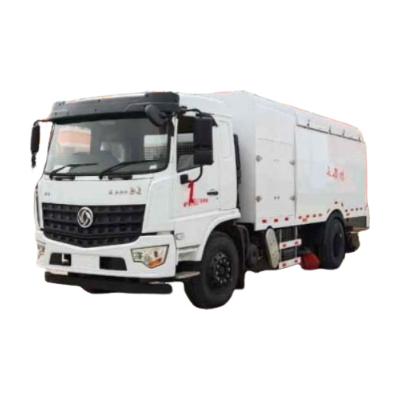

Efficient Road Sweeper.jpg Efficient Road Sweeper.jpg

Efficient Road Sweeper.jpg Efficient Road Sweeper.jpg


【Technical parameters of the entire vehicle】

Product trademark

Xiangnongda brand

Announcement Batch

SGW5183TSLF

Product Name

Road sweeper

Product model

369

Total mass (Kg)

18000

Tank volume (m3)


Rated load capacity (Kg)

4855,4920

Dimensions (mm)

6770,6600×2080×2600

Curb weight (Kg)

12950

Cargo compartment size (mm)

××

Rated passenger capacity (person)


Total mass of quasi trailer (Kg)


Cab capacity (persons)

3,2

Maximum load capacity of saddle (Kg)


Approach Angle/Departure Angle (degrees)

21/13

Front suspension/rear suspension (mm)

1440/2410

Axle load (Kg)

6500/11500

Maximum speed (Km/h)

89

remarks

This vehicle is used for clearing and collecting road debris and other pollutants; The dedicated device consists of a box and a cleaning device assembly. The side protection material is Q235, and the connection method adopts welding connection. The rear lower protection is replaced by a special device, and the ground clearance height (mm) is 240. The car is only equipped with a 4500mm wheelbase. equipment

ABS, Model/Manufacturer: 3631010-C2000/Dongke Knorr Bremse Commercial Vehicle Braking System (Shiyan) Co., Ltd., ABS-E 4S/4M/Manufacturer: WABCO Automotive Control Systems (China) Co., Ltd. Optional cab with chassis.

【Chassis Technical Parameters】

Chassis Model

DFV1183GDP6DJ1

Chassis name

Truck chassis

Trademark name

Dongfeng brand

manufacturing enterprise

Dongfeng Commercial Vehicle Co., Ltd

Number of axes

2

Number of tires

6

Wheelbase (mm)

3800,3950,4200,4500,4700,5100,5600,6000

Tire specifications

10.00R20 18PR,275/80R22.5 18PR,10.00R20 16PR,11.00R20 16PR,11.00R20 18PR,295/80 R22.5,295/60R22.5 18PR

Number of steel plate springs

8/10+7,8/10+8,11/11+10,3/4+3

Front wheel base (mm)

1810,1880,1940,1965,1910,1980,2005,2020,2040

Fuel type

diesel oil

Rear wheel base (mm)

1800,1820,1860,1750,1840

Emission standards

GB17691-2018 National VI

Engine model

Engine manufacturing enterprises

Emissions(ml)

Power (Kw)

B6.2NS6B230

D4.0NS6B170

D4.5NS6B220

B6.2NS6B210

D6.7NS6B230

D4.0NS6B195

D4.5NS6B190

YCS04200-68

YCS06245-60A

YCS06245-60

D30TCIF1

YCS06220-60

D45TCIF1

YCK05240-60

YCK05230-60

YCK05230-61

D43TCIF1

YCS04220-61A

D4.5NS6B240

YCS04220-66

YCS04200-66

DDi47E240-60

DDi47E225-60

YCS04240-66

YCK05270-66A

YCK05248-66

YCY30200-66

Dongfeng Cummins Engine Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Kunming Yunnei Power Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Kunming Yunnei Power Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Kunming Yunnei Power Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Dongfeng Cummins Engine Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Dongfeng Commercial Vehicle Co., Ltd

Dongfeng Commercial Vehicle Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

Guangxi Yuchai Machinery Co., Ltd

6200

4000

4500

6200

6700

4000

4500

4156

6234

6234

2977

6234

4461

5132

5132

5132

4296

4295

4500

4295

4295

4750

4750

4295

5132

5132

2970

230

170

220

210

230

195

190

200

245

245

170

220

220

240

230

230

205

220

240

220

200

240

225

235

270

248

197
