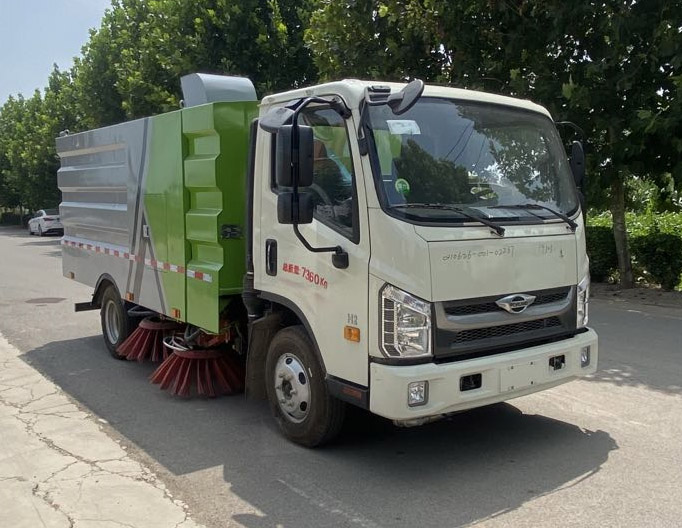

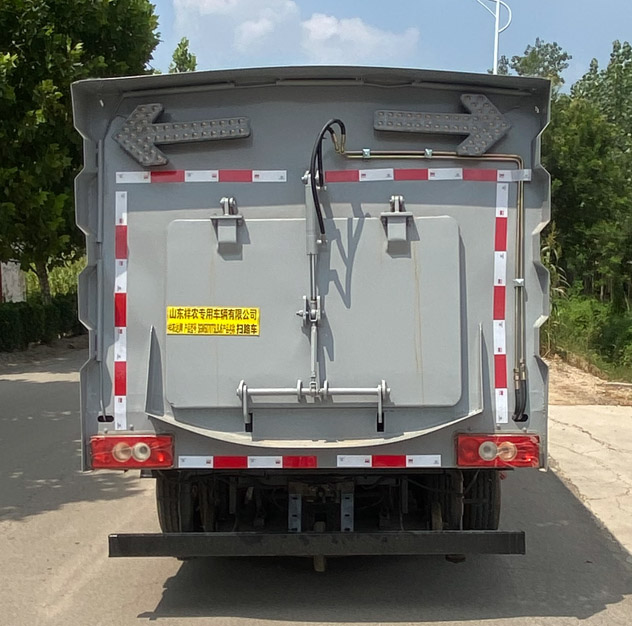

Universal cleaning vehicle
The versatile cleaning vehicle has the characteristics of large cleaning width, low fuel consumption, easy and comfortable operation, and greatly improves road cleaning efficiency.
Applied to urban streets, national highways, roads, docks, stations, squares, cement plants, power plants, mines and other places, it can be called a versatile cleaning vehicle for road surface garbage cleaning.
Road sweepers, with their flexible cleaning methods, can efficiently remove various types of solid waste and dust from the road surface; Vacuum cleaners, with their powerful suction power, excel in the field of dry operations, collecting fine dust and solid debris from the road; Dry cleaning vehicles focus on deep cleaning under specific working conditions, and use their professional cleaning performance to deal with various complex road surfaces; The washing and sweeping vehicle adopts an integrated operation mode of flushing, washing, sweeping, and suction, which performs excellently in cleaning effect, like a multi-faceted blade, cutting off dirt and dust on the road.
It can handle both dust and sand on dry roads, as well as accumulated water and silt in humid environments with ease; Whether cleaning spacious urban main roads or narrow streets and alleys, it can strike accurately. Its advanced vacuum system, like a powerful suction net, can quickly and thoroughly remove various garbage and dust, ensuring that the cleaned road surface is spotless; A unique filtering device, like a loyal guardian, effectively intercepts fine dust, prevents secondary pollution, and safeguards the freshness of the environment; The innovative dry wet switching mode enables it to operate flexibly under different weather and road conditions, truly achieving efficient cleaning in all weather and all scenarios. It can be said without exaggeration that the Xiangnong Vacuum King wet dry dual-use vacuum cleaner is currently the most comprehensive and effective sanitation product on the market. Its appearance not only provides strong guarantees for urban cleaning and beautification, but also promotes the technological progress and development innovation of the entire sanitation industry.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 369 |
Product Name | Product model | SGW5070TSLBJ6 | |
Total mass (Kg) | 7360 | Tank volume (m3) | |
Rated load capacity (Kg) | 1615 | Dimensions (mm) | 6260x2000x2620 |
Curb weight (Kg) | 5550 | Cargo compartment size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 3 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 21/13 | Front suspension/rear suspension (mm) | 1130/1770 |
Axle load (Kg) | 2640/4720 | Maximum speed (Km/h) | 95,108 |

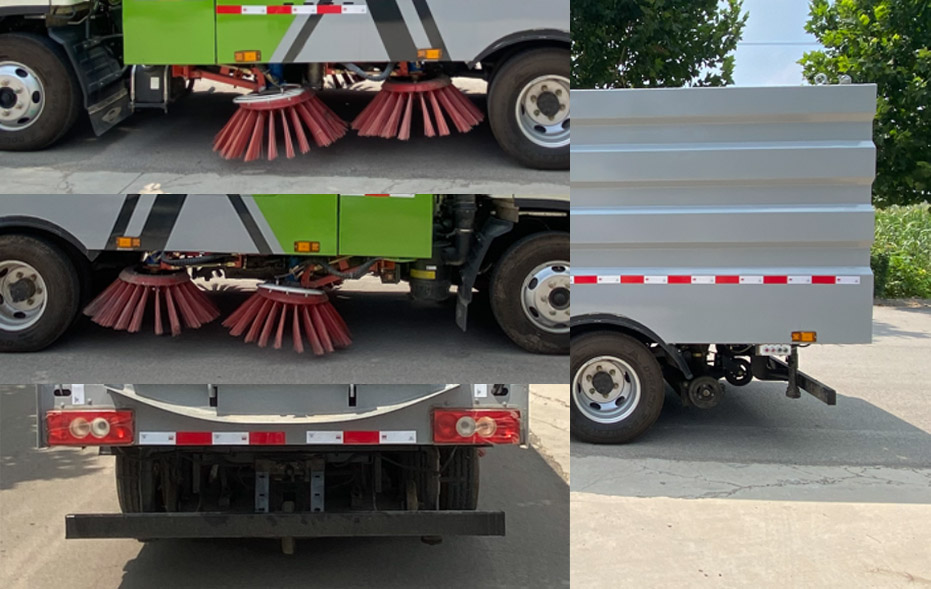

remarks | This vehicle is used for clearing and collecting road debris and other pollutants; The dedicated device consists of a box and a cleaning device assembly Side protection is replaced by specialized devices; The material used for the lower rear protective device is Q235, welded connection, with a cross-sectional size of 100mm x 50mm and a ground clearance height of 280mm The model of the ABS system controller is CM4XL-4S/4M, and the manufacturer of the ABS system controller is Guangzhou Ruili Kemi Automotive Electronics Co., Ltd Optional front grille logo with chassis Optional cab with chassis | ||

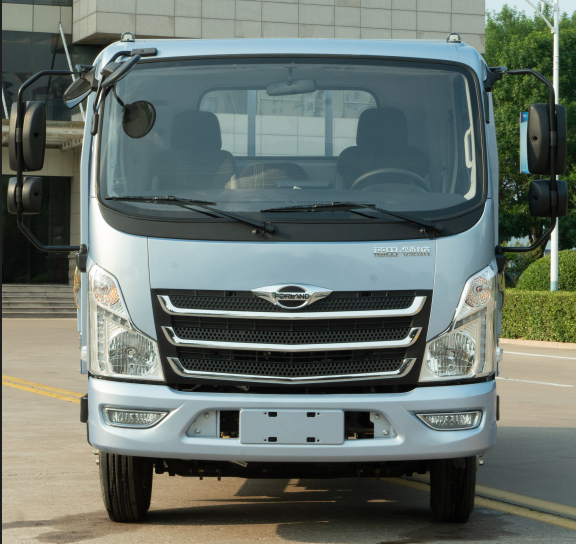

【Chassis Technical Parameters】 | |||
Chassis Model | BJ1076VEJDA-51 | Chassis name | Truck chassis |
Trademark name | Futian brand | manufacturing enterprise | Beiqi Foton Motor Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 3360 | ||
Tire specifications | 7.00R16LT 14PR,7.50R16LT 12PR,7.50R16LT 16PR | ||
Number of steel plate springs | 3/6+6 | Front wheel base (mm) | 1550,1575 |
Fuel type | diesel oil | Rear wheel base (mm) | 1485,1590,1605 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions(ml) | Power (Kw) |
Q28-130C60 Q23-115C60 Q23-115E60 Q28-130E60 Q23-132E60 Q25-152E60 Q25A-150C60 Q25A-160C60 | Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd | 2800 2300 2300 2800 2300 2493 2496 2496 | 130 115 115 130 132 152 150 158 |
