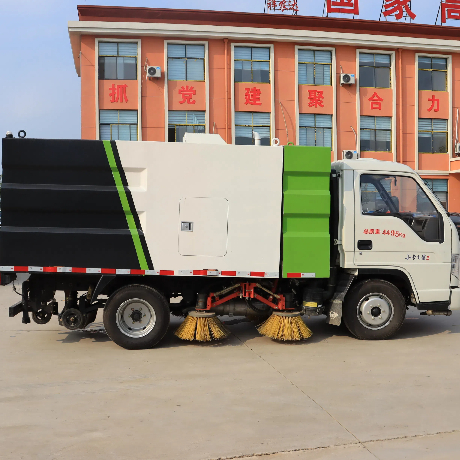

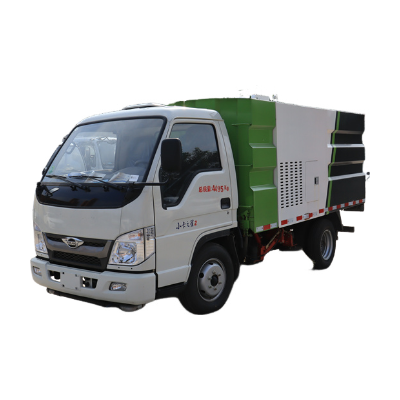

Roadsweepers

The benefits of Roadsweepers:

1. The sweeping and vacuuming system of a road sweeper is equivalent

to 6-40 times more manual labor;


2. Reduce the degree of environmental pollution caused by dust (saving

time and financial resources, reducing manual cleaning of product surfaces,

cleaning and maintenance of mechanical equipment, and periodic

environmental sanitation work, etc.)


3. Improve work efficiency while increasing the enthusiasm of operators;


4. A good and tidy environment not only enhances the image of the city but

also increases the enthusiasm of citizens for work.


Contact Now E-Mail Telephone
Product Details

Green spraying vehicles, multifunctional dust suppression vehicles, and water

transport vehicles. This vehicle is suitable for various road surface washing, watering

trees, green belts, lawn greening, road washing, dust reduction during construction of

factories and mines, and high-altitude building washing. It has functions such as

watering, dust reduction, high and low level spraying, pesticide spraying,guardrail

flushing, as well as water transportation, drainage, emergency firefighting, etc.

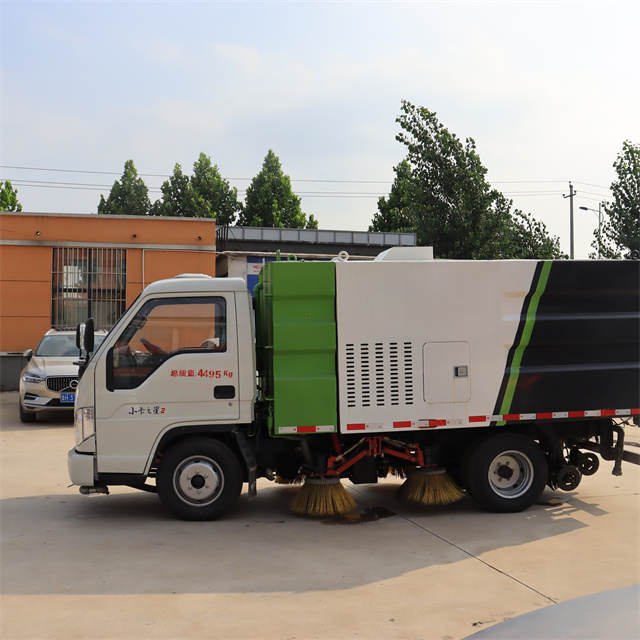

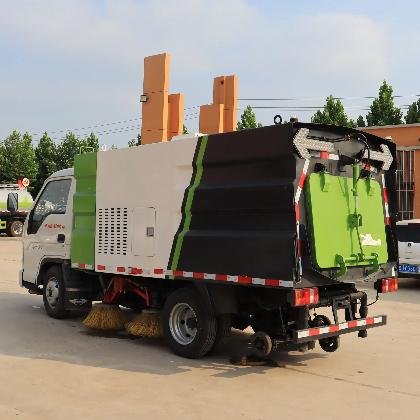

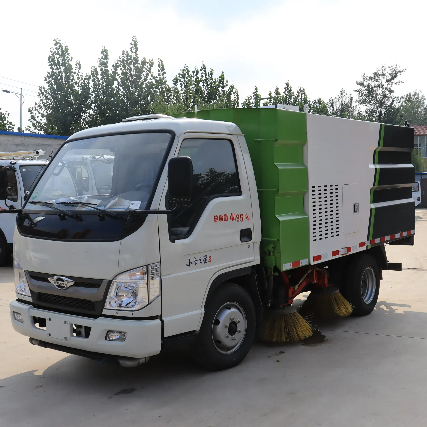

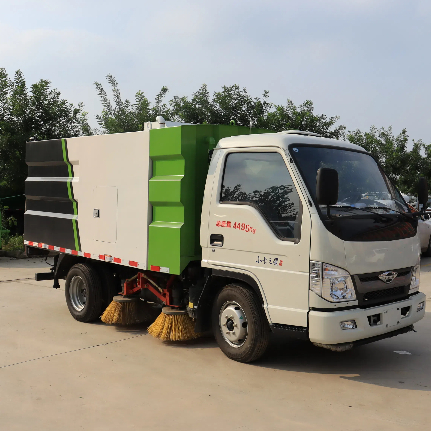

road sweeper.jpg  road sweeper.jpg

 The hydraulic system of Roadsweepers mainly consists of two parts: the cleaning system

 and the power steering system. By using an AC servo motor to drive a hydraulic pump as a

 power source, it provides power to both the cleaning actuator and the steering assist

 component. This not only enables infinite adjustment of the lifting and retracting speed of

 the cleaning device, but also provides overload protection when necessary. It also makes

 the steering process more effortless and reduces driver fatigue.

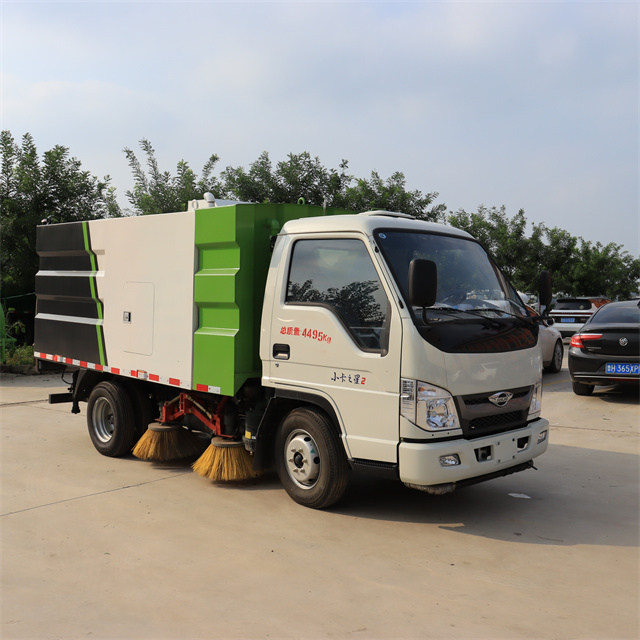

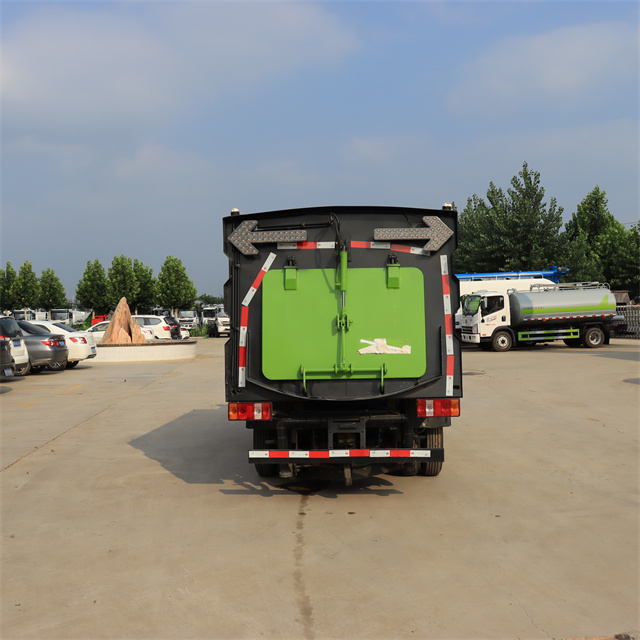

road sweeper.jpg road sweeper.jpg


 【Technical parameters of the entire vehicle】

Product trademark

Xiangnongda brand

Futian Xiaoka 2

National III vehicle models

Product Name

road sweeper

Product model

Vehicle models that cannot be registered

Total mass (Kg)

4495

Tank volume (m3)



Rated load capacity (Kg)

440

External dimensions (mm)

5260×1770×2320

Curb weight (Kg)

3925

Cargo size (mm)

××

Rated passenger capacity (person)



Total mass of quasi trailer (Kg)



Cab capacity (persons)

2

Maximum load capacity of saddle (Kg)



Approach Angle/Departure Angle (degrees)

18/13

Front/rear suspension (mm)

1115/1545

Axle load (Kg)

1710/2785

Maximum speed (km/h)

110

remarks

 all diesel engine, 47 horsepower, 2600 wheelbase, 600 tires, oil brake, 5-speed gearbox, using a compound engine with 42 kW and 57 horsepower to drive the fan, fan 5.2, 40-50 water pump, front flushing and rear spraying, 0.8 cubic meters of water and 2 cubic meters of dust, manual valve, stainless steel vacuum cleaner tank, front flushing and rear spraying, only adding a middle brush, with water spraying function. The vacuum cleaner is flat, and the brush is a standard configuration for vulnerable parts

 【Chassis Technical Parameters】

Chassis Model

BJ1045

Chassis name

Truck chassis

Trademark name

National III Fukuda Brand

manufacturing enterprise

Beiqi Foton Motor Co., Ltd

Number of axes

2

Number of tires

6

Wheelbase (mm)

2600,2850

Tire specifications

6.00R15 10PR

Number of steel plate springs

5+2,2/3+2

Front wheel base (mm)

1345

Fuel type

diesel oil

Rear wheel base (mm)

1292

Emission standards

National III

Engine model

Engine manufacturing enterprises

Emissions(ml)

Power (Kw)

National III

485 all diesel power



47


The working process of Roadsweepers is divided into five steps:

One is the rotation of the bottom plate and roller brush in the cleaning work mode;

The second is the left and right extension and up and down lifting motion of the disc

and roller brush;

The third is the lifting motion of the garbage bin when the vehicle is fully loaded;

The fourth is the opening and closing movement of the air vent baffle in the handheld

straw working mode;

The fifth is the hydraulic power steering motion during the turning process of the road sweeper.

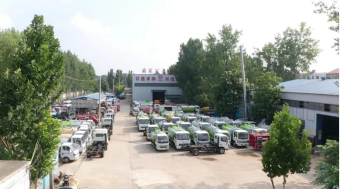

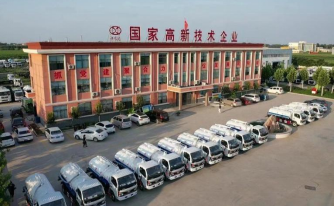

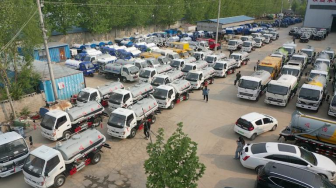

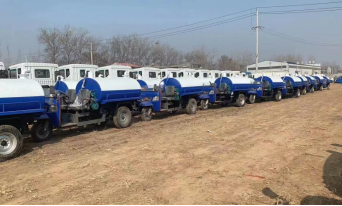

Factory photos.png Factory photos.png

Factory photos.png Factory photos.png

Factory photos.png Factory photos.png

We are the source manufacturer, trustworthy!

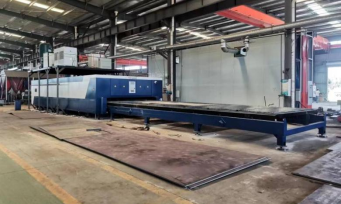

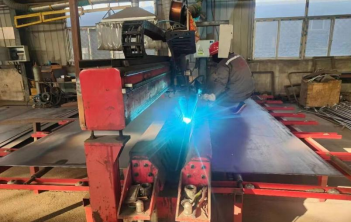

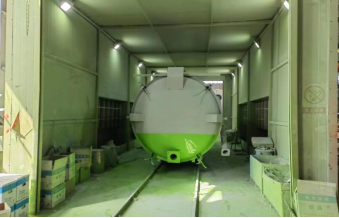

Workshop photos.png Workshop photos.png

Workshop photos.pngWorkshop photos.png

Workshop photos.png Workshop photos.png

If you purchase our product, you can find us with guarantee!
