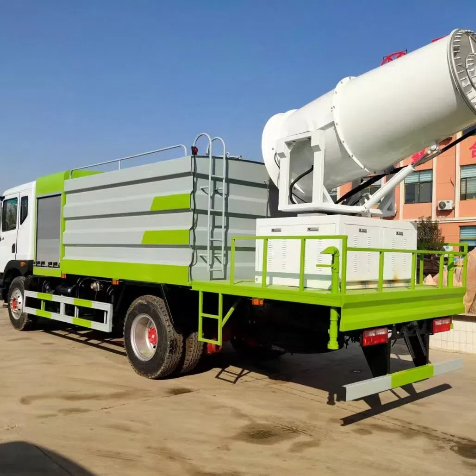

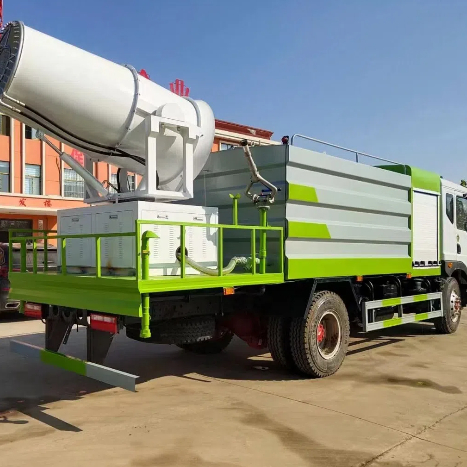

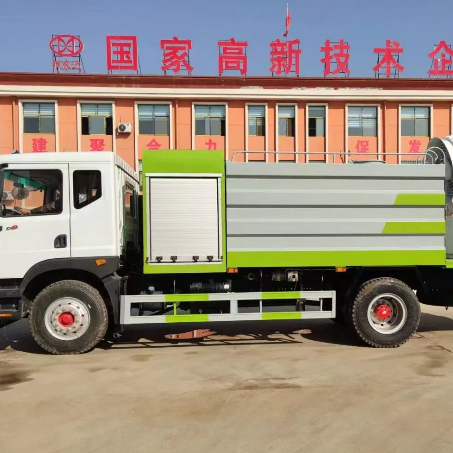

Electric Dust Suppression Vehicle
Environmental protection dust suppression vehicle High pressure spray dust suppression blasting dust suppression equipment.
Electric Dust Suppression Vehicle spray has high dust suppression efficiency.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement batch | 348 |
Product Name | Cleaning and sweeping car | Product model | SGW5180TXSEQ6 |
Total mass (Kg) | 18000 | Tank volume (m3) | |
Rated load capacity (Kg) | 6460,6395 | External dimensions (mm) | 8650×2500,2550×3100,3200 |
Curb weight (Kg) | 11410 | Cargo size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 2,3 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 17/13 | Front/rear suspension (mm) | 1260/2390 |
Axle load (Kg) | 6500/11500 | Maximum speed (km/h) | 105,89 |
remarks | The vehicle's dedicated equipment includes high-pressure flushing device, sweeping brush, and suction port, etc; Mainly used for road cleaning, garbage collection, and transportation. Side protection is replaced by a dedicated device, and the rear protection material is Q235. The connection method is welding, and the rear protection section size is 225mm × 50mm, with a ground clearance of 390mm. A speed limit device is optionally installed with the chassis, with a speed limit of 89km/h. ABS system manufacturer, model: Jiaozuo Borek Control Technology Co., Ltd., J ABS; Xiangyang Dongfeng Longcheng Machinery Co., Ltd., ABS/ASR-24V-4S/4M. Only 5000mm wheelbase is installed | ||
【Chassis Technical Parameters】 | |||
Chassis Model | EQ1185LJ9CDE | Chassis name | Truck chassis |
Trademark name | Dongfeng brand | manufacturing enterprise | Dongfeng Motor Corporation Limited |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 3600,3950,4500,4700,5000,5300,5600 | ||
Tire specifications | 295/80R22.5 18PR,10.00R20 18PR,275/80R22.5 18PR | ||
Number of steel plate springs | 8/10+7,8/- | Front wheel base (mm) | 1862,1933,1949 |
Fuel type | diesel oil | Rear wheel base (mm) | 1806,1865 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions(ml) | Power (Kw) |
CY4SK761 YCS04200-68 D4.5NS6B220 YCY30165-60 B6.2NS6B210 B6.2NS6B230 D4.0NS6B195 YCY30170-60 | Dongfeng Chaoyang Chaochai Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd Dongfeng Cummins Engine Co., Ltd Guangxi Yuchai Machinery Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Guangxi Yuchai Machinery Co., Ltd | 4087 4156 4500 2970 6200 6200 4000 2970 | 145 147 162 121 154 169 143 125 |
