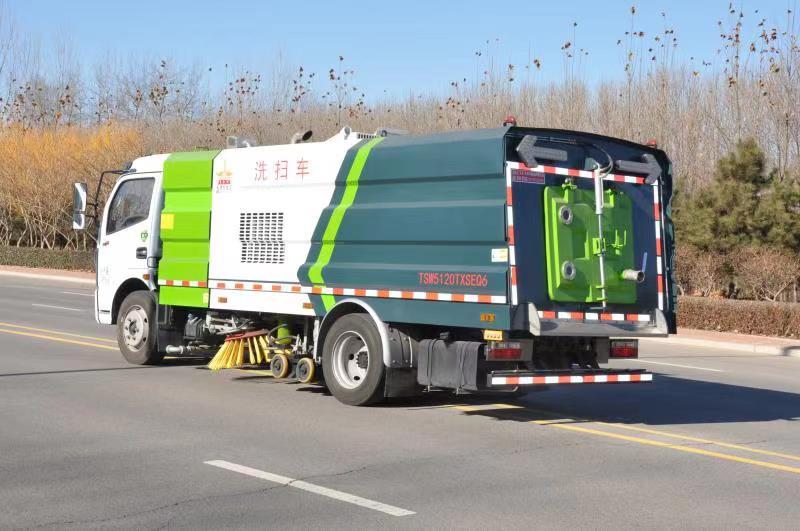

New Type Of Road Sweeper

The new type of road sweeper is a new and efficient sweeper that integrates road surface cleaning, garbage recycling, and transportation. It can be widely used for road cleaning on trunk highways, municipal and airport pavements, urban residential areas, parks, and other roads.

Contact Now E-Mail Telephone
Product Details

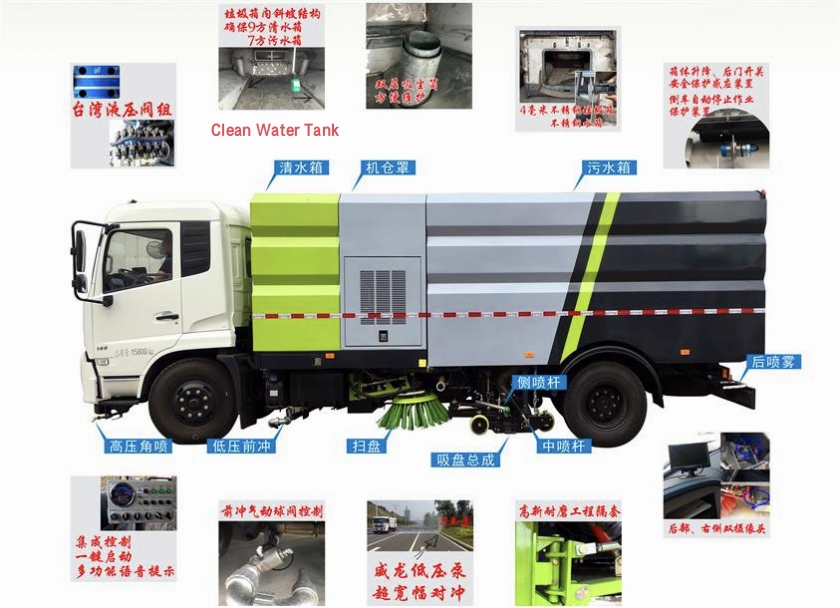

The water tank is a water storage reservoir for vehicle cleaning operations, and its capacity and material design fully consider the water demand and durability requirements in different work scenarios. Whether it is long-term road cleaning or large-scale site cleaning, it can provide stable and sufficient water supply for cleaning devices such as nozzles. The power compartment is like the "heart" of a vehicle, equipped with advanced power equipment to provide strong and reliable power support for the operation of the entire installation system, ensuring that the rotation of the sweeping disc, the suction force of the suction cup, and other mechanical actions can be efficiently and stably executed. The filtering chamber shoulders the important mission of purifying the air and preventing secondary pollution. It uses efficient filtering materials and precise filtering structures to effectively intercept dust and impurities generated during the cleaning process, ensuring that the discharged air meets environmental standards and protecting the cleanliness and freshness of the surrounding environment. As a container for storing various types of garbage and waste, the design of the garbage bin focuses on capacity, sealing, and unloading convenience. The large capacity design can reduce the number of unloading times and improve operational efficiency; Good sealing can effectively prevent garbage leakage and odor emission; The convenient unloading method has brought great convenience to operators, making garbage cleaning work easier and more efficient. The sweeping disc and suction cup are the "cleaning tools" that directly contact the vehicle with the ground garbage. The sweeping disc rotates at high speed to clean and concentrate solid garbage such as leaves, stones, and debris on the ground, while the suction cup relies on its strong negative pressure suction to suck dust, small particles, and garbage gathered by the sweeping disc into the garbage bin. The two work together to achieve comprehensive and deep cleaning of ground garbage.


1. Adopting a structure layout of a mid mounted sweeping disc and a rear mounted suction nozzle, the cleaning efficiency is high and the road adaptability is good.

2. Fully floating suction nozzle, capable of automatically leveling according to ground conditions, with high cleaning ability, fast cleaning speed, easy operation, and convenient maintenance.

3. The required bearings for the fan are imported bearings. The high-power wear-resistant high-pressure centrifugal fan has the advantages of low noise, large air volume, high efficiency, and long service life.

4. The use of a V-belt connection between the motor and the fan can effectively improve the service life of the motor.

5. The cleaning mechanism adopts oil cylinder control, with adjustable tilt angle of the swing arm disc brush, adaptive adjustment of the scanning disc grounding pressure, and automatic reset function for obstacle avoidance.

6. The lifting and lowering of the garbage bin can be controlled by a hydraulic system driven by an electric motor, or simultaneously controlled. It can also be lifted by a hand-operated oil pump. It can also be manually operated with electronic control buttons at the rear of the vehicle, making maintenance convenient.

7. The electrical system is controlled by integrated blocks, and various parameters are displayed on the LCD screen inside the cab. The display screen and the CAN bus of the motor are used for data communication. The electrical wiring harness is arranged reasonably, neat and beautiful. One click operating system inside the cab, easy to operate.

8. One click operating system in the cab, easy to operate.

9. High quality components are used for transmission parts, hydraulic parts, and electrical components. 10. Non stainless steel parts undergo rust prevention treatment, making them durable and long-lasting.

New Type Of Road Sweeper.jpgNew Type Of Road Sweeper.jpg

New Type Of Road Sweeper.jpg

【Technical parameters of the entire vehicle】

Product trademark

Xiangnongda brand

Announcement Batch

347

Product Name

Road sweeper

Product model

SGW5030TSLEQ6

Total mass (Kg)

3495

Tank volume (m3)


Rated load capacity (Kg)

1650

Dimensions (mm)

5130x1660x2200

Curb weight (Kg)

3200

Cargo compartment size (mm)

××





Rated passenger capacity (person)


Total mass of quasi trailer (Kg)


Cab capacity (persons)

2

Maximum load capacity of saddle (Kg)


Approach Angle/Departure Angle (degrees)

21/16

Front suspension/rear suspension (mm)

1181/1349,1190/1340

Axle load (Kg)

1300/2195

Maximum speed (Km/h)

100

remarks

This vehicle is used for clearing and collecting road debris and other pollutants; The dedicated device consists of a box and a cleaning device assembly. The maximum net power of engine LJ4A15Q6 is 79 kW, the maximum net power of engine DAM16KLQ is 85 kW, and the maximum net power of engine LJ4A16QG is 86 kW. ABS type

Number and manufacturer: APG3550500A, Zhejiang Asia Pacific Electromechanical Co., Ltd., optional ABS manufacturer and model: Xiangyang Dongfeng Longcheng Machinery Co., Ltd./ABS/ASR-12V-4S/4M. Optional front face mask, front combination lighting fixtures, optional front grille design, and new front bumper along with the chassis. Only use chassis with a wheelbase of 2600mm

【Chassis Technical Parameters】

Chassis Model

EQ1035SJ16QC

Chassis name

Truck chassis

Trademark name

Futian brand

manufacturing enterprise

Beiqi Foton Motor Co., Ltd

Number of axes

2

Number of tires

6,4

Wheelbase (mm)

2600,2800,3000,3200,2700,3300,2850,2900,3180,3600

Tire specifications

175R14LT 8PR,185R15LT 8PR,185R14LT 8PR,175R14LT 6PR,185R15LT 6PR,185R14LT 6PR,195R14C 8PR

Number of steel plate springs

3/5,6/7,9/8+4,3/5+2

Front wheel base (mm)

1369,1400,1434

Fuel type

gasoline

Rear wheel base (mm)

1214,1314,1242,1342,1355

Emission standards

GB18352.6-2016 National VI

Engine model

Engine manufacturing enterprises

Emissions(ml)

Power (Kw)

DAM16KLQ

LJ4A15Q6

LJ4A16QG

Harbin Dong'an Automotive Power Co., Ltd

Liuzhou Wumei Liuji Power Co., Ltd

Liuzhou Wuling Liuji Power Co., Ltd

1597

1499

1590

122

113

125
